10.0 Parts List

When ordering Parts, please provide the Hoist code number located on the Hoist nameplate (see fig. below).

Reminder: Per

Sections 3.12.6

and

1.1

to aid in ordering Parts and Product Support, record the Hoist code number and

serial number in the space provided on the cover of this manual.

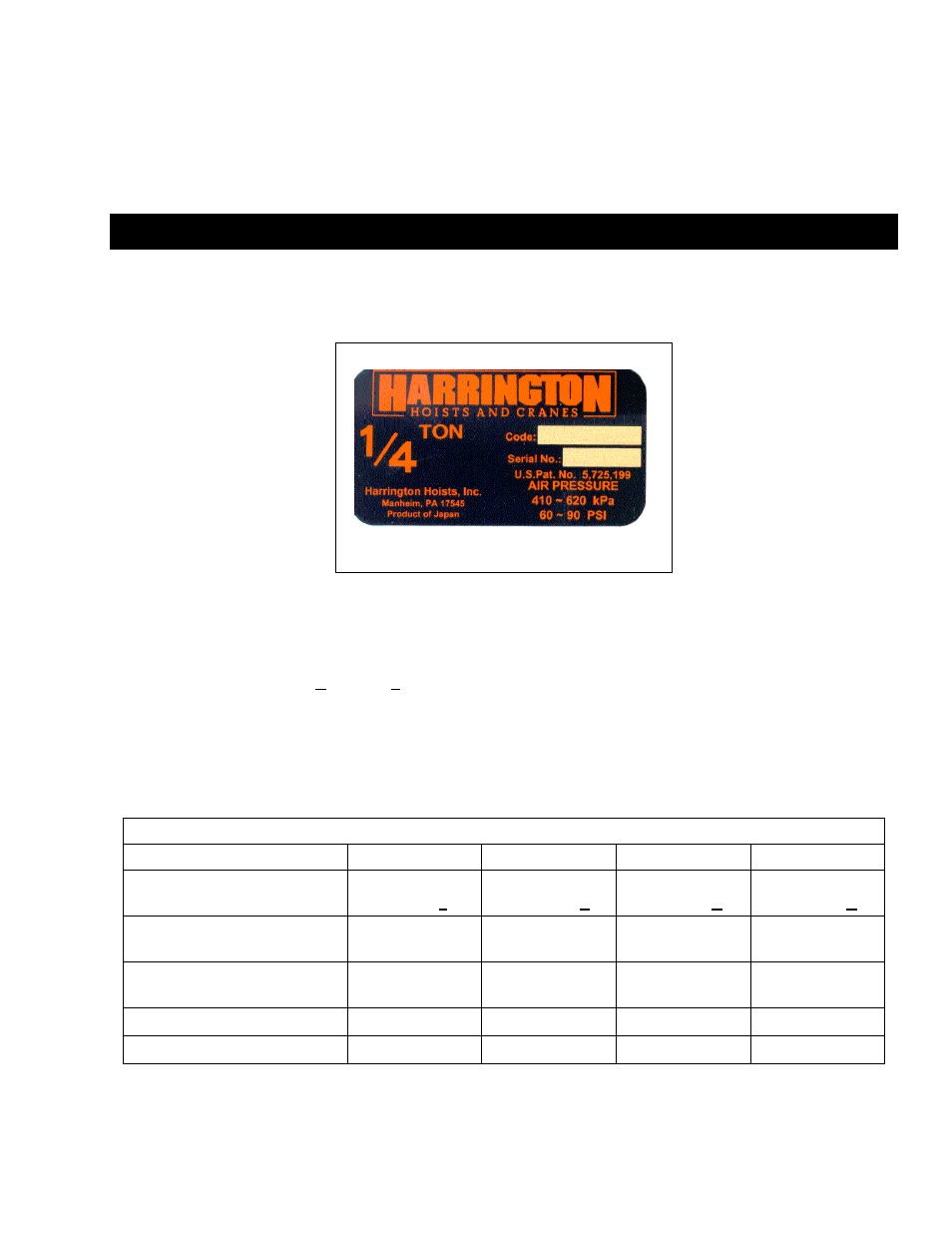

TCR Nameplate

Parts lists for the TCR Air Hoists are presented in this section and are subdivided for reference in

Figures 10-1

through

10-6

The letters C and P designate "Cord" and "Pendant" controlled hoists. Hoists with 2 parts or falls of load chain have a "-
2" designator following the model number.

Certain hoists parts in the following parts list are identified by hoist version 1, A, B or C. Use

Table 10-1

to determine the

hoist version and select the correct hoist part(s).

Table 10-1

Hoist Version Identification Chart

Item

Version 1

Version A

Version B

Version C

Last digit of the Serial Number:

Numerical digit

(ex. BL182)

"A"

(ex. MD165A)

"B"

(ex. DF124B)

"C"

(ex. KE189C)

Limit Shaft Attachment Method:

External

Retaining Ring

Hairpin Cotter

and Washer

Hairpin Cotter

and Washer

Hairpin Cotter

and Washer

Pendant Hose Connections:

Hose Barb

5mm thread

Hose Barb

5mm thread

90° Tube Fitting
1/8" pipe thread

Side Cover Thickness:

1/2"

7/8"

Chain Springs

Yes
