10

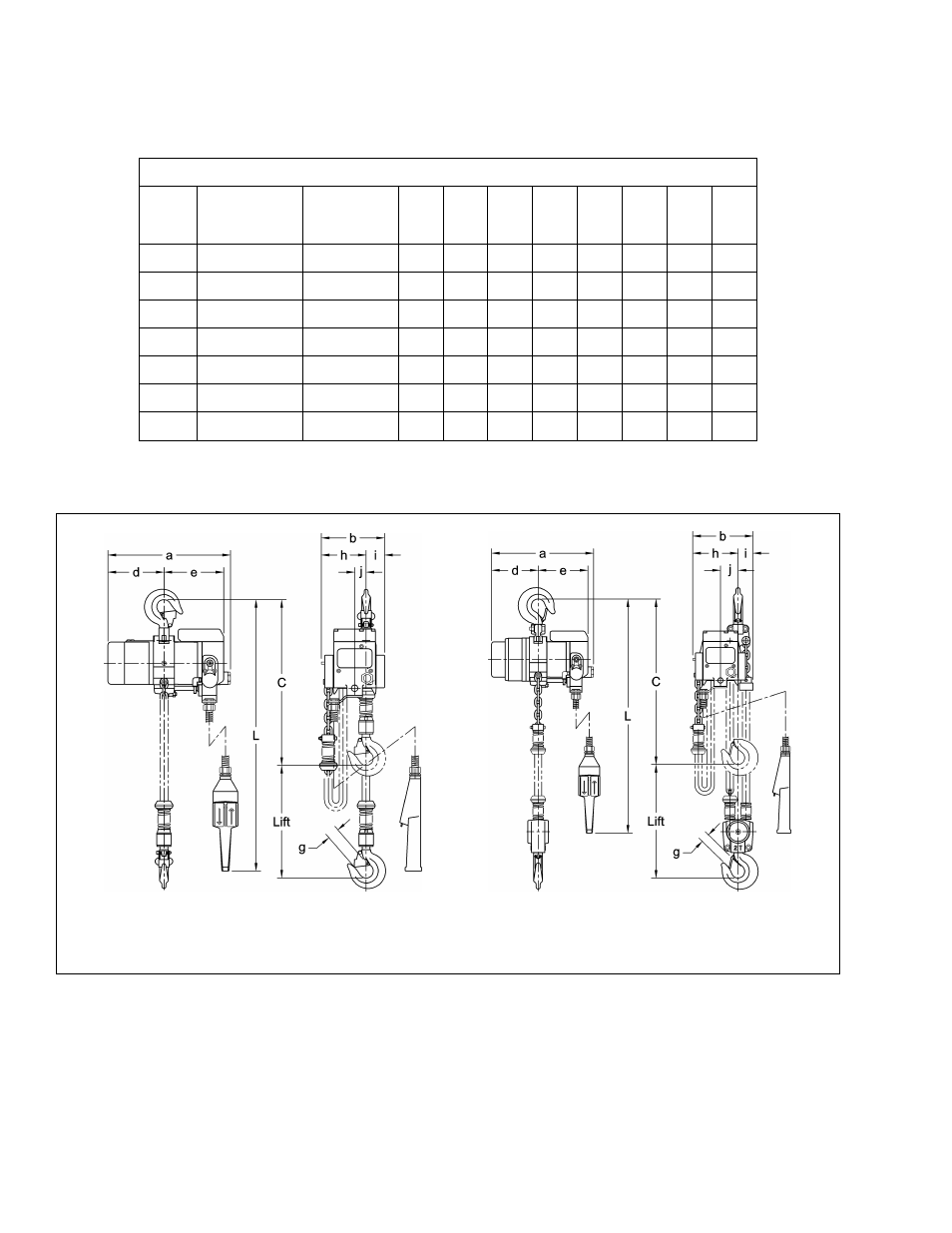

Table 2-3 TCR with Pendant Control Dimensions
Cap.
(Tons)
Product
Code
Headroom
C
(in)
a
(in)
b
(in)
d
(in)
e
(in)
g
(in)
h
(in)
i
(in)
j
(in)
1/4 TCR250P 18.2 13.4 6.9 6.1 6.6 1.1 4.9 2.0 1.3
1/2 TCR500P 18.2 13.4 6.9 6.1 6.6 1.1 4.9 2.0 1.3
1 TCR1000P2 20.4 13.4 7.3 6.1 6.6 1.1 5.9 1.5 2.2
1 TCR1000P 18.3 13.4 6.9 6.1 6.6 1.1 4.9 2.0 1.3
2 TCR2000P2 21.8 13.4 7.6 6.1 6.6 1.1 6.0 1.6 2.3
3 TCR3000P 22.2 17.7 8.9 8.0 9.0 1.3 1.9 6.9 1.7
6 TCR6000P2 26.5 17.7 11.1 8.0 9.0 1.7 2.5 2.5 3.4
Single Fall Hoist Double Fall Hoist
Figure 2-1 Pendant Model TCR (See Table 2-3 )
