Harrington Hoists and Cranes TCS Hoist User Manual
Page 39
39

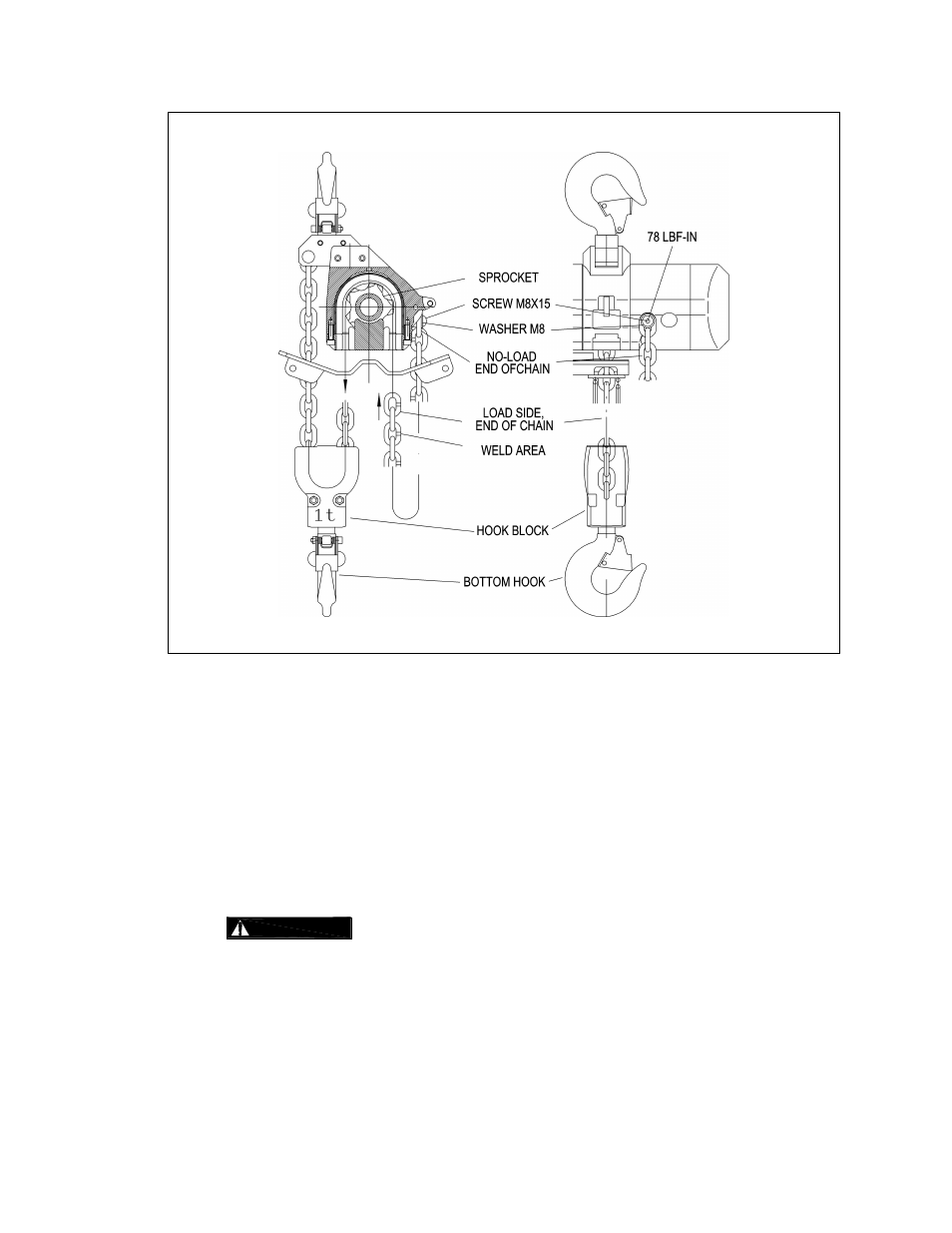

Figure 7-4
Double Fall Chain Connections
7.3
Pendant
7.3.1
The following procedure covers the installation of the Pendant Hose (Parts List Figure Number 360)
and the Pendant Valve. Refer to
Figure 7-5
.
1) Place boot on the ends of the Pendant Hoses to be attached to the Manifold Block on the hoist.
2) Attach pendant hose to hoist body using the one-piece fittings and screw type clamps (hose bands).
3) Attach pendant hoses to the pendant valve using the 2 piece fittings and crimp type hose clamps (hose
bands). Refer to
Figure 7-5
for the correct placement of the Hoses.
4) Attach the Strain Relief wire S-Hook on the Pendant Valve and Manifold Block using the S-Hook.
5) Slide the Boot in to place over the Hose Fittings at the Manifold Block on the hoist.
6)
Operate hoist and make sure the direction of hook travel agrees with the control
levers on the Pendant Valve.
