2.2

Dimensions

Table 2-2

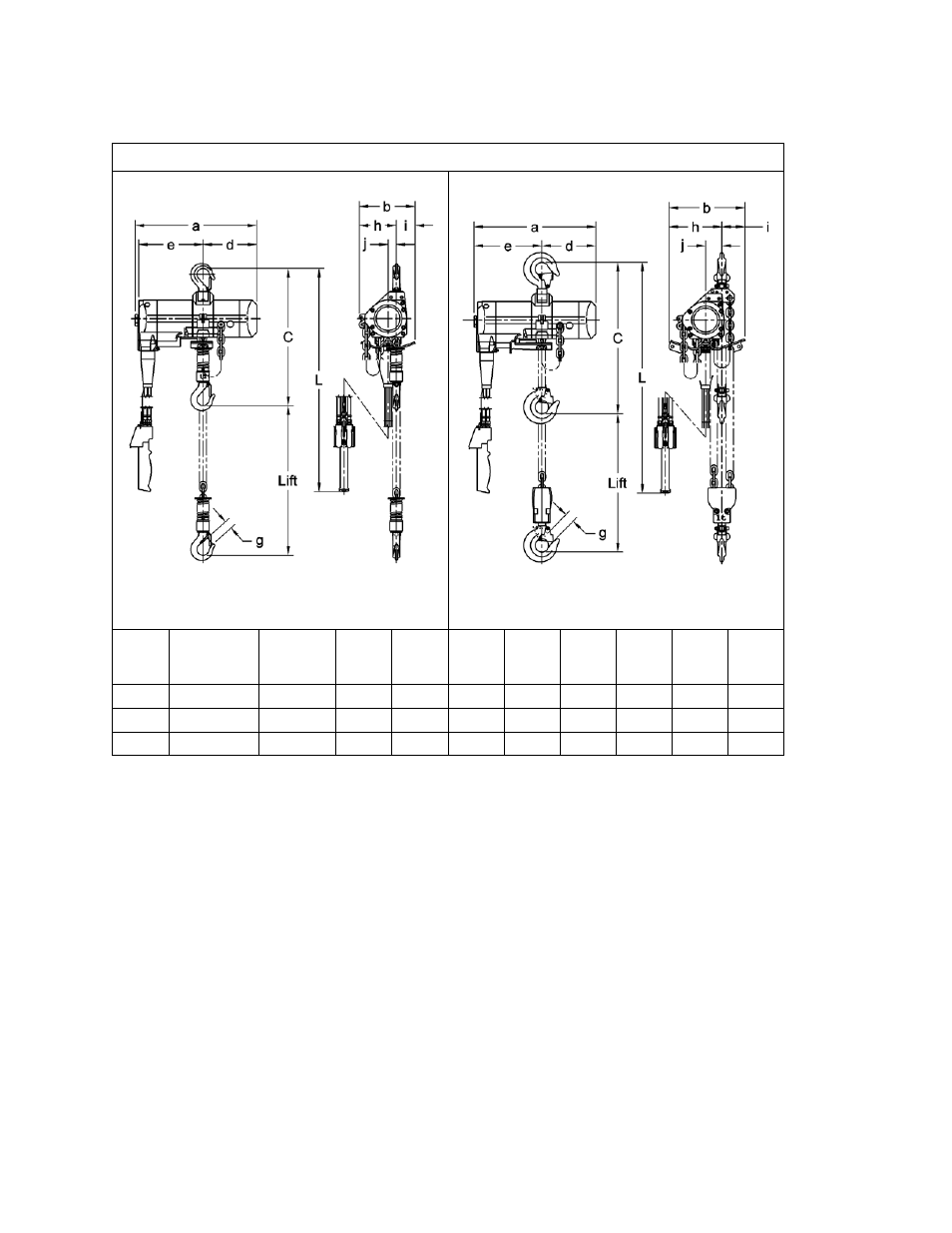

TCS with Pendant Control Dimensions

Single Fall Hoist

Double Fall Hoist

Cap.

(Tons)

Product

Code

Headroom

C

(in)

a

(in)

b

(in)

d

(in)

e

(in)

g

(in)

h

(in)

i

(in)

j

(in)

1/4

TCS250P

16.3

14.4

6.6

6.3

7.6

1.0

4.4

2.2

1.0

1/2

TCS500P

16.3

14.4

6.6

6.3

7.6

1.0

4.4

2.2

1.0

1

TCS1000P2

17.9

14.4

9.0

6.3

8.0

1.1

6.3

2.8

1.9
