Figure 3-2 Typical Air Supply Filter, Regulator, and Lubricator.
3.6.2

Piping - Pipe should be sized to accommodate the hoist airflow requirements.
Table 3-1 gives recommended pipe sizes.
Table 3-1 Air Supply Pipe and Hose Sizes
Model Diameter of Supply Pipe Diameter of Supply Hose
TCS250C/P
TCS500C/P
TCS1000C2/P2
Inside diameter
3/4” or larger
Inside diameter
1/2” or larger
3.6.3

Hoses - The connection from the air supply system piping to the hoist must be
made with a flexible pressure hose. Due to normal line losses in air supply lines:
 Do not use hose smaller than specified in Table 3-1 , and
 Limit the length of the hose to that specified in Figure 3-3 .
If your application exceeds these requirements consult factory.

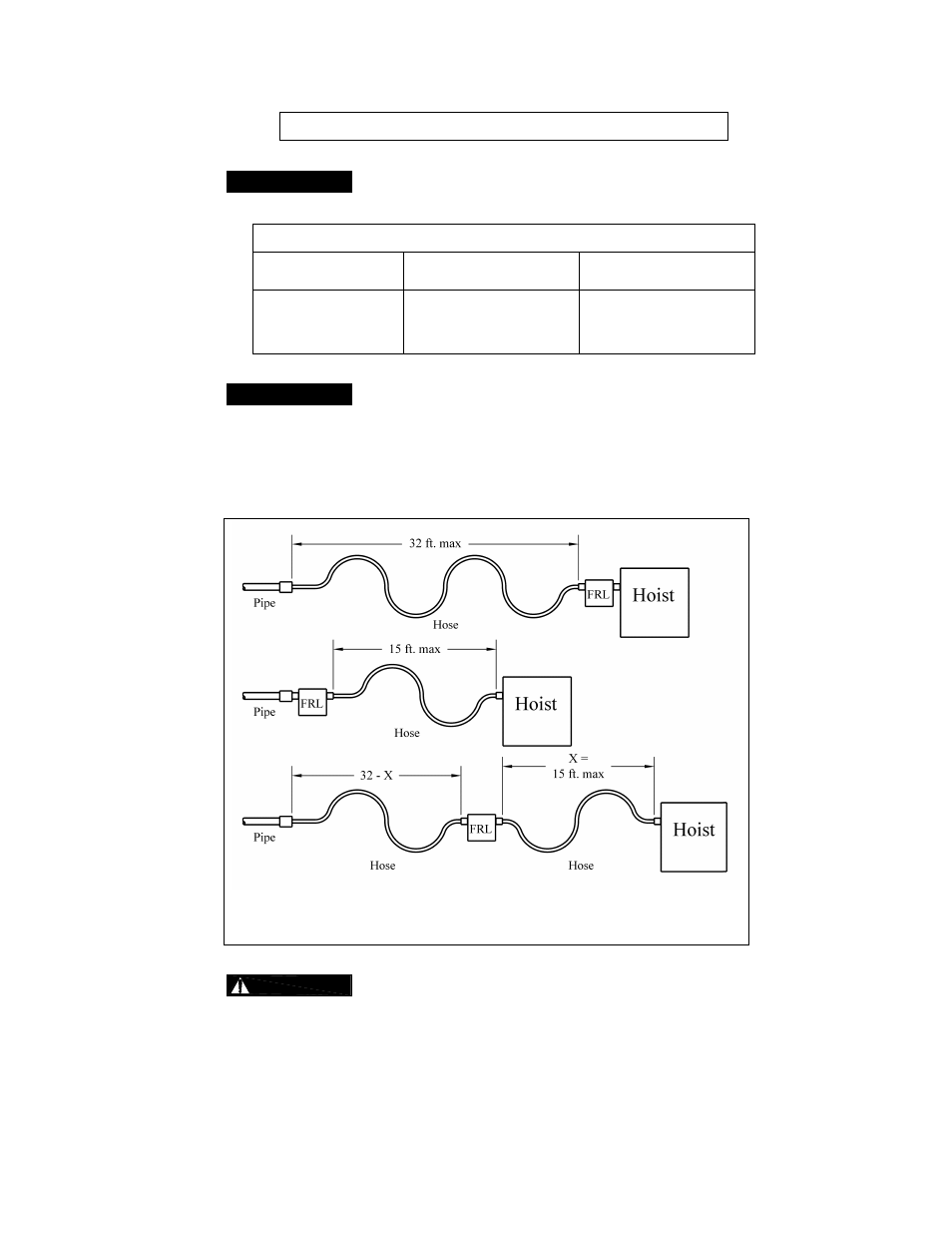

Figure 3-3 Typical Arrangements of Filter, Regulator and Lubricator and
Maximum Air Supply Hose Lengths
3.6.4

Fittings - Important considerations regarding fittings in the hoist's air supply
include:
 When connecting air supply components, remove all dirt or debris from the connecting surfaces of
the hoses, pipes, fittings, or threaded fasteners to prevent contaminants from entering the hoist.
 Keep airflow restrictions such as quick disconnect fittings, bends, elbows, and adapters to a
minimum.
