33

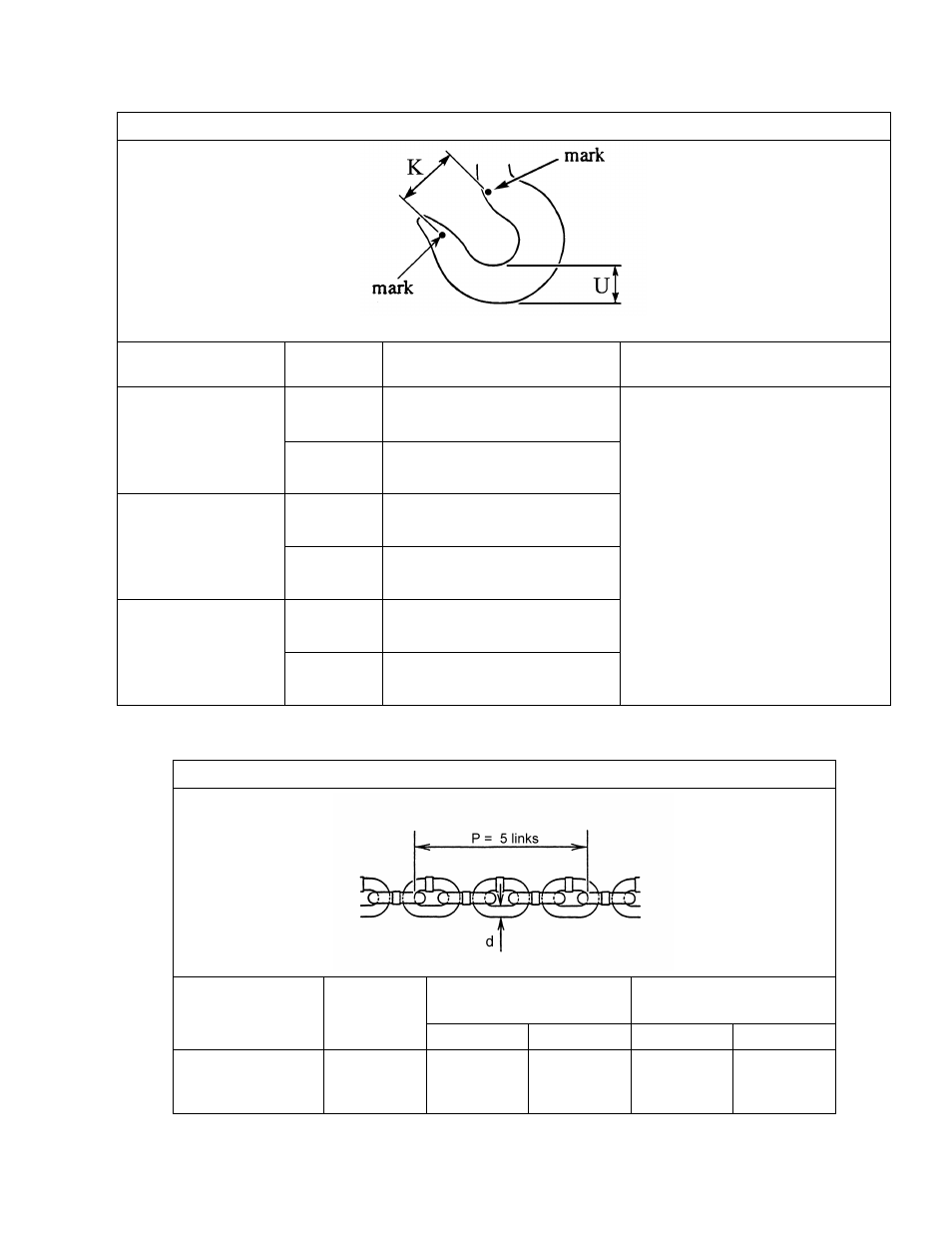

Table 5-6 Top Hook & Bottom Hook Dimensions
Dimensions K and U should be measured and recorded below prior to any use when the hook is first placed into service.
Hoists
Parts View
Figure No.
Recorded Dimension
When New
Maximum/Minimum Value
for Replacement
TCS250C2/P2
2-1
Top Hook K = _______________
Top Hook U = _______________
For K if the measured dimension
exceeds 1.05 times the recorded new
dimension, the hook should be
replaced.
For U if the measured dimension is
less than .9 times the recorded new
dimension, the hook should be
replaced.
2-1
Bottom Hook K = ____________
Bottom Hook U = ____________
TCS500C2/P2
2-1
Top Hook K = _______________
Top Hook U = _______________
2-1
Bottom Hook K = ____________
Bottom Hook U = ____________
TCS1000C2/P2
2-2
Top Hook K = _______________
Top Hook U = _______________
2-2
Bottom Hook K = ____________
Bottom Hook U = ____________
Table 5-7 Chain Dimensions
Product Code
Parts View
Figure No.
“P” Dimension
inch (mm)
“d” Dimension
inch (mm)
Standard Discard Standard Discard
TCS250C2/P2
TCS500C2/P2
TCS1000C2/P2
114 3.76 (95.5) 3.82 (96.9) 0.25 (6.3) 0.22 (5.7)
