2.2

Dimensions

Table 2-2 Hoist Dimensions

Cap.

(Tons)

Product

Code

Headroom

c

(in)

a

(in)

b

(in)

d

(ft)

e

(in)

f

(in)

g

(in)

1/2

CF005

12.8

5.4

5.9

10

2.0

2.4

1.1

1

CF010

14.6

5.8

6.9

10

2.3

2.9

1.1

1 1/2

CF015

17.3

6.0

8.0

10

2.4

3.4

1.3

2

CF020

20.1

5.8

8.0

10

2.3

2.3

1.4

3

CF030

23.2

6.0

9.4

10

2.4

2.7

1.7

5

CF050

24.4

6.0

13.5

10

2.4

4.5

1.8


CF005 to CF015

CF020 to CF030

CF050

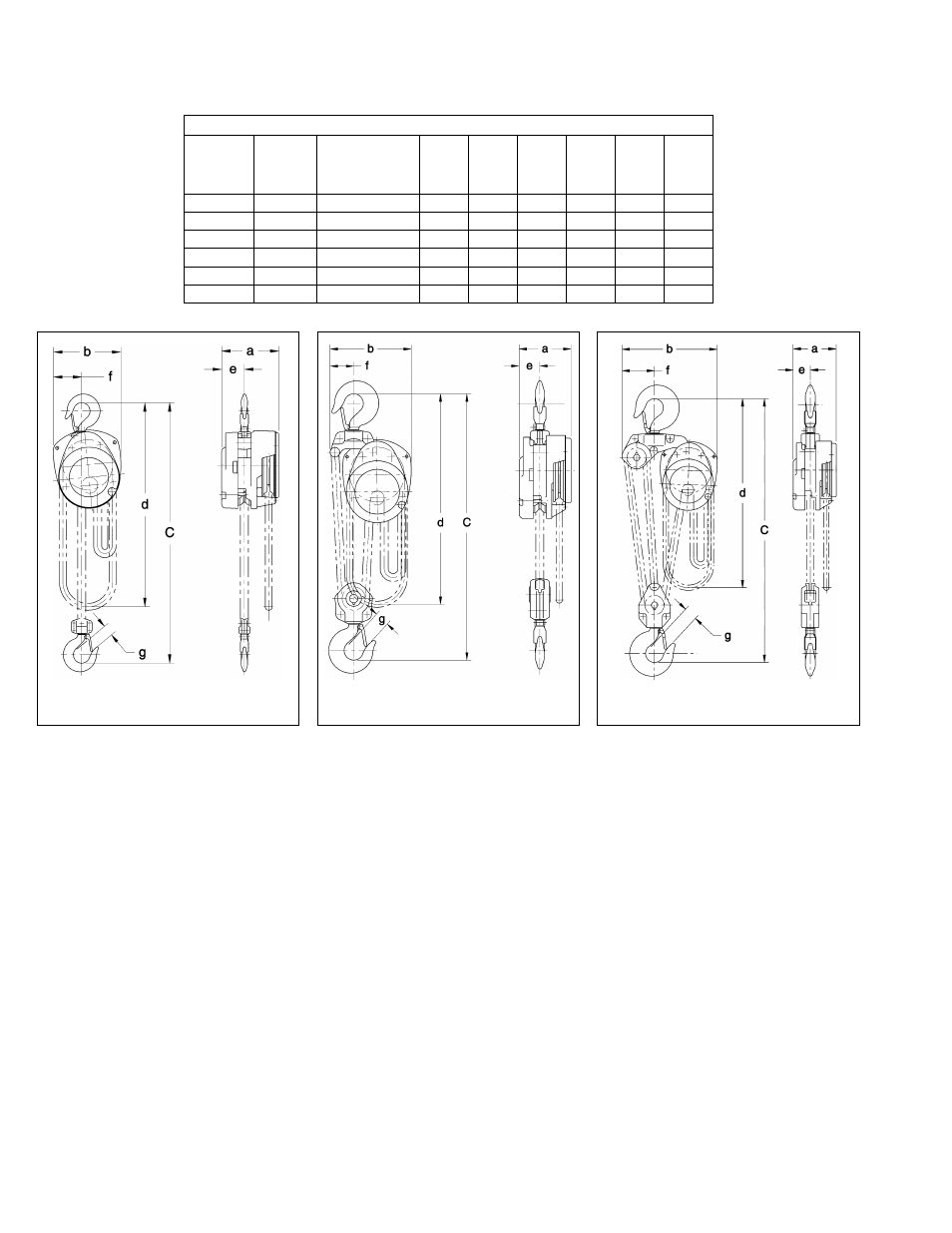

Figure 2-1

Figure 2-2

Figure 2-3
