53
Install Crescendo/L2 Processor Upgrade Card
1. Remove the Crescendo/L2 card from the anti-static package making
sure to handle the card by the edges (Figure 5). Your card may
differ from what is pictured below.
2. Align the Crescendo/L2 card over the L2 Cache Slot (Figure 6).
Gently press down until the card is firmly seated.
3. If you removed a Level 2 cache card from the computer, package it
into the Crescendo’s anti-static package and store it in a safe place.
StarMax 3000 Installation

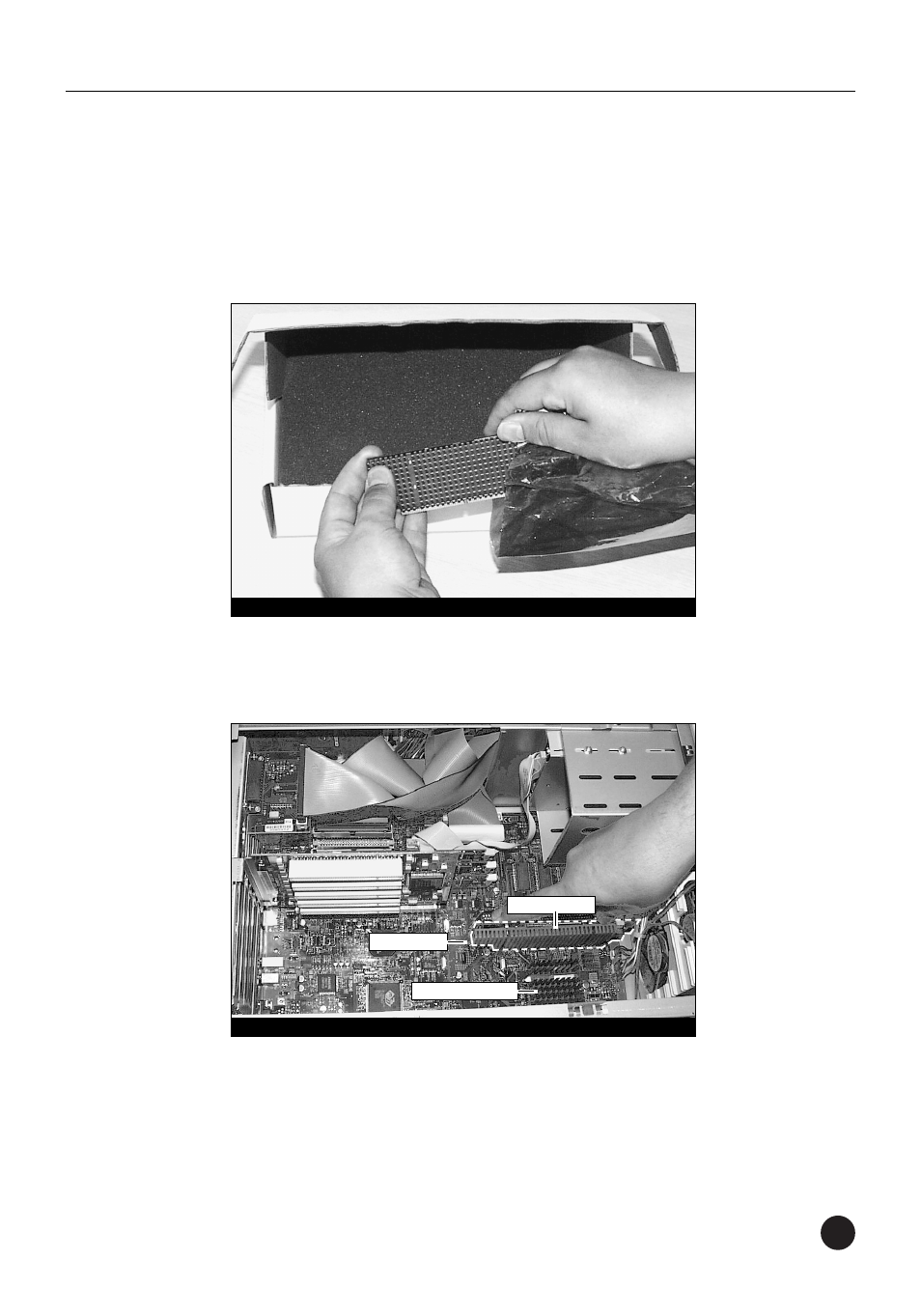

Figure 6: Install Crescendo/L2 card into L2 Cache Slot
CPU (with heatsink)
L2 Cache Slot
Crescendo card
Figure 5: Remove Crescendo/L2 card from packaging
