38
Chapter 5
Install Crescendo/L2 Processor Upgrade Card
1. Remove the Crescendo/L2 card from the anti-static package making
sure to handle the card by the edges (Figure 3). Your card may
differ from what is pictured below.
2. Install the Crescendo/L2 card into the L2 Cache Slot (Figure 4).
Firmly press down until the card is completely seated. (Note:
The heatsink may touch a wide DRAM DIMM, but this will cause
no harm.)
3. If you removed a Level 2 cache card from the computer, package it
into the Crescendo’s anti-static package and store it in a safe place.

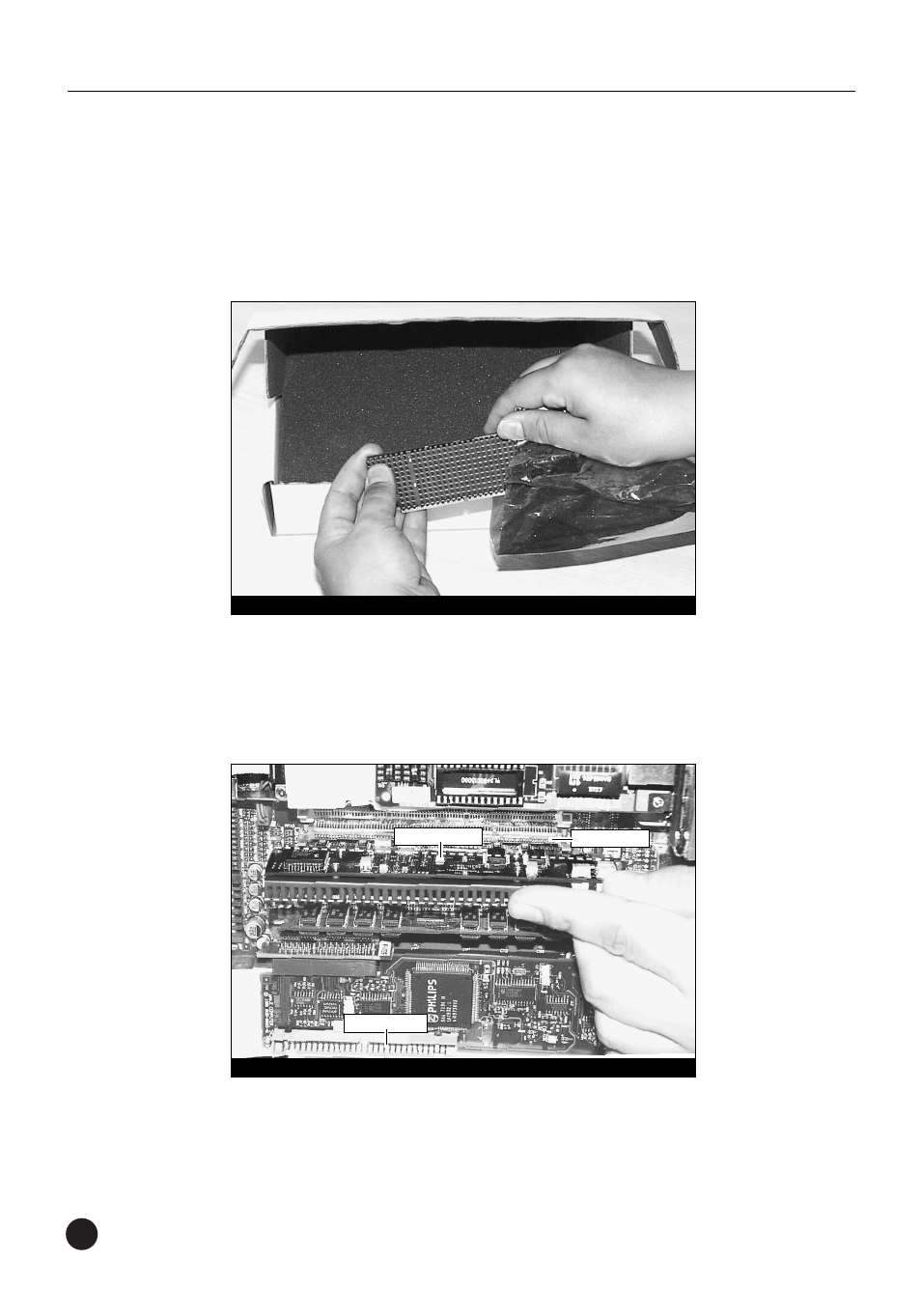

Figure 4: Install Crescendo card into L2 Cache Slot
DAV connector
Figure 3: Remove Crescendo/L2 card from packaging
Crescendo card L2 Cache Slot
