20th Anniversary Macintosh Installation
2. Open your computer as follows:
• Thin-profile cover – Push the two latches in at the bottom of the
cover and lift up.
• Larger expansion cover – Push up at the bottom of the cover and
lift it away from the computer (Figure 1).
3. Touch any metal on the back of the computer to discharge any
potentially damaging static electricity.
Remove the Level 2 Cache Card
Remove the Level 2 cache card. It is located directly above the DRAM
(memory) DIMM slots and DAV connector (Figure 2).

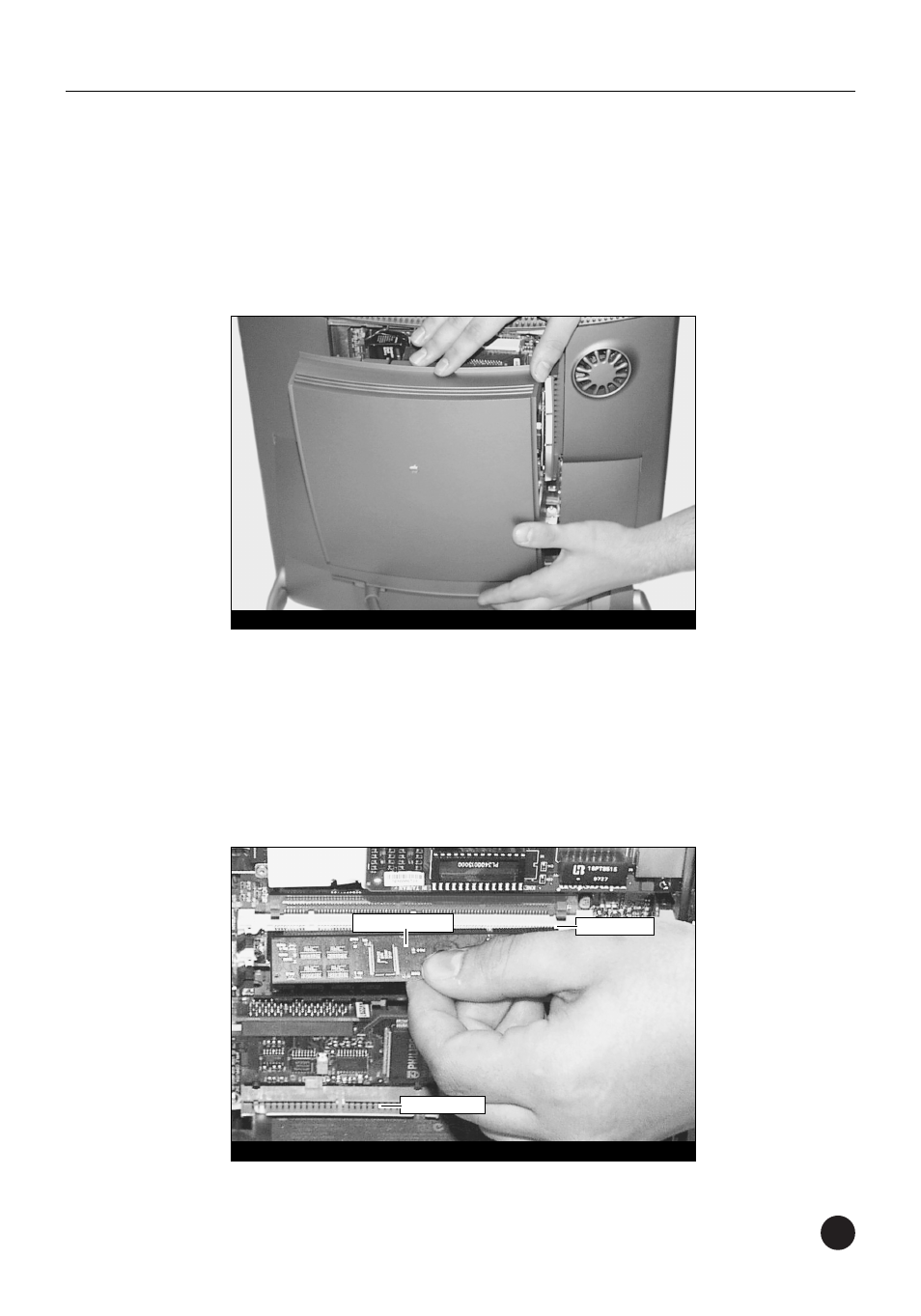

Figure 1: Remove back cover from computer
Figure 2: Remove Level 2 cache card
DAV connector
Level 2 cache card L2 Cache Slot
