4. With light finger pressure, hold the Encore
level in the ZIF socket and lower the ZIF socket
lever by pressing down until the lever hooks
under the side tab on the ZIF socket (Figure 9).
Reattach Heatsink
Reattach the heatsink (Figure 10). Place the metal
latch along the indented center of the heatsink.
Secure the heatsink by attaching one end of the
metal latch to one of the small ZIF socket tabs.
Attach the other end of the metal latch; it will
snap into place on the ZIF socket tab.
Close Computer
1. Raise internal assembly stand (Figure 11).
2. Rotate and lower the internal assembly back
into the computer’s case (Figure 12).
En
4-7

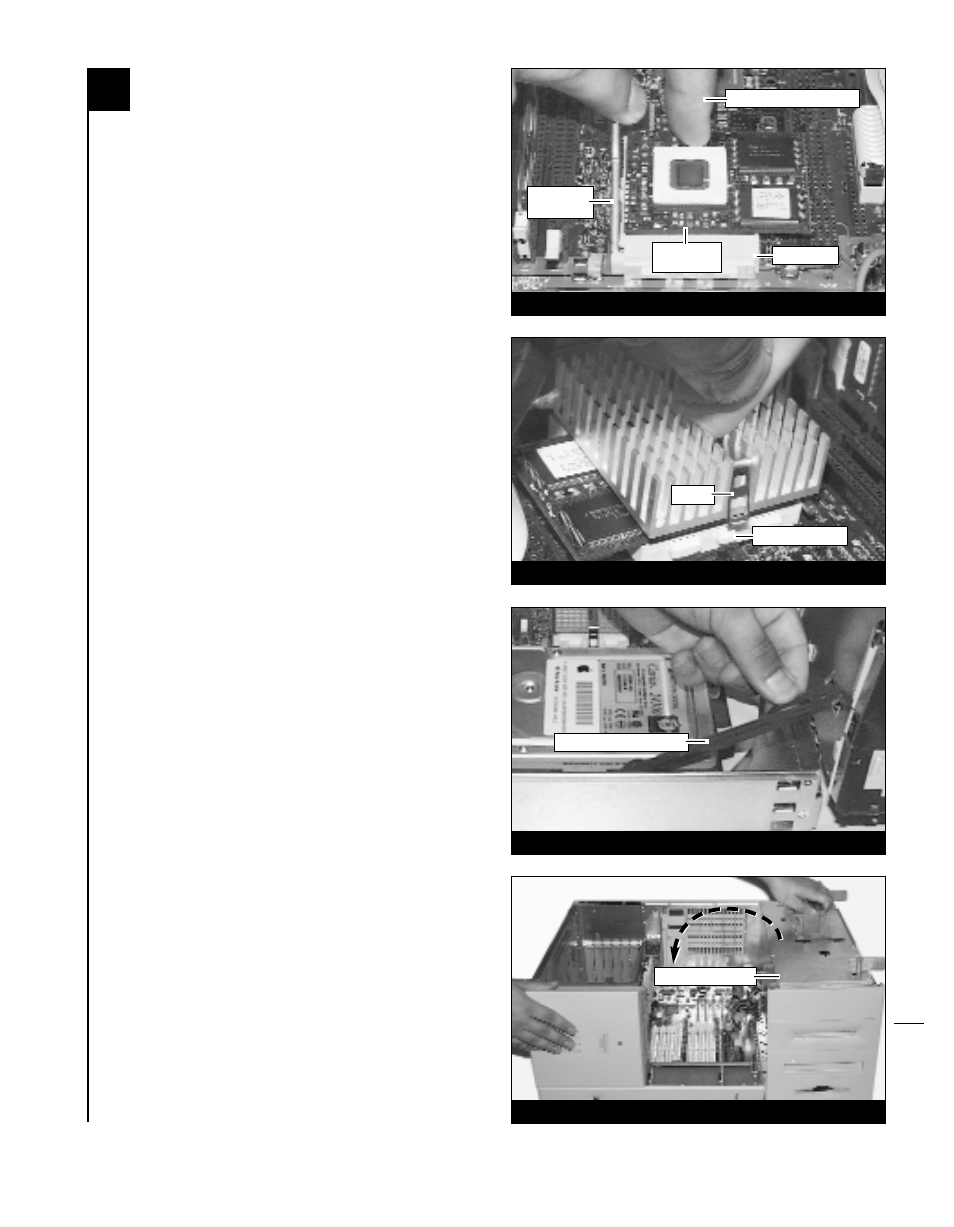

Figure 9; Figura 9
ZIF socket
lever
use light finger pressure
Figure 10; Figura 10
ZIF socket tab
latch
Figure 11; Figura 11
internal assembly stand
Figure 12; Figura 12
ZIF socket Encore/ZIF
card
internal assembly
