Reattach Heatsink
Reattach the heatsink. Place the metal latch along
the indented center of the heatsink. Secure the
heatsink by attaching one end of the metal latch to
one of the small ZIF socket tabs. Attach the other
end of the metal latch; it will snap into place on
the ZIF socket tab (Figure 21).
Reattach Logic Board Cables
1. Reattach the logic board cables to their appro-
priate connectors on the logic board. The cables
should be reconnected in reverse order:
• Logic board power cable
• Secondary SCSI cable
• Main SCSI cable
• Internal drive(s) power cable
2. Reconnect the logic board power cable
(Figure 22).
3. Reconnect the secondary SCSI cable
(Figure 23).
4. Reconnect the main SCSI cable (Figure 24).
En
1-10

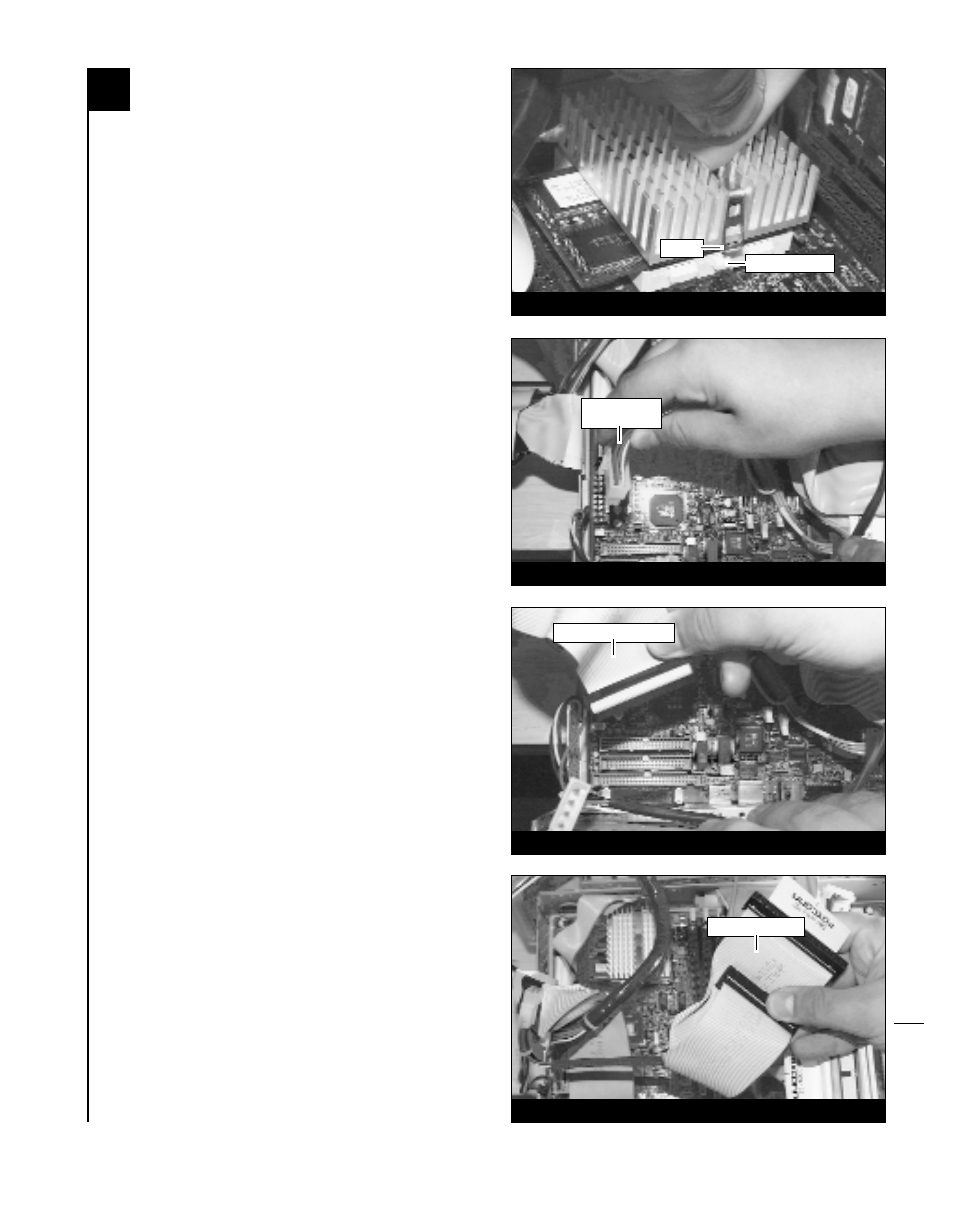

Figure 21; Figura 21
ZIF socket tab
latch
Figure 22; Figura 22
logic board
power cable
Figure 23; Figura 23
secondary SCSI cable
Figure 24; Figura 24
main SCSI cable
