4. While using light finger pressure, hold the
Encore/ZIF level in the ZIF socket and lower the
ZIF socket lever by pressing down until the lever
hooks under the side tab on the ZIF socket
(Figure 9).
Reattach Heatsink
Reattach the heatsink (Figure 10). Place the metal
latch along the indented center of the heatsink.
Secure the heatsink by attaching one end of the
metal latch to one of the small ZIF socket tabs.
Attach the other end of the metal latch; it will
snap into place on the ZIF socket tab.
Close Computer
1. Raise the cover back into place (Figure 11).
2. Return the computer to your computing area
and reconnect the power and peripheral cables
to the computer.
Turn On Computer
1. Turn on your Power Macintosh. Your newly
accelerated machine should boot as normal.
2. If you are installing an Encore/ZIF G4, see
Chapter 6, “Upgrading to Mac OS 9.x and a
G4” for information about enabling AltiVec
extensions in Mac OS and application software.
En
5-7

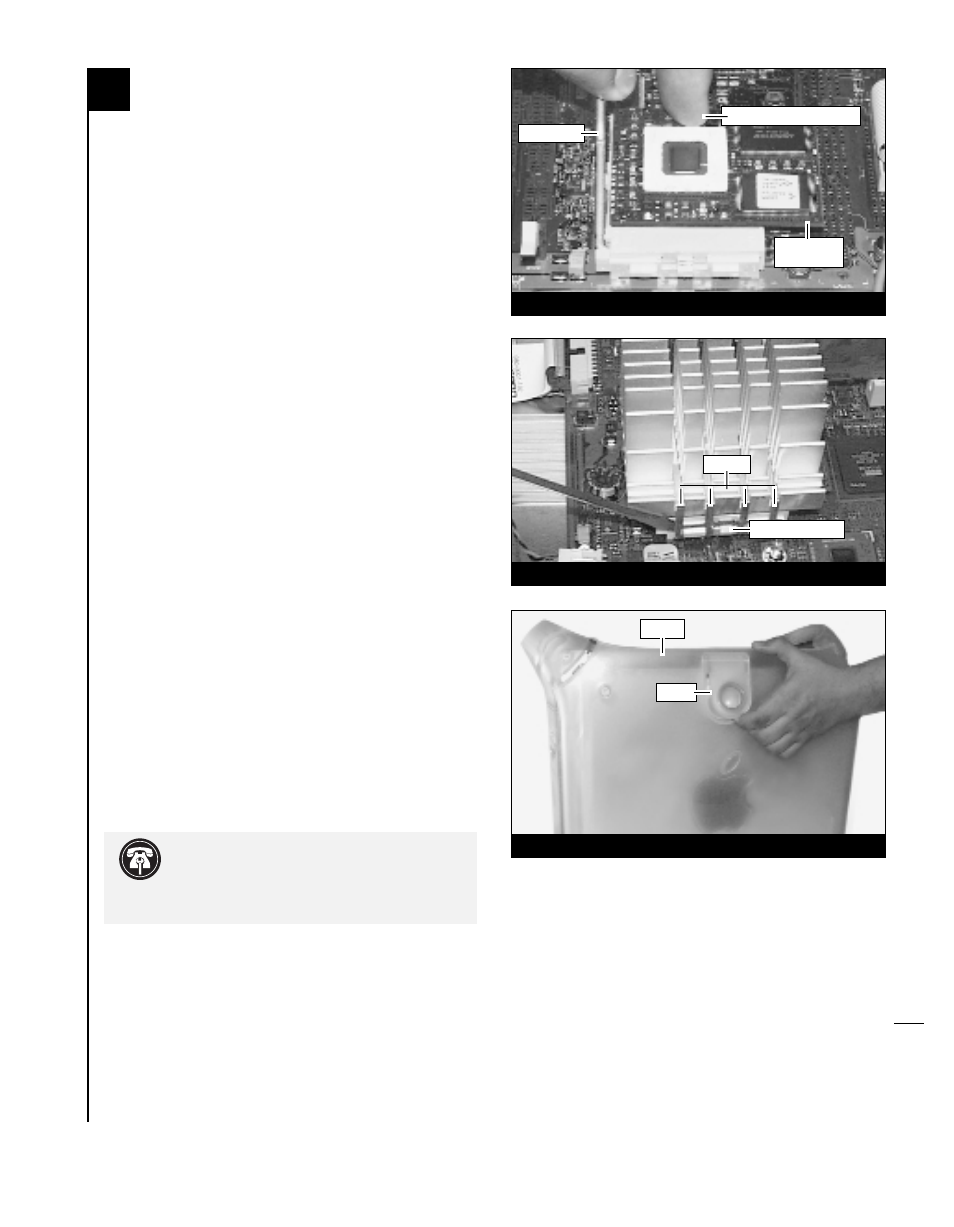

Figure 9; Figura 9
use light finger pressure
Figure 10; Figura 10
ZIF socket tab
latch
Figure 11; Figura 11
Support Note: Your computer must be
upgraded with a G4 processor in order to
take advantage of AltiVec-enhanced applications
and software.
ZIF socket
latch
Encore/ZIF
card
cover
