Page 2

(300-485)

1/2” Button Head

Screw

12x

(301-360)

Mounting Screw

Installing Gear Forward

For Small Segment Use Behind Door

Install brackets away from door hinges.

NOTES

CABINET

FRONT

< 300-485 or

300-518

300-560 >

Note: Use the front
side channel for
Chameleon Cabinets

300-565 >

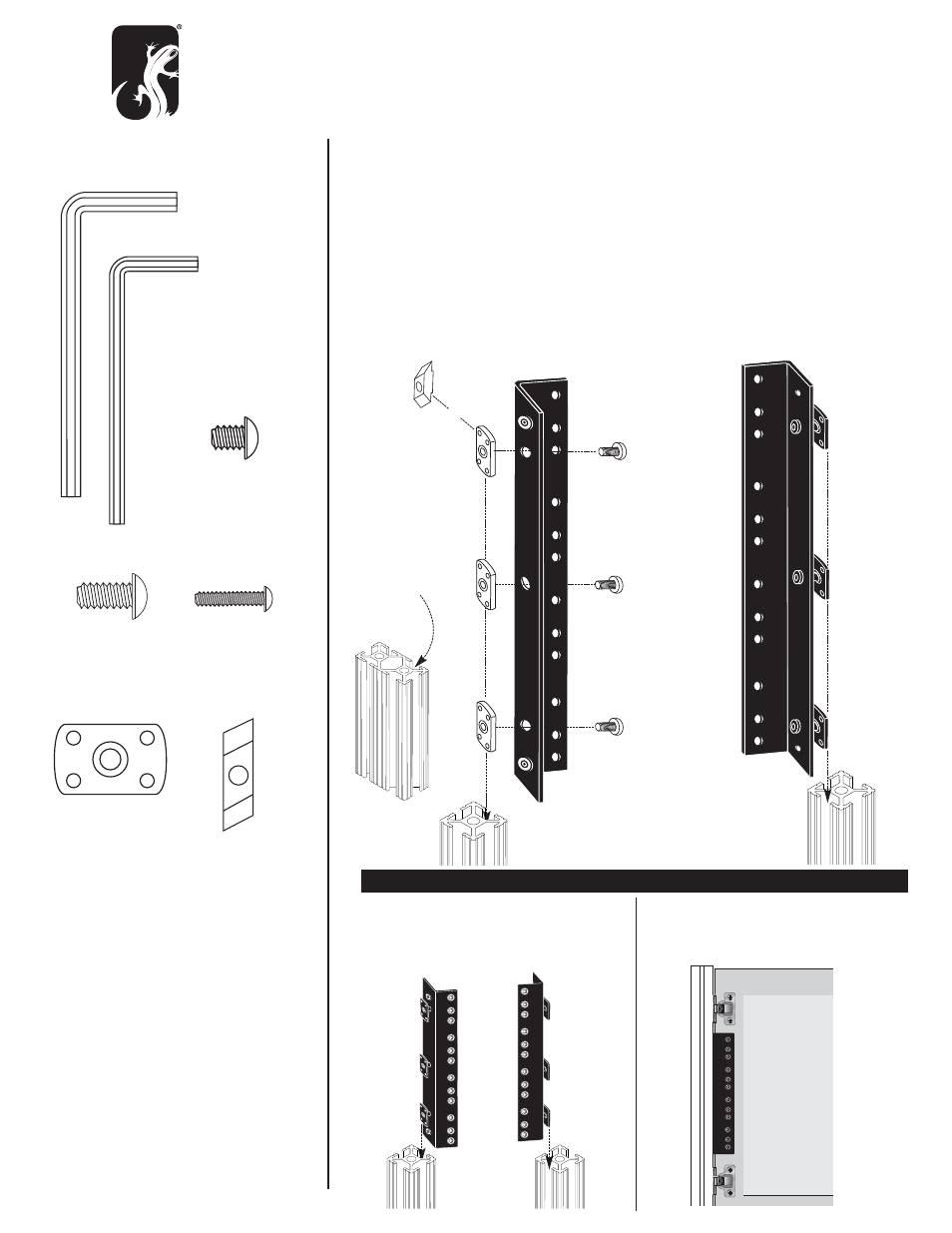

For Installing in Synergy Cabinets:
Place the 1/2” Button Head Screw (300-485) in the holes of each bracket and attach loosely
with Flat Nut. Note: For assembled cabinets use the Drop-In Nut in place of the Flat Nut.
For Installing in Chameleon Cabinets:
Use the Drop-In Nuts (300-565) and the shorter 3/8” Button Head Screws (300-518).
Insert Flat Nut s or Drop-In Nuts into the channels (Use the Front Side Channel for
Chameleon). Secure screws with Hex Key.
Use standard 10-32 mounting screws to mount equipment on rack rails.
For 15U & 21U Rails, attach header panel at the top of the rack rail.

C
D

(300-560) - Flat Nut

(300-565)

Drop-In Nut

5/32” Hex Key - (400-080)

1/8” Hex Key - (400-070)

Limited Warranty

For five full years Salamander Designs Ltd. will repair or
replace, at our option, any product defective in materials
or craftsmanship. Salamander Designs Ltd. will not be
responsible for any damage to or destruction of other
equipment consequential to our equipment failure. Defective
product must be given Return Authorization and is to be
returned to the factory prepaid, in the original carton and
packing material. Any damage incurred in a shipment not
in original packaging shall be the responsibility of the owner.
Warranty repairs will be returned prepaid, via UPS within
the continental U.S.A. only.

www.SalamanderDesigns.com

800-535-5659

(300-518)

3/8” Button Head

Screw

Rack rails may also be installed with the
flange forward in applications the door is
not desired and additional cabinet depth is
needed.

SYNERGY

RACK MOUNT

OPTION: INSTALLING GEAR FORWARD

Rack rails may also be installed with the flange forward in applications the door is not
desired and additional cabinet depth is needed.
