3

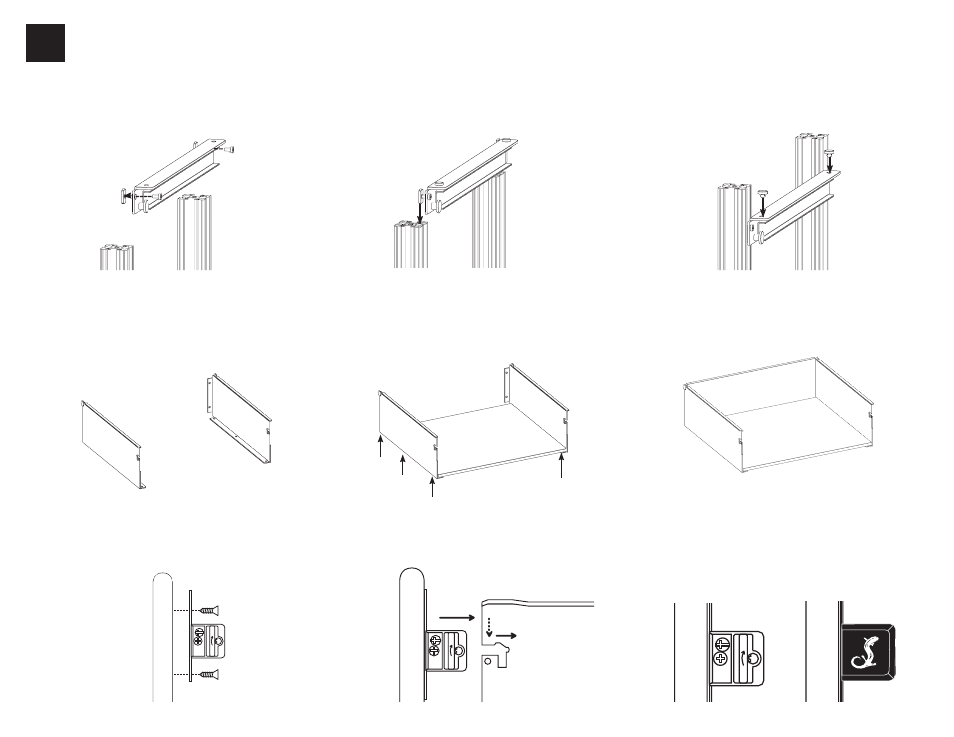

Assemble Drawer
D. Layout Sides
Place the sides parallel to each other with
the rollers on the top outer corners.
H. Attaching Panel
Slip the fixing hooks into the slots on the sides of the drawer.
Apply downward pressure to the drawer face until it stops.
Then push
the
face in
farther
I. Adjust Height & Trim Cover
NOTE: The upper screw on the sides of the drawer fix-
ing hook is used to adjust the height of the drawer if
necessary. Loosen the lower screw and adjust height of
drawer face by turning the upper screw. Tighten lower
screw to lock in place Snap the two plastic covers with
the Salamander Logo over screw assembly.
E. Place Bottom
Place the bottom panel in between slides with the
rounded edge facing forward and make sure the
pre-drilled holes are on the underside. Match the
bracket holes with the pilot holes and attach six
F. Insert Back Panel
Drop the back panel into place, rounded edge up,
matching pilot holes with holes on the brackets and
attach black screws from behind.
A . Place the low heads in the 2 holes of
each drawer slide and attach loosely.
B . Insert the flat nuts into the channels making
sure that the rollers face the front of the rack.
Use the Spacer Tool provided to help space the
drawer as desired.
C . Insert the Rubber Tabs into the 2 holes on the
shorter part of the bracket with the flat side facing up.
G. Add Fixing Hook
Adjustment screws on the fixing hook
should face outside of the drawer box.
Note: Each Bracket is marked “R” or “L”.
Doc No. 500-785/v4.12 236 -3/5
