Salamander Designs Synergy System SB133C/B - Manual (Page 2)

Doc No. 501-065 / v6.12 133 - 2 of 4
1
B
.

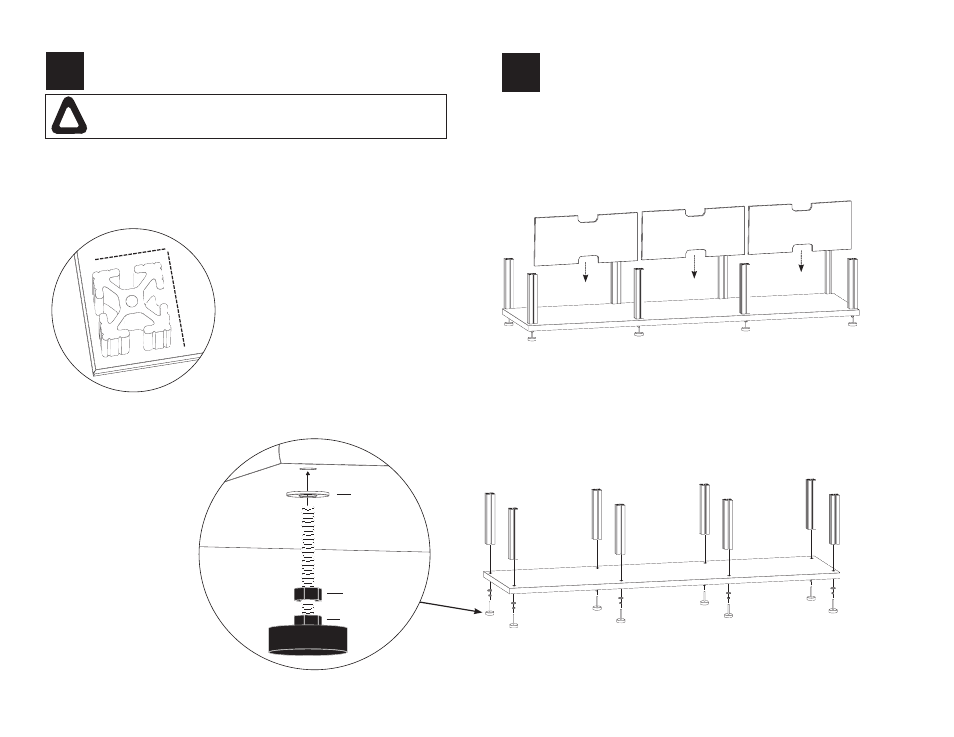

Connect Post
Screw foot with metal washer
through bottom shelf and onto
the end of each extruded post.
Hand tighten fully and use
wrench to tighten nut onto
underside of shelf.
90 O
A
.
Square Post
Square the post to the bottom
shelf.
Connect Posts to Bottom Shelf
WARNING: Tighten by screwing the leveler foot NOT the post. ! !
Leveler Foot
Hex Nut
Washer
Carefully slide the three rear panels down center channel of rear posts. Be sure
the posts are square to the bottom shelf to prevent any damage to rear panels.
REAR
Insert Rear Panels
2
