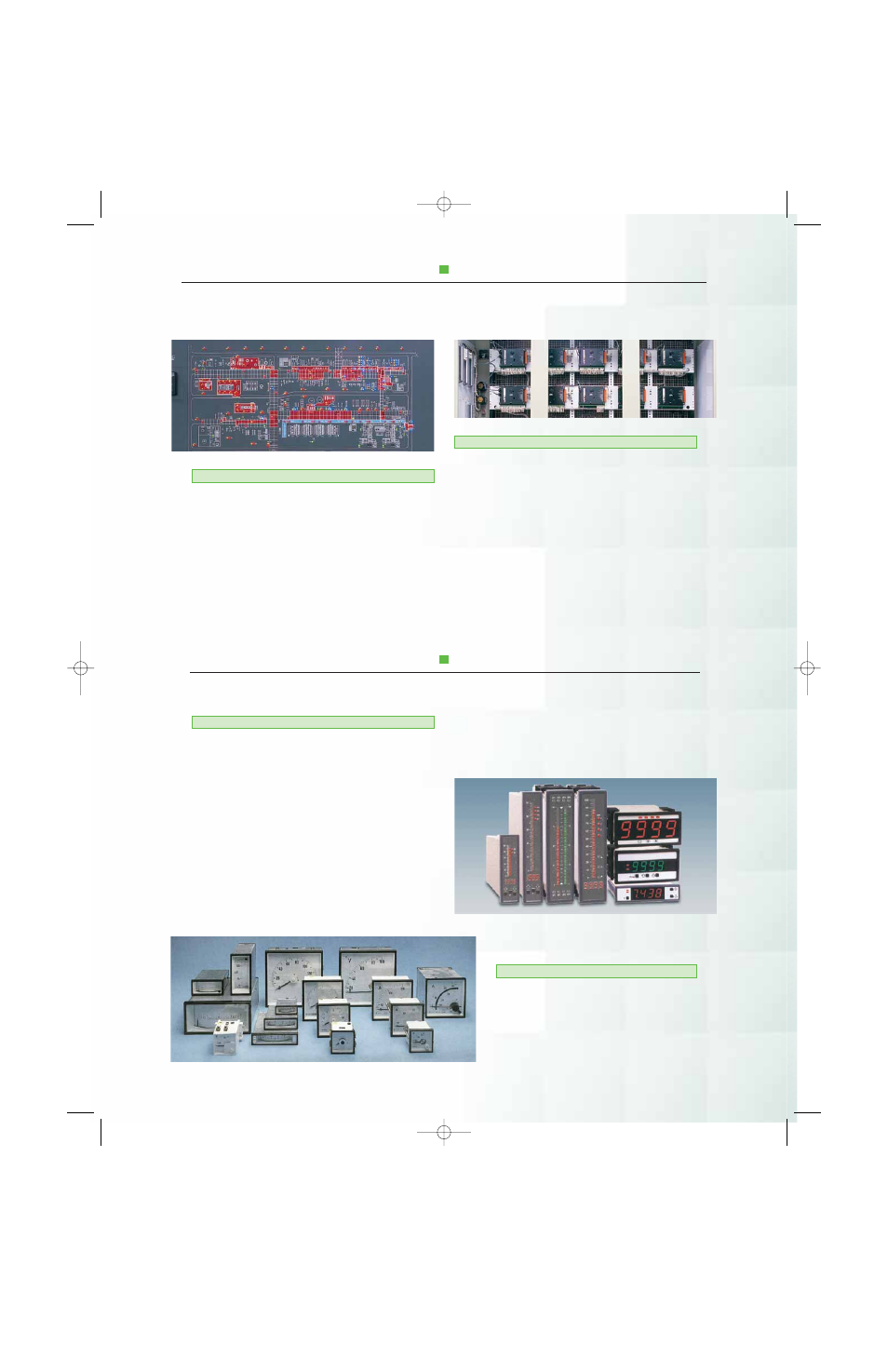

A N N U N C I AT O R S
The X71 graphic may include conventional
window annunciators mounted into the grid with
special mounting facilities. Due to the annunciators’
inherent heavy weight, there are limitations to their
size. For applications where large numbers of
windows are required, a combination of lamp cabinet,
incandescent or LED type, with remote annunciator
logic is recommended.
S E R I A L I N P U T A N N U N C I AT O R S
The most suitable approach for a larger number
of windows or indicators is to utilize the Ronan X110
Serial Input Annunciator Controller driven from a host
such as a PLC, Ronan X120 Field Multiplexer, or an
X500E Sequence of Events Recorder. Each X110
controller provides for 48 outputs with individually
selectable alarm sequence per output. The X110s are
typically mounted in the graphic enclosure or integral
to the rear of the graphic assembly.
D I G I T A L D I S P L A Y S / B A R G R A P H S
Digital Indicators are available in many sizes and
should be selected based on the application. Typical
requirements are AC or DC currents and voltage,
Watt and VAR, frequency, time clock, and process
loop indicators. Typical indicators come with different
size LEDs or LCDs, with any number of digits as
specified by the customer. Digital Indicators typically
span multiple tiles with Ronan providing custom
mounting facilities.
Bargraphs can be utilized as process value indica-
tors with 4-20 mA input and are available with single
A N A L O G D I S P L A Y S
Analog Meters for specific custom require-
ments can be supplied. Selection should be
made by the customer with Ronan to supply
special mounting plates sized to the meter’s
dimensions.
or dual channel LED display, with digital indicators
optionally. The bargraphs may be horizontally or
vertically mounted onto Ronan supplied plates.
A N N U N C I A T I O N A N D P R O C E S S P A R A M E T E R
D I S P L A Y S
D I G I T A L / A N A L O G M E T E R S A N D D I S P L A Y S
6
