D O C U M E N T AT I O N

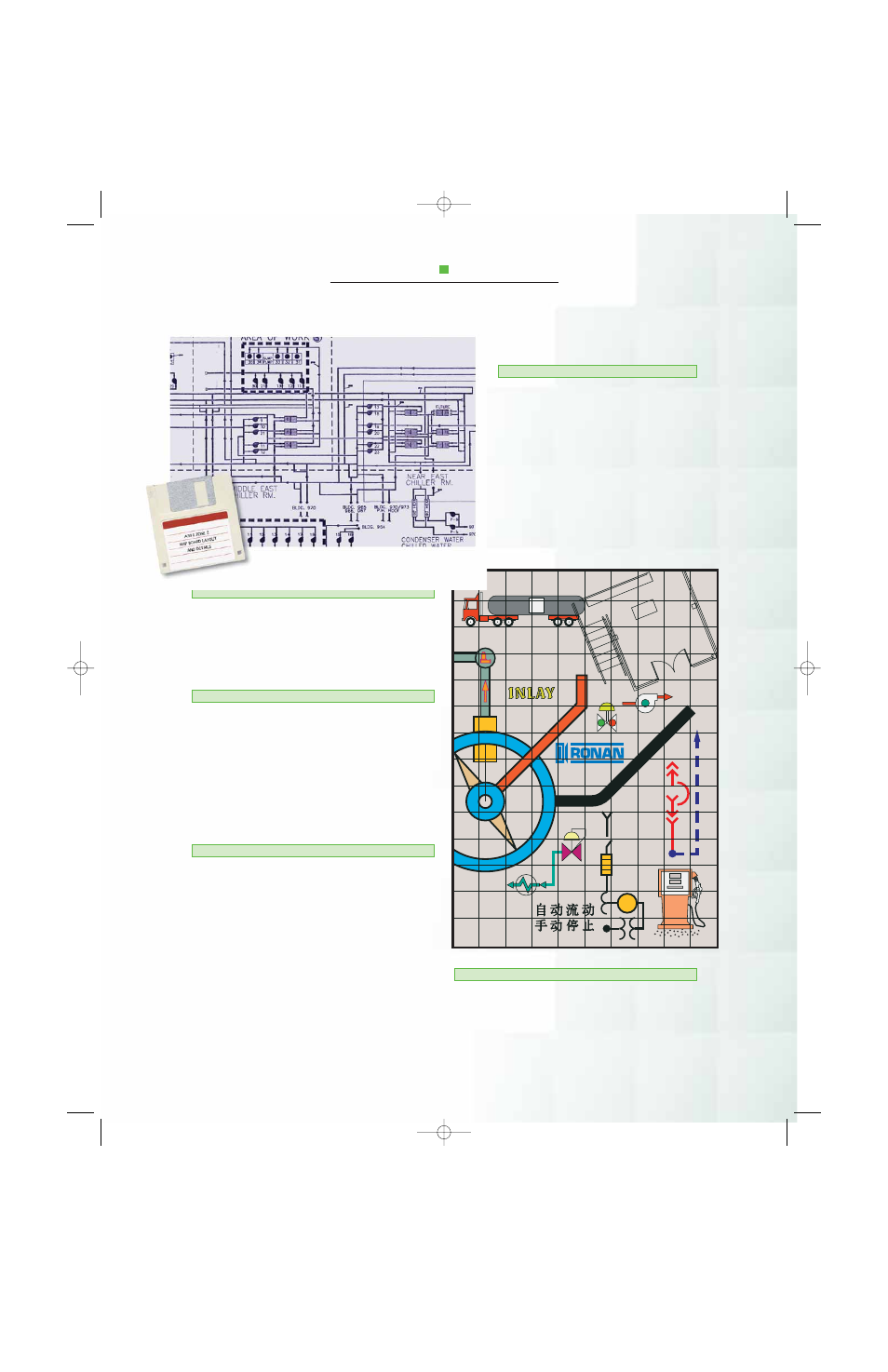

The graphic layout is best transferred via
computer file. If not available, an actual size
drawing will reduce customer approval time
for layouts. Ronan factory personnel will
verify compliance with tile and grid layout
requirements and optional mounting facilities
for special equipment. The customer is re-
quested to select the color for lines, symbols,
and tile background from the color chart.
(See back page)
L I N E S
The process line width should be selected based
on the graphic’s overall size and is available outlined
or not outlined (solid). Care should be taken in the
selection of color for contrast in text/process outlines.
T E X T / L E T T E R I N G
The recommended standard lettering style is
gothic, with many other computer generated styles
available. The letters should be sized for easy read-
ability by the operator. Recommended sizes are from
7/16″ (11.11 mm) to 1/2″ (12.70 mm) high. The let-
tering is centered on symbols or tiles with adjustments
to minimize screening across tile separation.
S Y M B O L S A N D C U S T O M L O G O
A large number of standard symbols is available.
These can be sized to fit on a single tile or a number
of tiles and placed symmetrically for the best visual
appearance. The standard symbols are available from
Ronan on Auto CAD files to simplify the graphic
layout for the customer. Custom symbols may be gen-
erated for specific applications, including customer’s
logo in the graphic layout.
AUTO RUNNING
MANUAL
M
1600AF
1600AT
ARCHITECTURAL
Mechanical Closet 321.1
MOSAIC
200A
PU-801
HI-LO
PRESSURE
P R O T E C T I V E C O AT I N G
The final graphic display is coated with a non-
glare UV resistant acrylic spray for a long-lasting, soil
resistant appearance. The protective coating allows for
cleaning with mild cleaners or soap solution.
G R A P H I C L A Y O U T
