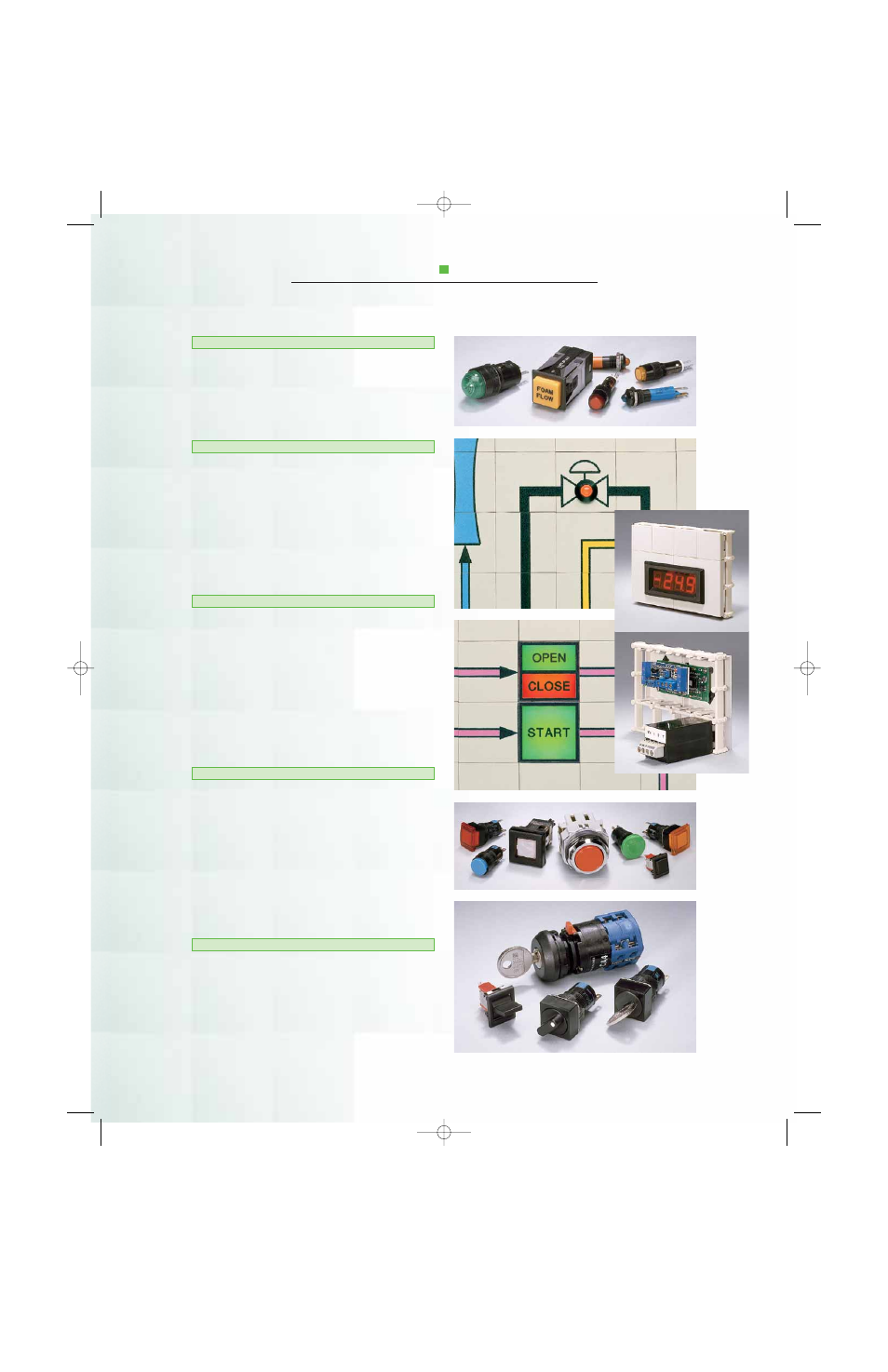

I N D I C AT O R L I G H T S
All indicator lights utilized are LED type (Light
Emitting Diodes) with current limiting to provide
greater than 100,000 hours of life. The indicators are
available in through-the-tile or behind-the-tile versions.
T H R O U G H T H E T I L E
Typical through-the-tile LED indicators are available
in various diameters and light intensity. The size of the
indicators should be based on the size and density of
the graphic. Single or dual color indicators available.
If the customer does not state a preference, Ronan
will select the appropriate type, based on the client’s
application.
B E H I N D T H E T I L E
The Ronan Series X71 LED indicator is a 1″ x 1″
(25.40 mm x 25.40 mm) assembly which attaches to
the grid from the rear behind a translucent tile. The
translucent tile is typically screened with a process
symbol or outline. The X71s are available in single or
multiple colors (up to 3 colors), e.g. green, red or
amber. The three colors are typical for motor or valve
status indication.
P U S H B U T T O N S
Push buttons are available in many different sizes
and may occupy a single tile or multiple tiles. The
number of poles and contact ratings are application
based and must be specified by the customer.
Illuminated (LED type) and non-illuminated push
buttons are available with round, square, and rectan-
gular buttons. Momentary or ON/OFF functions with
single or multi-poles are available.
S W I T C H E S
Proper selection of switches should be made by the
customer based on the application, taking into con-
sideration power requirements, number of poles,
positions (maintain or spring return), actuator (key or
handle), and size. Ronan’s product specialists are
available for technical support.
L I G H T S A N D S W I T C H E S
