Rev 1.0 Series X11CA Hardware Manual
1. Overview
Hardware Control-© 2002 Ronan Engineering 2
§ The maximum of 256 modules are allowed per system.
§ Microprocessor Based system
§ High noise immunity
§ Field proven off-the shelf worldwide
§ Serial input/output
§ Comprehensive user configuration with standard windows software

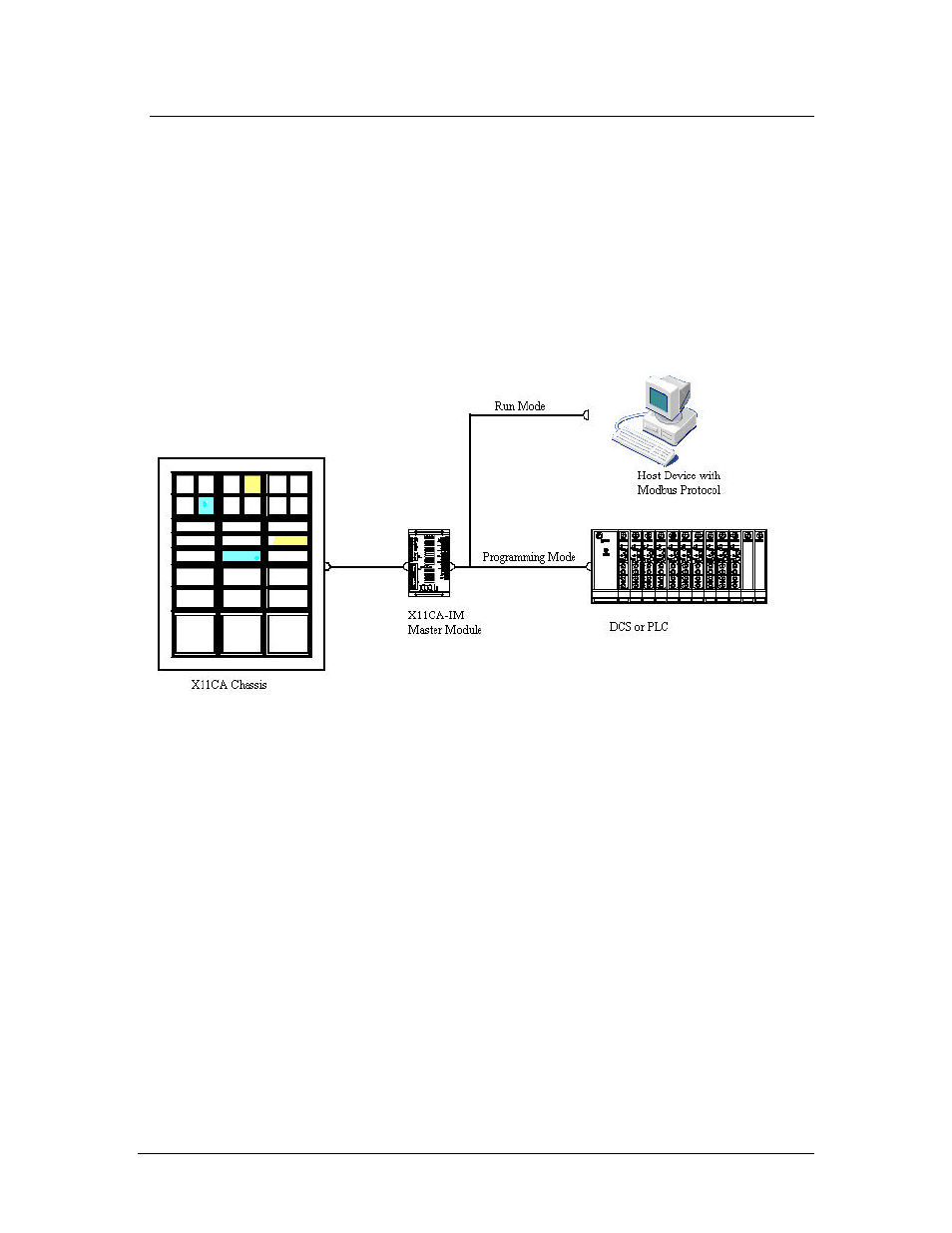

Figure 1-1 X11CA System
1.1 Abbreviations
GF : Global Function
CTA /CA : Common Trouble Alarm
FC : Field Contact
MEIN : First Out
AUX : Auxiliary Relay
TO : Transistor Output
H1 : Horn 1
H2 : Horn 2
NC : Not Connected
TCP : Transport Control Protocol.
IP : Internet Protocol
DWG NO : Drawing Number
