3. Event Sequences
Hardware Control-© 2002 Ronan Engineering 29
Options Descriptions
1. Silence Pushbutton:
A separate pushbutton is added to allow silencing the alarm audible
device without affecting the visual displays.

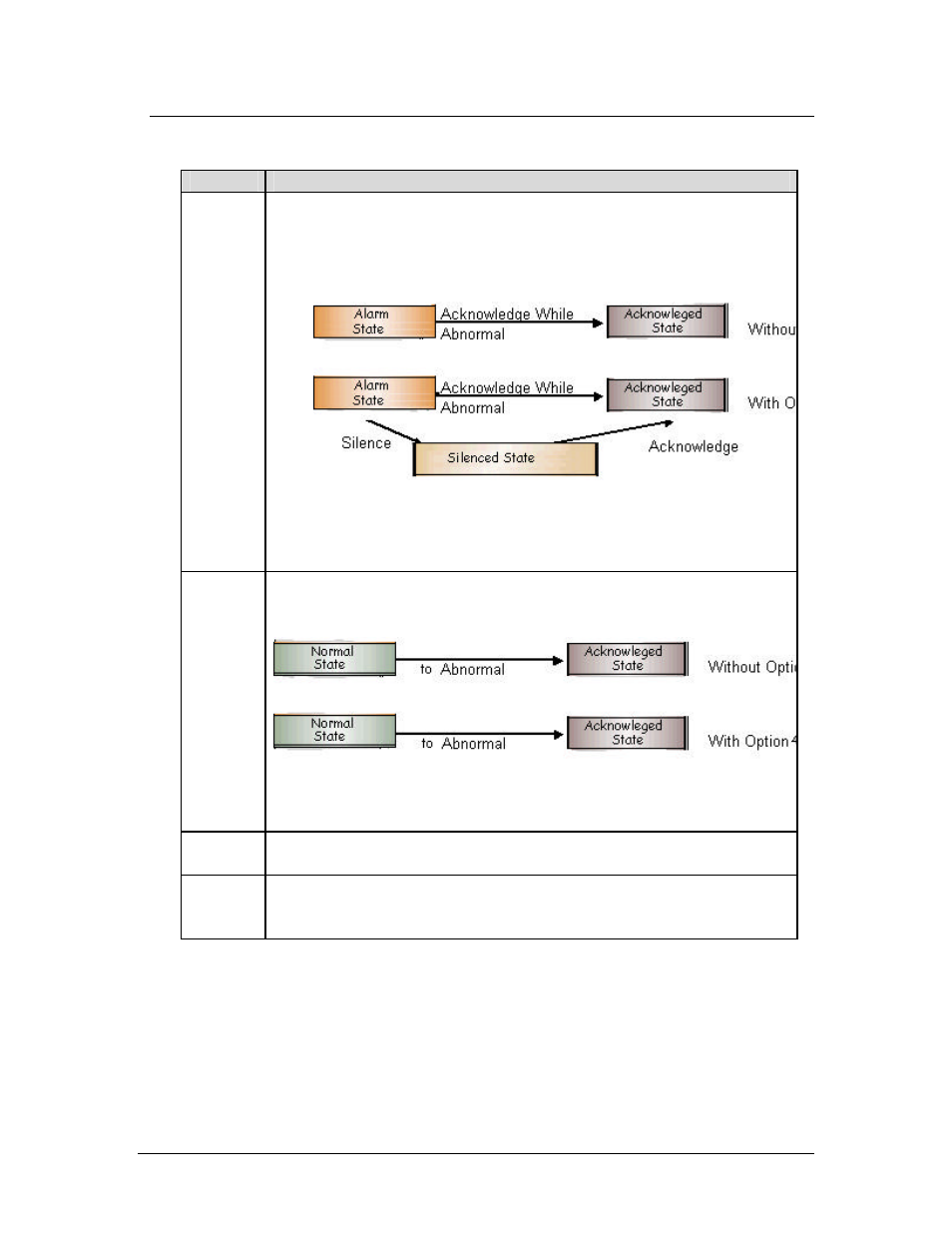

Figure 3-2 Silence Pushbutton Option
4 No Lock-in:
Figure 3-3 No Lock-in Option
5 No Flashing:
6 No Alarm Audible
No outputs on Terminals A1 and A2.
3.2 Basic Sequence Types
The descriptions of the basic sequence types are listed below. Variations in the
basic sequences are defined by adding the options numbers to the basic sequences.
