Ronan X16PDM User Manual

Page 25

Rev 1.0 Series X11CA Hardware Manual

2. X11CA Hardware Setup

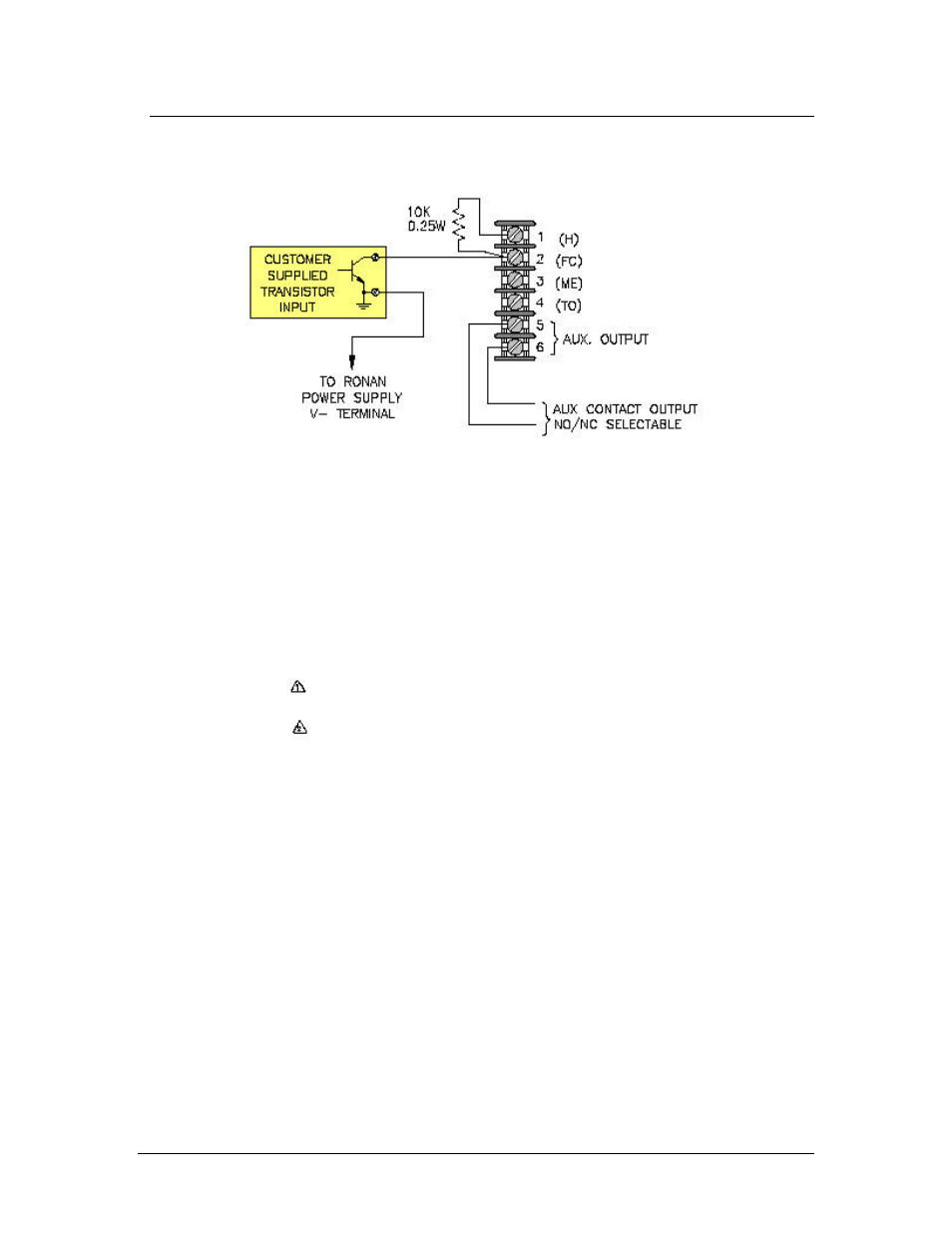

Figure 2-19 Typical transistor input (DWG NO: X11C497)

(H)

: Field contact voltage for dry contact

(FC) : Field contact return

(ME) : Connect all First out windows in a

group.

(TO) : Transistor output driver.

AUX OUT : Auxiliary output - N.O./N.C. selectable

: T.O.: A1, A2, CTA, RFL, RUN for

transistor driver

: A1, A2, CTA, RFL, RUN for auxiliary

output

NO : Normally opened

COM : Common

NC : Normally closed.
A1 : Horn 1
A2 : Horn 2.

CTA : Common Trouble Alarm
RFL : Reflash
RUN : X11CA-IM power indication

GP1, GP2 : Programmable inhibit function.
