15. Set the GAS/ELEC switch to either GAS for a gas/oil heating
system or ELEC for an electric heating system (Figure 6).
16. Set the HP/NON-HP switch to either the HP for heat pump or
NON-HP for furnace applications (Figure 6).
17. Install two AA Energizer brand batteries or equivalent into
battery compartment as shown (Figure 6).
18. Replace thermostat cover by snapping into place.
6
RESET
NON-HP HP
ELEC GAS
ROOM
°F
OFF
NON-HP/HP
Switch
GAS/ELECTRIC
Switch
+ -
+ -

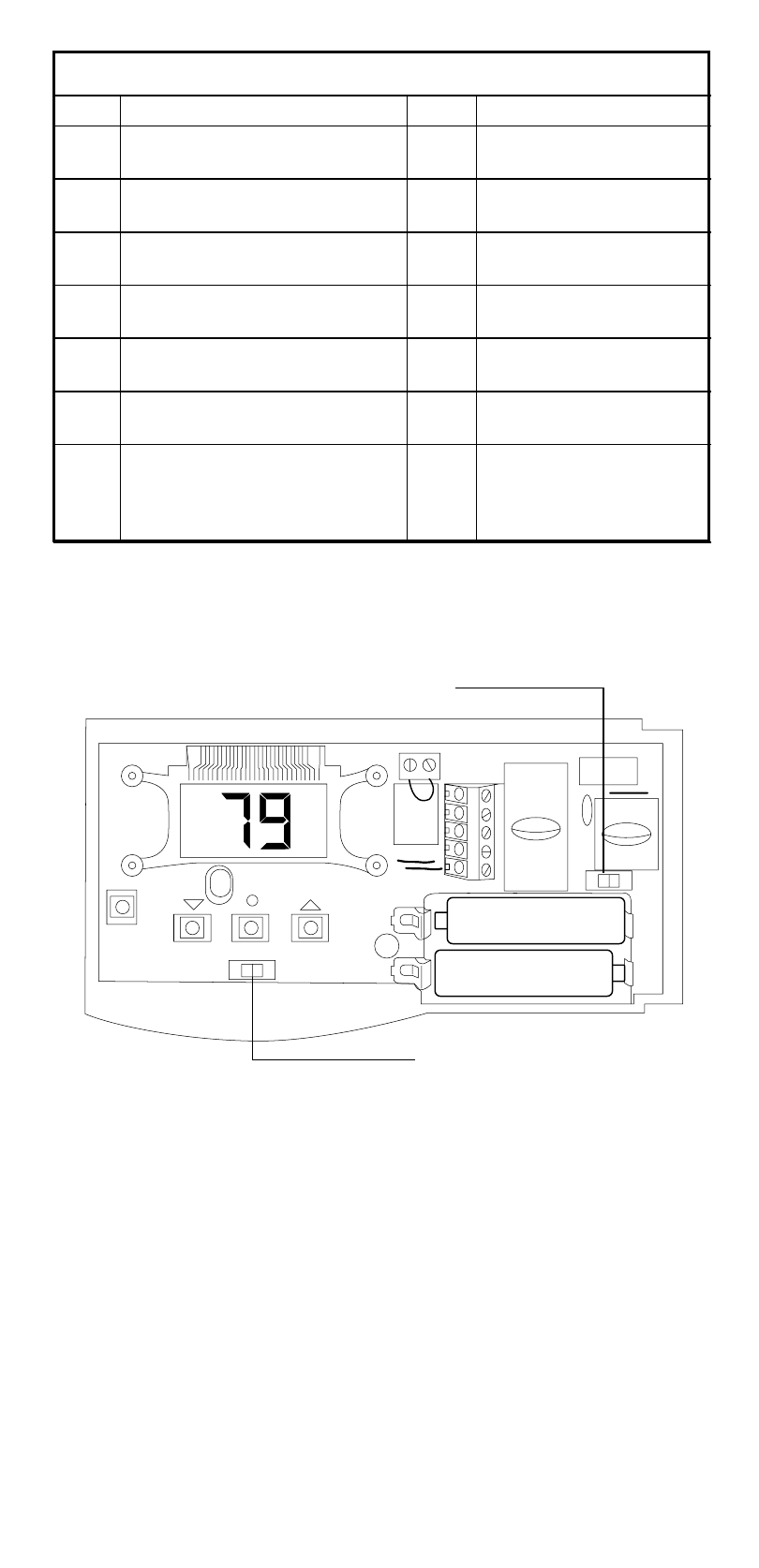

Figure 6
TERMINAL LEGEND - 9400
TERM EQUIPMENT TO CONNECT REQ? TERMINAL FUNCTION
Rh 24VAC hot connection Yes For input of 24VAC hot
side of heat transformer
Rc 24VAC hot connection Yes For input of 24VAC hot
side of cool transformer
W Heat connection Yes* Energizes on a call for
heating
Y Compressor Connection Yes* Energizes on a call for
cooling
B Accessory** No Energizes when in the
HEAT mode
O Accessory** No Energizes when in the
COOL mode
G Indoor fan connection Yes Energizes with Y & W
terminals or with FAN
option switched to the
ON position
* This thermostat can be used as a heat only or cool only thermostat therefore it is not always
necessary to use both Y and W.
**The O and B terminals are accessory terminals that typically are used for heat pump applications.
