Menu Driven Display
2 Heat / 2 Cool

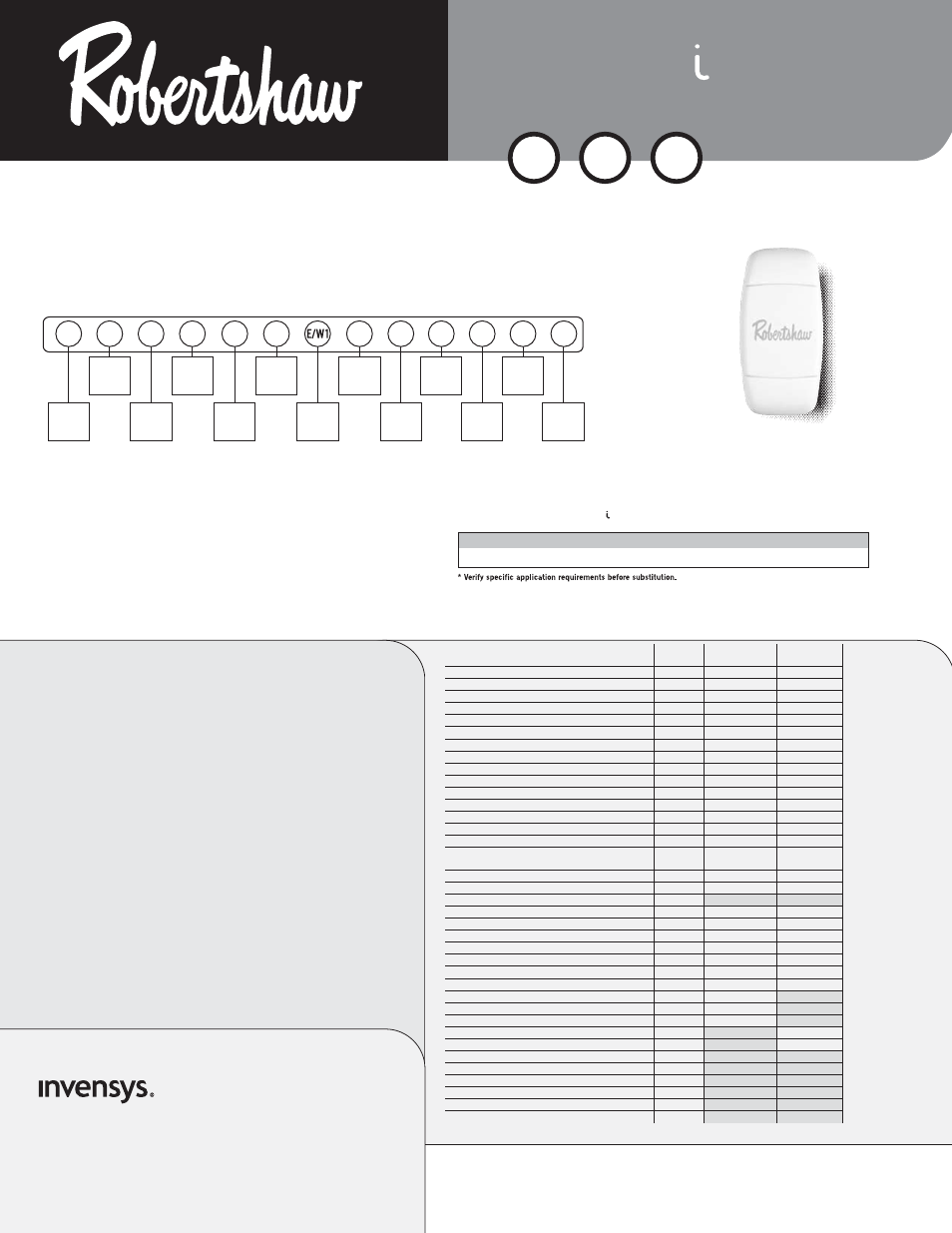

Terminal Designations
Specifications
Electrical rating: 24 Volt AC (18-30 VAC)
1 amp maximum load per terminal (relay outputs)
4 amp total maximum load (all terminals combined)
Temperature control range: 45˚- 90˚F (7˚- 32˚C)
Accuracy: +/-1.0˚F (+/-0.5˚C)
Power Source: 24 VAC
Auto Changeover deadband: Selectable 2˚ to 8˚F
Temporary temperature override: 3 hour maximum or next setpoint
Remote sensor capable: 1 indoor and 1 outdoor sensor
System configurations: Multi-stage gas, oil or electric
heating/cooling systems
Terminations: R, W1, W2, Y1, Y2, B, O, G, C, IS, OS, H
Other Multi-Stage
Heat / Cool Thermostats
9715i: Programmable, 7 Day
9615: Programmable, 7 Day
9415: Non-Programmable
9815i: Humidification, 7 Day
9915i: Commercial, 7 Day
Shipping Information
Indiv. Ctn. Dim.: 6.625" x 4.25" x 1.625"
Master Ctn. Qty.: 6
Master Ctn. Dim.: 9.25" x 5.625" x 7.5"
Master Ctn. Cu. Ft.: .23
Master Ctn. Wt.: 3.5 lbs.
Max. Pallet Qty.: 1260
Max. Pallet Wt.: 785 lbs.
Optional Sensors:
REMOTE INDOOR
REMOTE OUTDOOR
Distributed by:
Remote
Outdoor
Sensor
Remote
Indoor
Sensor
24 VAC
Common
Cooling
Relay
(Stage 1)
Heat Active
Reversing
Valve
Heating
Relay
(Stage 1)
Cool Active
Reversing
Valve
24 VAC
Transformer
Fan
Relay
OS IS C Y1 B O
Heating
Relay
(Stage 2)
Humidity
Relay
W2 R
Cooling
Relay
(Stage 2)
Y2 H
Dehumidity
Relay
D G
Honeywell, Inc.* PC8900
Carrier Corp.* P374-1100, THERMIDISTAT
THE ROBERTSHAW REPLACES:
98
65
®
9020
i
9025
i
Item 9020i and 9025i Remote Sensors
Indiv. Ctn. Dim.: 2.625" x 1.5625" x 4.4375"
Master Ctn. Qty.: 6
Master Ctn. Dim.: 5.625" x 5.125" x 5.125"
Master Ctn. Cu. Ft.: .09
Master Ctn. Wt.: .78 lbs.
DELUXE
PROGRAMMABLE
THERMOSTAT
E G
ELECTRIC
O
OIL GAS
Feature Comparison
98
65
Controls Americas
515 South Promenade Avenue
Corona California 92879-1736 USA
Telephone +1 800 951 5526 Facsimile +1 630 260 7299
[email protected]
Technical Service Telephone +1 800 445 8299
Technical Service Facsimile +1 630 260 7243
[email protected]
www.icca.invensys.com
©2005 Invensys Controls Americas 9/05 - #150-1809B
Robertshaw Honeywell, Inc. Carrier Corp.
9865i PC8900 THERMIDISTAT
Manual Override X X X
EEPROM X X X
Compressor Short Cycle Protection X X X
7 Day Programming X X X
Resume X X X
Auto Changeover X X X
Line Powered X X X
Programmable Fan X X X
O & B Terminals X X Partial
˚F and ˚C X X X
Status Indicators X X X
Adjustable Differential X X X
Gas/Electric X X X
Energy Efficient Recovery X X X
Manual Humidity Control X X X
Automatic Humidity Control
based on Outdoor Temperature
X X X
Dehumidity Control X X X
Pre-Set Program X X X
Independent Humidity & Dehumidity Control X
4 Hour Reserve X X X
Events / day 2, 4 4 4
Hidden Service Level X X X
Remote Outdoor Sensor X X X
Security Key Pad X X X
Vacation Setting X X X
Air Filter Monitor X X X
12 or 24 Hour X X
Condensation Control X X
Remote Indoor Sensor X X
Large Display X X
Back Lighting X X
Service Interval Reminders X
5/2 Day Programming X
Adjustable Residual Cooling X
1/2 Degree Resolution X
Menu Driven (Ease of Programming) X
24 Hr. Programming X
