Robertshaw 9700i INSTALLATION User Manual
Installation dos and don’ts do, Do not

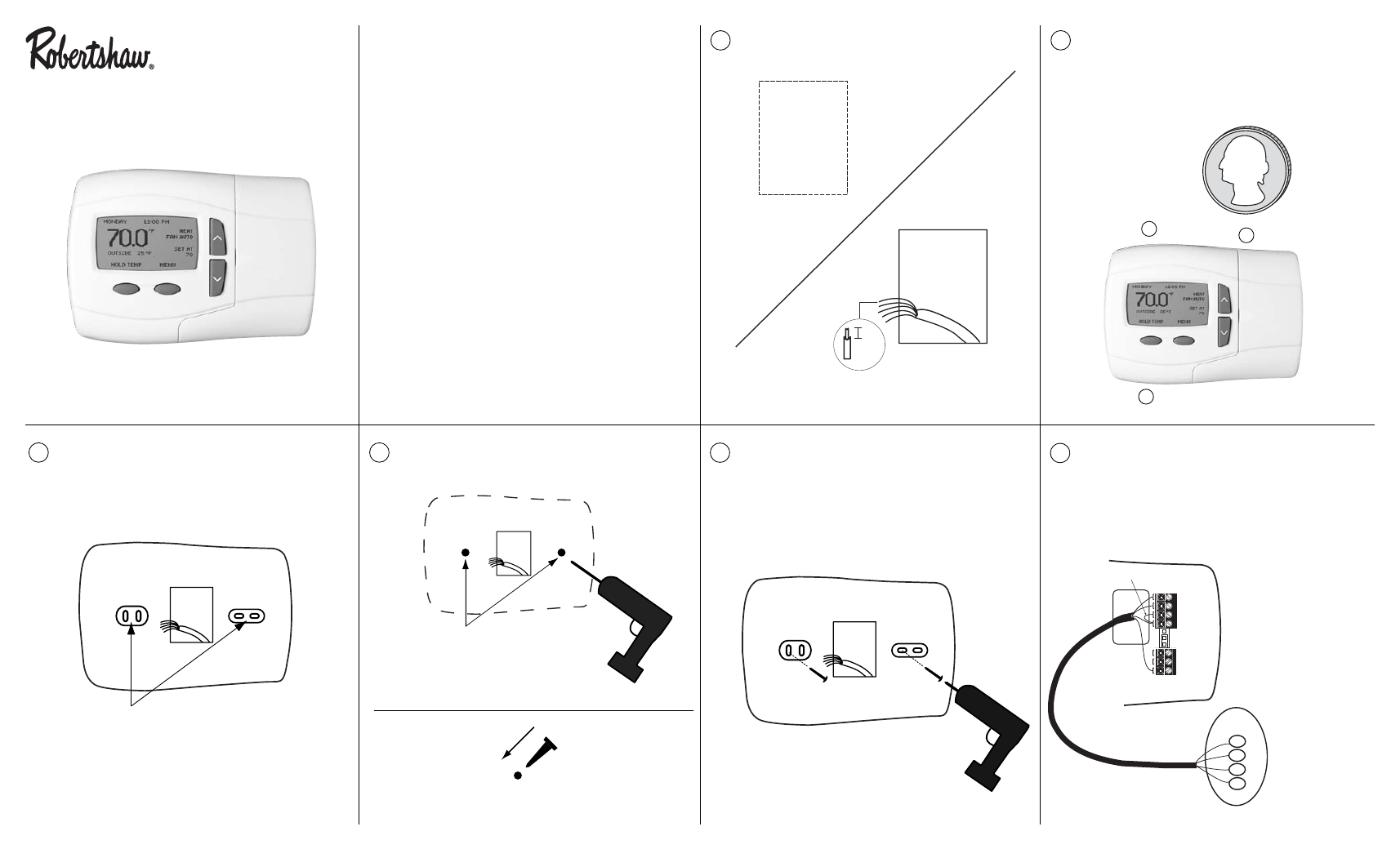

Quick Start Installation Manual
111-304C
Installation DOs and DON’Ts
DO
•
Shut off all power to system before installing.
•
Read entire manual before installing.
•
Make sure that all wiring conforms to
national and local codes.
DO NOT
•
Install on voltages greater than 30 VAC.
•
Short jumper across terminals on the gas
valve or at the system control.
•
Connect ground to any terminal in
this unit.
•
Install on outside walls or in direct sunlight.
Select location for installation.
1
To open battery door, slide it to the right.
Open the case with a coin by placing it
in the slot and gently prying forward at all
three locations.
2
Mark mounting hole locations on wall.
3
Drill
3
/
16
” holes at marked locations on
wall. Insert plastic anchors into holes.
4
Align unit base over plastic anchors
embedded in wall and secure with the
screws provided.
5
Connect wiring between unit and
furnace. For Model 9700i (1H/1C
gas/electric heating and cooling
applications).
6
Cut
out
opening
a
b
1/4"
1-1/2"
1"
Mark mounting hole
locations on wall using
unit base as template.
Drill 3/16 holes
a
b
Press anchors into holes until flush.
Rc
W
Y
Rh
O
B
G
G
Y
W
R
Thermostat
Rh - 24VAC
Rc - 24VAC
W - 1st stage heating
O -
Not
used
B -
Not
used
G -
Fan
Y - 1st stage cooling
TERMINAL DESIGNATIONS
9700
i
Equipment wiring
terminals.
Please refer to
furnace installation
manual for
proper connections.
HP
J1
FN
Remove factory installed
jumper if two transformers
are used.
Factory installed jumper
DELUXE
PROGRAMMABLE
THERMOSTAT
9700
i
Remove 1/4” of insulation
from end of each wire
2
1
3
