Shipping Information

Indiv. Ctn. Dim.:

6.75" x 4.375" x 1.625"

Master Ctn. Qty.:

6

Master Ctn. Dim.:

9.25" x 5.625" x 7.625"

Master Ctn. Cu. Ft.: 0.23
Master Ctn. Wt.:

4.0 lbs.

Max. Pallet Qty.:

1170

Max. Pallet Dim.:

40" x 48" x 48"

Max. Pallet Cu. Ft.: 53.33
Max. Pallet Wt.:

835 lbs.

Distributed by:

Other Multi-Stage
Thermostats

9415: Digital, Non-Programmable, 2 Heat / 2 Cool
9420: Digital, Non-Programmable, 2 Heat / 2 Cool, HP
9620: Programmable, 2 Heat / 2 Cool, HP
9715i: Deluxe Programmable, 2 Heat / 2 Cool
9720i: Deluxe Programmable, 2 Heat / 2 Cool, HP

9615

7 Day Programmable
2 Heat / 2 Cool

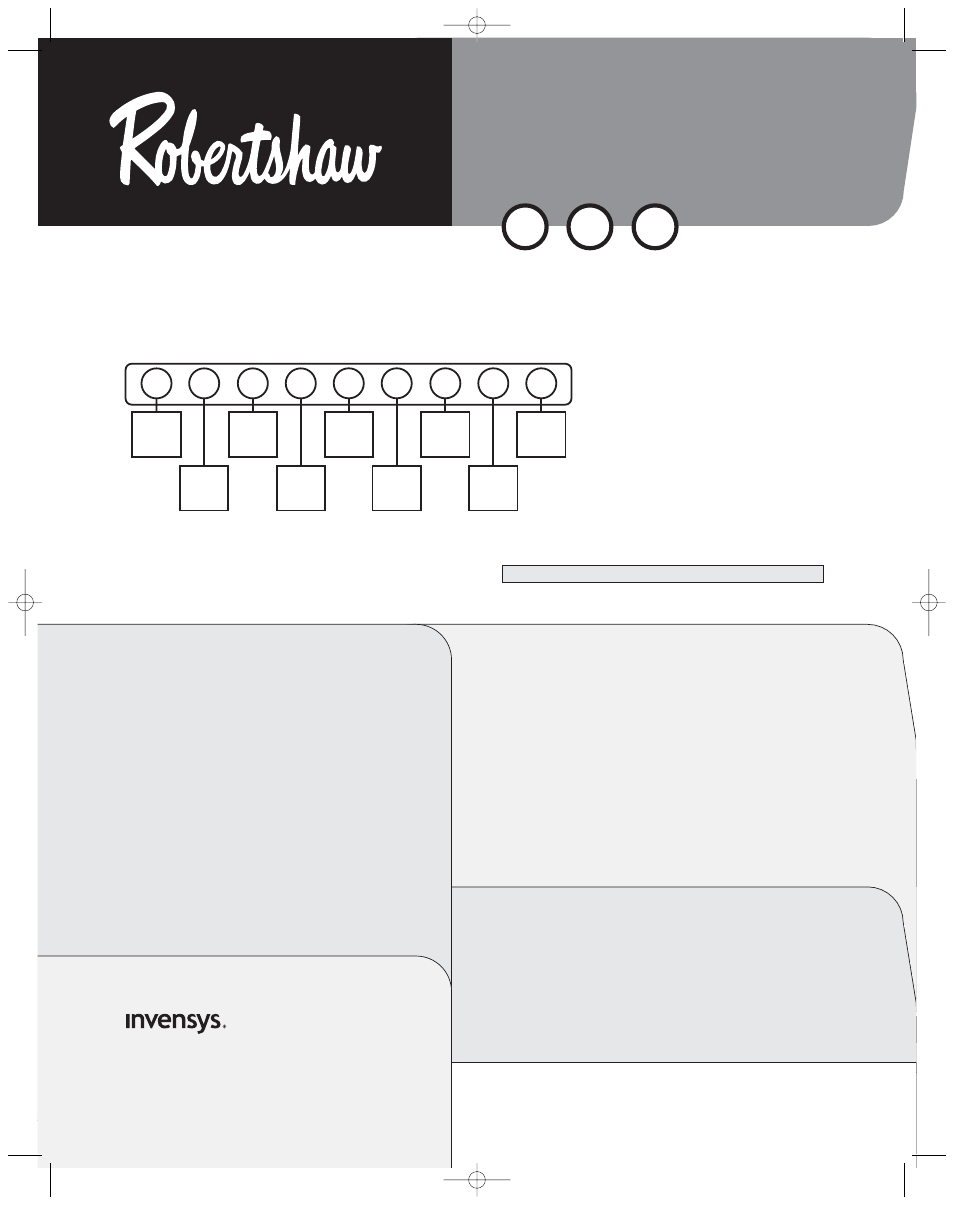

Terminal Designations

White-Rodgers Company*

1F81-51

* Verify specific application requirements before substitution.

THE ROBERTSHAW

9615

REPLACES:

C

24 VAC

Common

Y2

Cooling

Relay

(Stage 2)

Y1

Cooling

Relay

(Stage 1)

R

24 VAC

Transformer

W1

Heat

Relay

(Stage 1)

O

Cool Active

Reversing

Valve

B

Heat Active

Reversing

Valve

G

Fan

Relay

Auxiliary

Heat Relay

(Stage 2)

W2

Specifications

Electrical rating: 24 Volt AC (18-30 VAC)
1 amp maximum load per terminal
3 amp total maximum load (all terminals combined)
Temperature control range: 45˚- 90˚F (7˚- 32˚C)
Accuracy: +/-1˚F (+/-.5˚C)
DC power: 3.0 VDC (2 “AA” alkaline batteries included)
System configurations: Multi-stage gas, oil or electric
heating / cooling systems (up to two stage heat,
two stage cool)
Terminations: R, W1, Y1, Y2, O, B, G, W2, C
1st Stage Differential: 1° – 3° F
2nd Stage Differential: 2° – 6° F

E

ELECTRIC

O

OIL

G

GAS

PROGRAMMABLE

THERMOSTAT

®

Climate Controls Americas
515 South Promenade Avenue
Corona California 92879-1736 USA
Telephone +1 800 951 5526 Facsimile +1 630 260 7299
[email protected]
Technical Service Telephone +1 800 445 8299
Technical Service Facsimile +1 630 260 7243
[email protected]
www.icca.invensys.com
©2004 Climate Controls Americas 3/04 - #150-1501F
