1 Heat / 1 Cool
with Auto Changeover

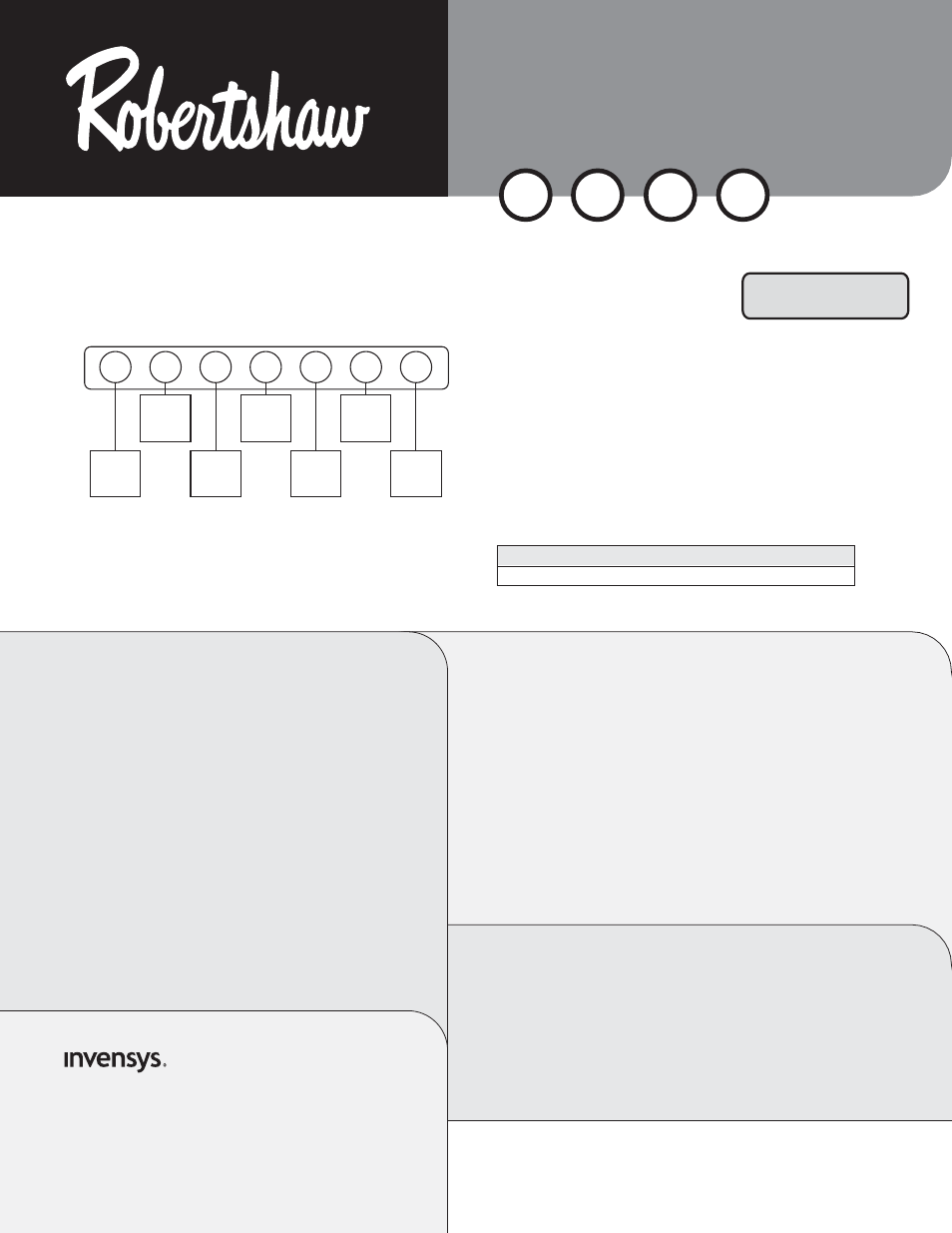

Terminal Designations
Shipping Information
Indiv. Ctn. Dim.: 6.75" x 4.375" x 1.625"
Master Ctn. Qty.: 6
Master Ctn. Dim.: 9.25" x 5.625" x 7.5"
Master Ctn. Cu. Ft.: .23
Master Ctn. Wt.:
4.0 lbs.
Max. Pallet Qty.: 1260
Max. Pallet Dim.: 40" x 48" x 45.3"
Max. Pallet Cu. Ft.: 50.3
Max. Pallet Wt.:
835 lbs.
C
24 VAC
Common
R
24 VAC
Transformer
W
Heat
Relay
Y
Cooling
Relay
B G
Heat Active
Reversing
Valve
O
Cool Active
Reversing
Valve
Fan
Relay
Specifications
Electrical rating: 24 Volt AC (18-30 VAC)
1 amp maximum load per terminal
3 amp total maximum load (all terminals combined)
Temperature control range: 45˚- 90˚F (7˚- 32˚C)
Accuracy: +/-1˚F (+/-.5˚C)
Power source: 24 VAC
System configurations: Single-stage gas, oil or electric
heating / cooling systems (or single stage heat pump)
Terminations: C, R, W, Y, B, O, G
1st Stage Differential: 0.5° – 3° F
Distributed by:
Other Single-Stage
Heat / Cool Thermostats
988-1: Mechanical
9200: Mercury-Free Deluxe Mechanical
9600: Programmable, 5-2 Day
9610: Programmable, 7 Day
9700i: Deluxe Programmable, 7 Day
9701i: Deluxe Programmable, 7 Day
Honeywell, Inc.* T8501
White-Rodgers* 1586-241
THE ROBERTSHAW
9550
REPLACES:
9550
DELUXE
NON-PROGRAMMABLE
THERMOSTAT
®
E
ELECTRIC
O
OIL
H
HEAT PUMP
G
GAS
* Verify specific application requirements before substitution.
new series!
Climate Controls Americas
515 South Promenade Avenue
Corona California 92879-1736 USA
Telephone +1 800 951 5526 Facsimile +1 630 260 7299
[email protected]
Technical Service Telephone +1 800 445 8299
Technical Service Facsimile +1 630 260 7243
[email protected]
www.icca.invensys.com
©2004 Climate Controls Americas 4/04 - #150-1705B
