Robertshaw 9500 - Manual (Page 2)

9500
ECONOMY
NON-PROGRAMMABLE
THERMOSTAT
®

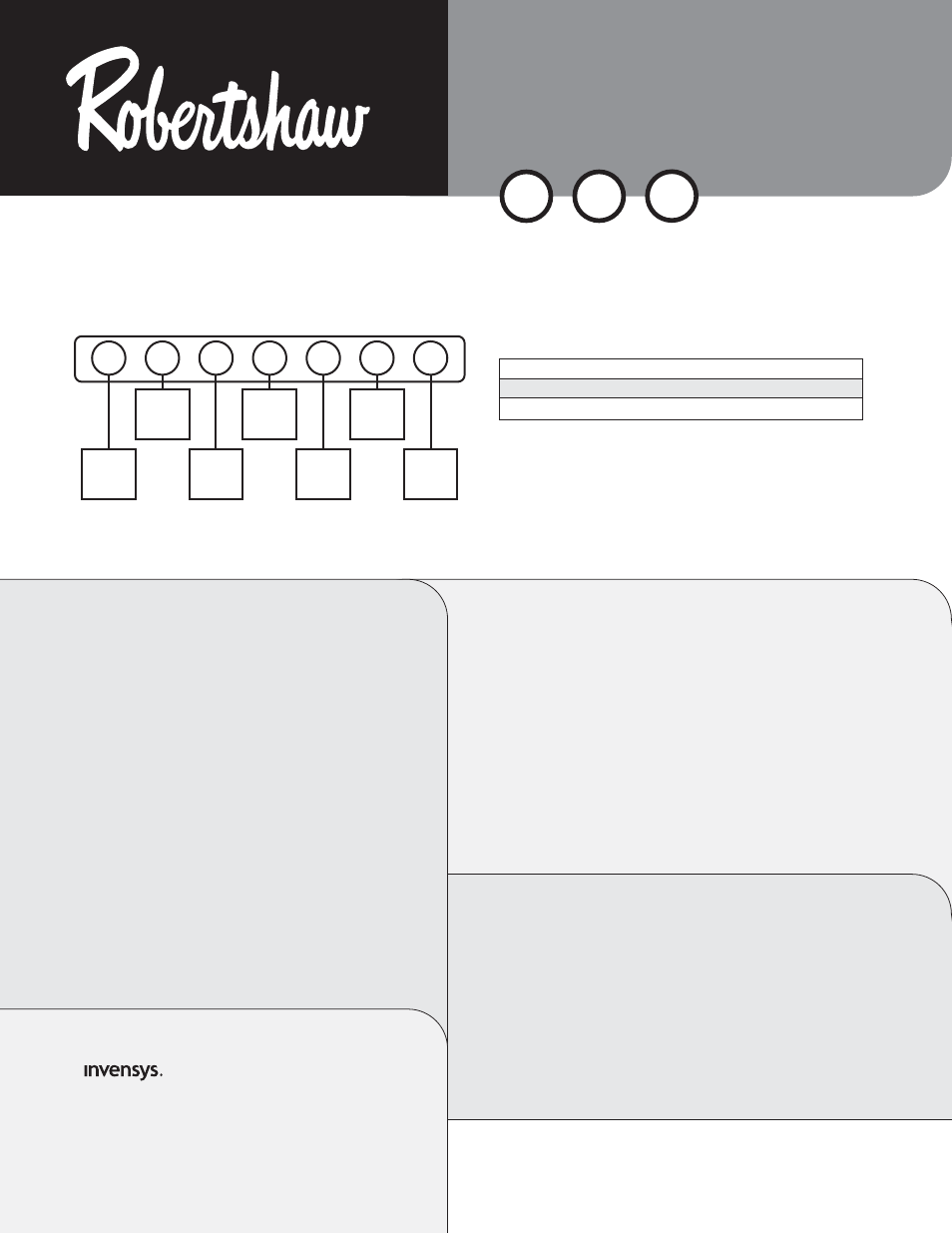

1 Heat / 1 Cool Terminal Designations
E G
Rh
24 VAC
Heating
Transformer
W
Heating
Relay
Rc
24 VAC
Cooling
Transformer
Y O
Cool Active
Reversing
Valve
Cooling
Relay
B G
Fan
Relay
Heat Active
Reversing
Valve
GAS ELECTRIC
Robertshaw 300-215
White-Rodgers Company* 1F86-444, 1C74
Honeywell, Inc.* T8400C, T8401C
* Verify specific application requirements before substitution.
THE ROBERTSHAW
9500
REPLACES:
O
OIL
Shipping Information
Indiv. Ctn. Dim.: 6.75" x 4.375" x 1.625"
Master Ctn. Qty.: 6
Master Ctn. Dim.: 9.25" x 5.625" x 7.625"
Master Ctn. Cu. Ft.: .23
Master Ctn. Wt.:
4.0 lbs.
Max. Pallet Qty.: 1170
Max. Pallet Dim.: 40" x 48" x 48"
Max. Pallet Cu. Ft.: 53.33
Max. Pallet Wt.:
835 lbs.
Other Single-Stage
Heat / Cool Thermostats
988-1: Mechanical
9200: Mercury-Free Deluxe Mechanical
9600: Programmable, 5-2 Day
9610: Programmable, 7 Day
9700i: Deluxe Programmable, 7 Day
9701i: Deluxe Programmable, 7 Day
Specifications
Electrical rating: 24 Volt AC (18-30 VAC)
1 amp maximum load per terminal
3 amp total maximum load
(all terminals combined)
Temperature control range: 45˚- 90˚F (7˚- 32˚C)
Accuracy: +/-1˚F (+/-.5˚C)
DC power: 3.0 Volt
(2 “AA” alkaline batteries included)
System configurations: Single stage gas, oil, or
electric heating or heating/cooling systems
(including single stage heat pump systems)
Terminations: Rh, Rc, W, Y, O, B, G
Distributed by:
Controls Americas
515 South Promenade Avenue
Corona California 92879-1736 USA
Customer Service Telephone +1 800 951 5526
Customer Service Facsimile +1 630 260 7299
[email protected]
For Technical Service
Telephone +1 800 445 8299
Facsimile +1 630 260 7243
[email protected]
www.icca.invensys.com
©2005 Invensys Controls Americas - #150-1398F
