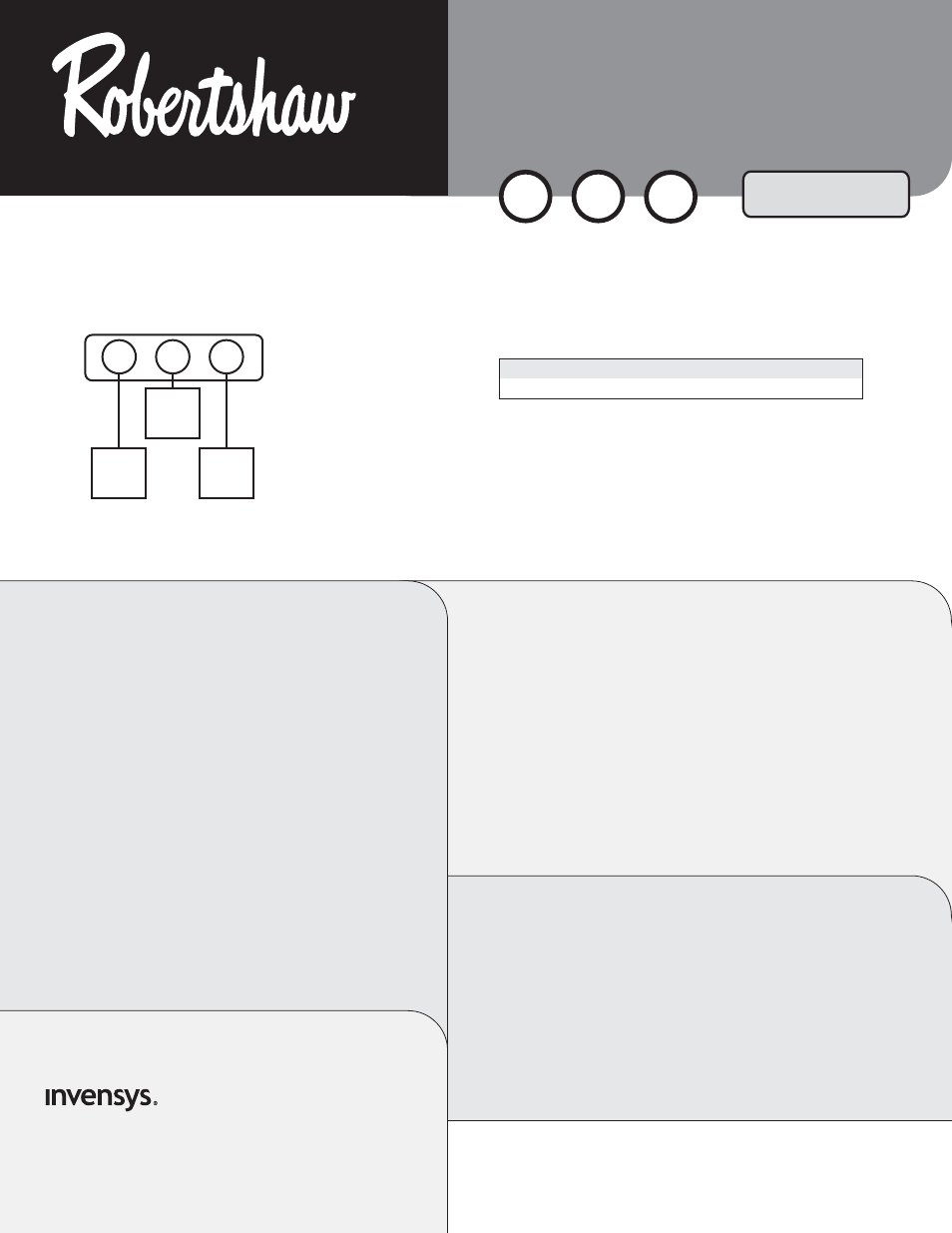

1 Heat Terminal Designations
THE ROBERTSHAW
9405
REPLACES:
E G
Shipping Information
Indiv. Ctn. Dim.: 6.75" x 4.375" x 1.625"
Master Ctn. Qty.: 6
Master Ctn. Dim.: 9.25" x 5.625" x 7.625"
Master Ctn. Cu. Ft.: .23
Master Ctn. Wt.:
4.0 lbs.
Max. Pallet Qty.: 1170
Max. Pallet Dim.: 40" x 48" x 48"
Max. Pallet Cu. Ft.: 53.33
Max. Pallet Wt.:
835 lbs.
Other Single-Stage Heat
Thermostats
986-1: Mechanical
9204: Mercury-Free Deluxe Mechanical
R
24 VAC
Transformer
G W
Fan
Relay
Heating
Relay
Specifications
Electrical rating: 24 Volt AC (18-30 VAC)
1 amp maximum load per terminal
3 amp total maximum load
(all terminals combined)
Temperature control range: 45˚- 90˚F (7˚- 32˚C)
Accuracy: +/-1˚F (+/-.5˚C)
DC power: 3.0 Volt
(2 “AA” alkaline batteries included)
System configurations: Single stage gas, oil,
electric or millivolt heating systems
Terminations: R, W, G
GAS ELECTRIC
Distributed by:
Controls Americas
515 South Promenade Avenue
Corona California 92879-1736 USA
Telephone +1 800 304 6563 Facsimile +1 800 426 0804
Outside the USA +1 909 734 2600
www.robertshaw9400.invensys.com
©2005 Invensys Controls Americas 1/05 - #150-1688D
9405
Robertshaw 9505
Honeywell, Inc.* T8400B
* Verify specific application requirements before substitution.
M
MILLIVOLT
DIGITAL
NON-PROGRAMMABLE
THERMOSTAT
new series!
