Install the 9040 Classic Power Supply in an area
outside the hazardous location, where it will be
protected from the possibility of environmental
intrusion, such as dust or moisture, and ambient
temperatures do not exceed 120
o F, but as close to
the applicator as possible to minimize the length of
high voltage cable. The power supply may be free
standing on any flat surface or wall mounted by
rotating the wall mount brackets (supplied) as
shown in Figure 2. In either case, the power
supply MUST be mounted in an upright position.
DO NOT
DO NOT DO NOT DO NOT DO NOT lay the power supply on its side or back.
INPUT INPUT INPUT INPUT INPUT VOL VOL VOL VOL VOLT T T T TAGE AGE AGE AGE AGE
SELECTION SELECTION SELECTION SELECTION SELECTION
The 9040 Classic Power Supply accepts uni-
versal input voltage between 90 and 264 VAC.
There is no need to change any switch settings
when changing input from 115 to 230 VAC or
from 230 to 115 VAC.

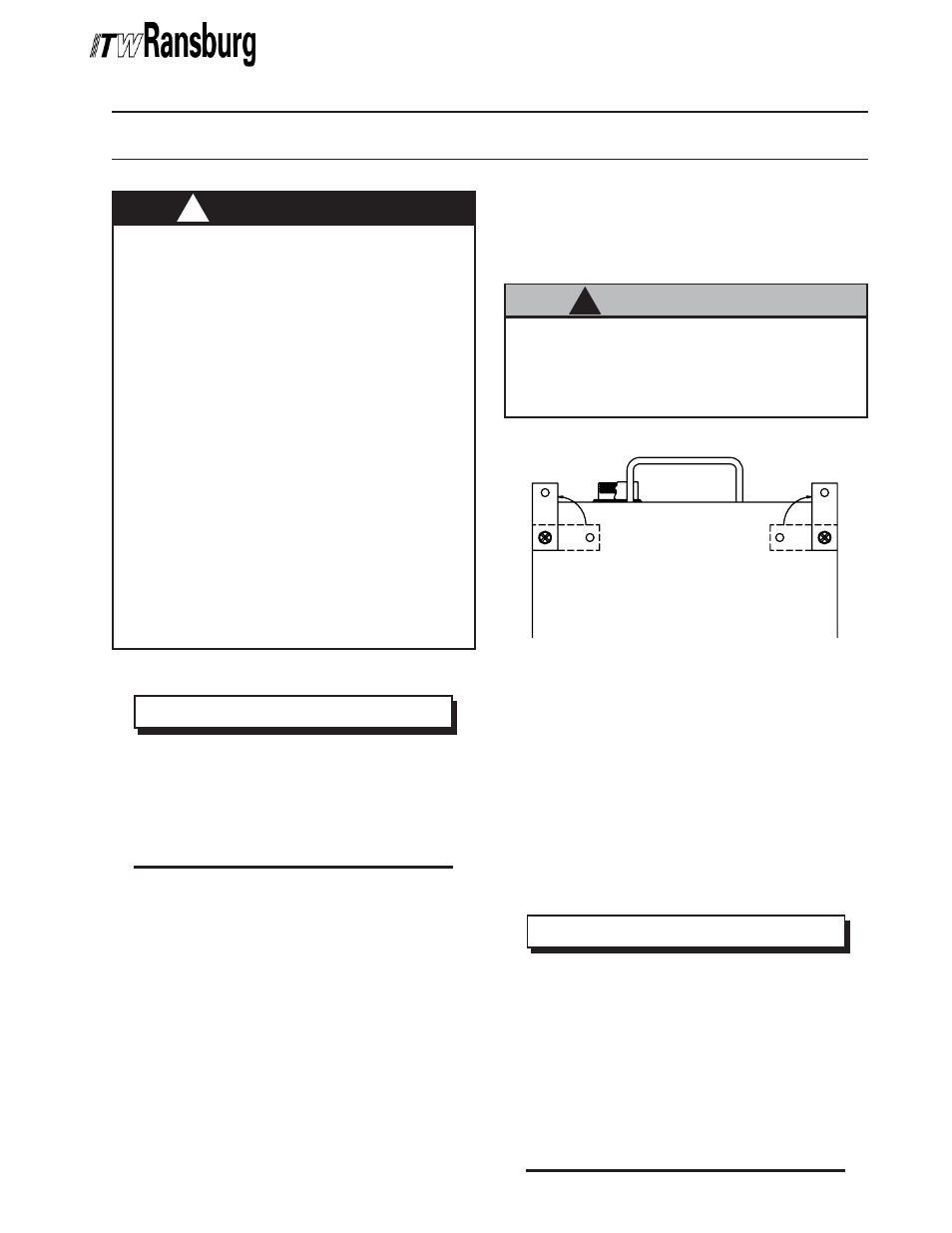

Figure 2: Wall Mount Brackets Figure 2: Wall Mount Brackets Figure 2: Wall Mount Brackets Figure 2: Wall Mount Brackets Figure 2: Wall Mount Brackets
> The 9040 Classic Power Supply MUST MUST MUST MUST MUST
be located outside the hazardous area.
(See NFPA-33, OSHA, and ITW Ransburg
Bulletin - "Operating Your Electrostatic
Coating System Safely".)
> The user MUST MUST MUST MUST MUST read and be familiar
with the "SAFETY" section of this manual.
> This manual MUST MUST MUST MUST MUST be read and thor-
oughly understood by ALL ALL ALL ALL ALL personnel who
operate, clean, or maintain this equipment!
Special care should be taken to ensure that
the warnings and requirements for operat-
ing and servicing safely are followed. The
user should be aware of and adhere to ALL
ALL ALL ALL ALL
local building and fire codes and ordinances
as well as NFPA-33 and OSHA prior to
installing, operating, and/or servicing this
equipment.
W A R N I N G W A R N I N G W A R N I N G W A R N I N G W A R N I N G !!!!!
> As each installation is unique, this infor-
mation is intended to provide general instal-
lation information for the 9040 Classic Power
Supply. Consult your authorized ITW Rans-
burg distributor for specific directions per-
taining to the installation of your equipment.
N O T E N O T E N O T E N O T E N O T E
> DO NOT DO NOT DO NOT DO NOT DO NOT locate the power supply
near or adjacent to heat producing equip-
ment such as ovens, high wattage lamps,
etc.
C A U T I O N C A U T I O N C A U T I O N C A U T I O N C A U T I O N !!!!!
> 9040 units shipped from the factory for
115 VAC input will have a 72771-06, 1 amp
front panel fuse installed. While 9040 units
shipped from the factory for 230 VAC input
will have a 72771-01, 0.5 amp front panel
fuse installed. If the other input is required,
it is recommended that the fuse be changed
in order to keep the same level of protec-
tion. Both fuses are shipped with 9040
Power Supplies.
