RMA-303 Direct Charge - Parts
LN-9266-11.3 88

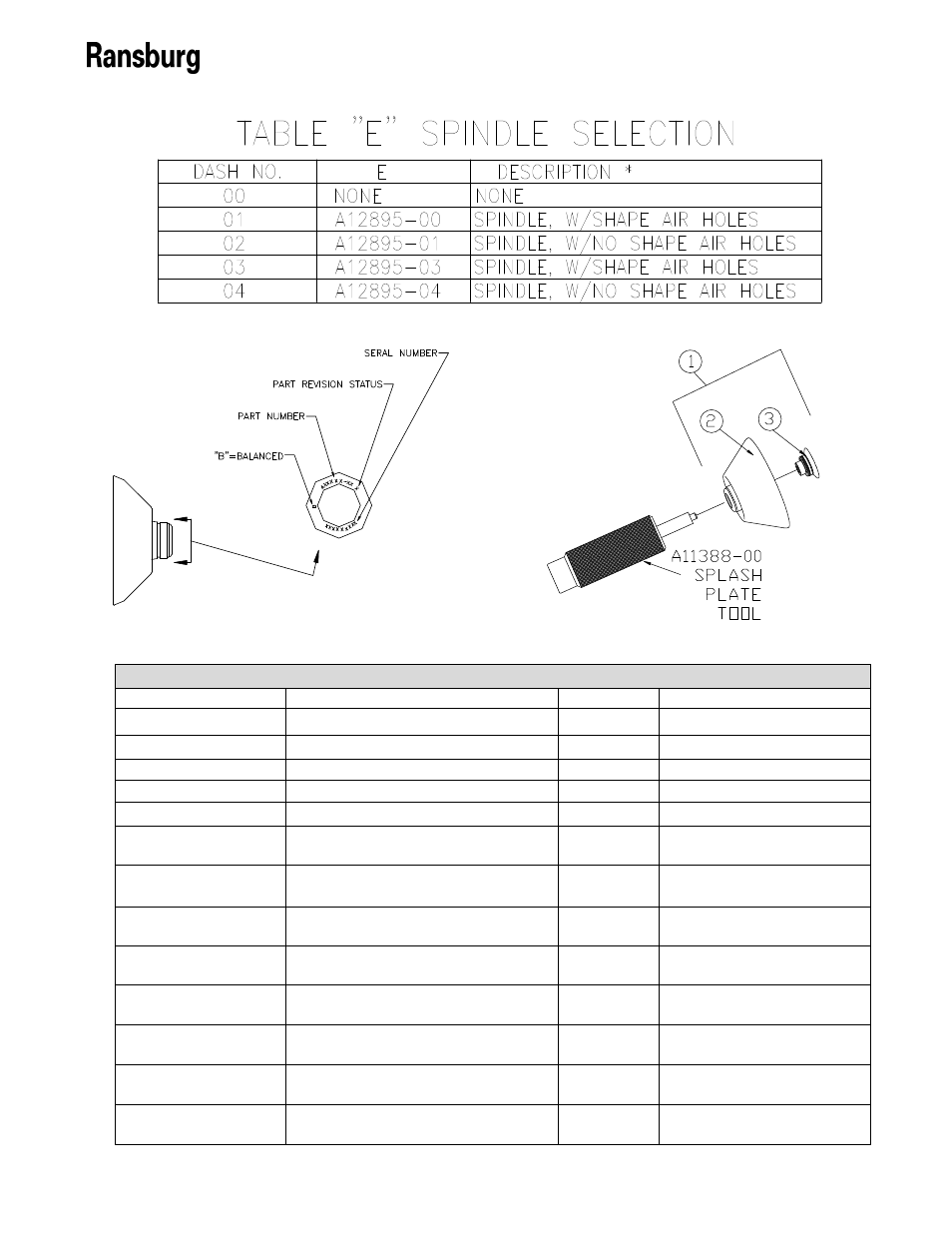

Bell Cup Parts Breakdown
TYPICAL BELL CUP PARTS BREAKDOWN
Complete Assembly 1 Description Cup Only 2 Splash Plate Assembly 3
A11730-00 55mm Titanium Serrated (TISF) A11732-00 A11269-00 (White Color)
A11730-01 55mm Titanium Non-Serrated (TIF) A12522-00 A11269-00 (White Color)
A11738-00 55mm Aluminum Serrated (ALSF) A11782-00 A11269-00 (White Color)
A11968-00 30mm Titanium Serrated (TIS) A11964-00 A11954-00 (White Color)
A11968-01 30mm Aluminum Serrated (ALS) A11964-01 A11954-00 (White Color)
A13114-00
55mm Titanium Serrated Flip Edge
(TISF) (Single Piece Cup)
A13113-00 A11269-00 (White Color)
A13114-01
55mm Titanium Non-Serrated (TIF)
(Single Piece Cup)
A13113-01 A11269-00 (White Color)
A12900-00
65mm Titanium Serrated (TISF)
(Single Piece Cup)
A12886-00 A12071-00 (Black Color)
A12900-01
65mm Titanium Non-Serrated (TIF)
(Single Piece Cup)
A12886-01 A12071-00 (Black Color)
A12900-02
65mm Titanium Serrated (TISF) W/
Long Life Splash Plate
A12886-00 A13004-00 (Black Color)
A12900-03
65mm Titanium Non-Serrated (TIF) W/
Long Life Splash Plate
A12886-01 A13004-00 (Black Color)
A12900-04
65mm Aluminum Serrated W/ Plastic
Splash Plate
A12886-02 A12071-00 (Black Color)
A12900-05
65 mm Aluminum Non-Serrated W/
Plastic Splash Plate
A12886-03 A12071-00 (Black Color)
Bell Cup Part Number / Serial Number
* Customer must verify spindle part number located on outer housing, see page 13.
