RMA-303 Direct Charge - Parts
87 LN-9266-11.3

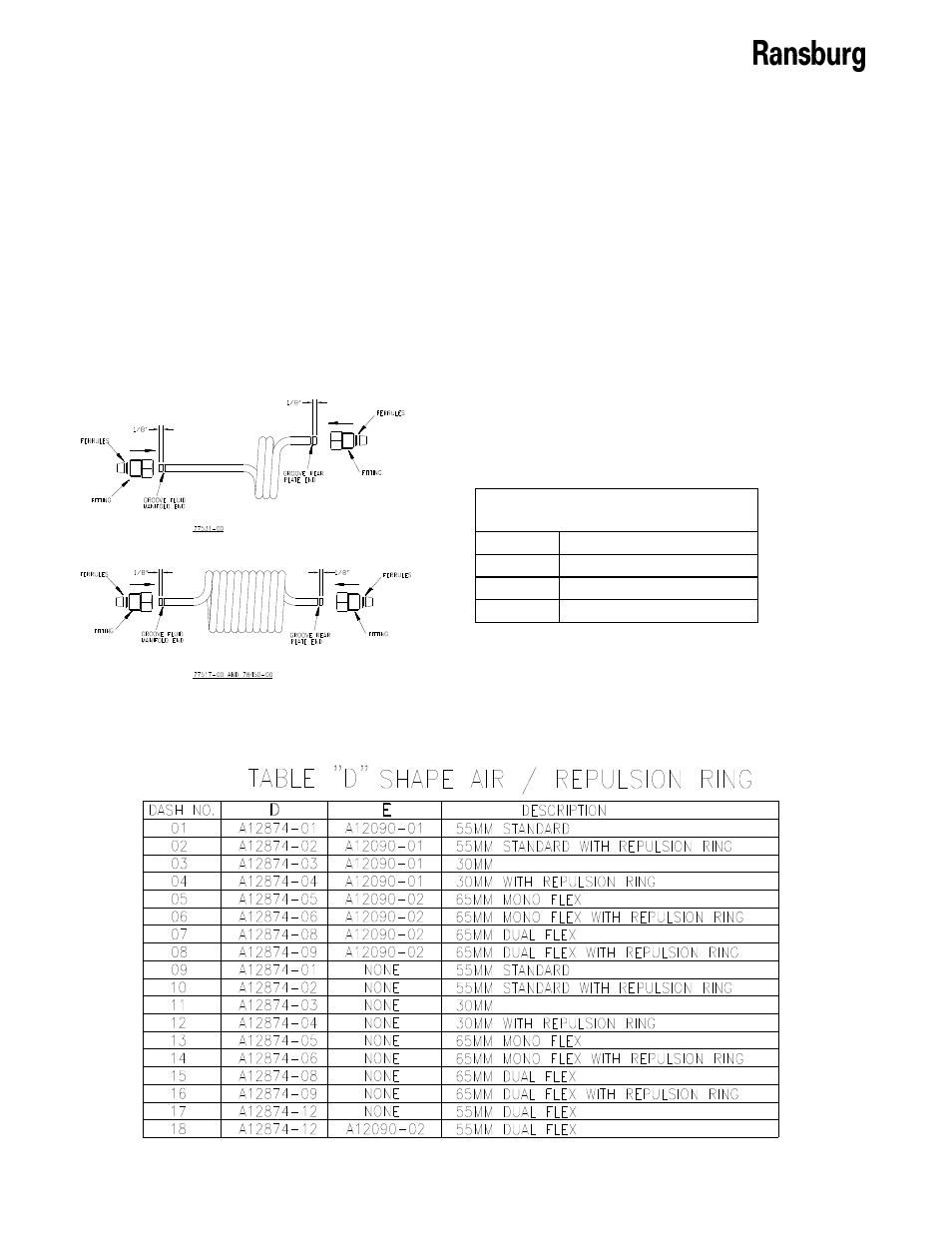

Fluid Coils (Separate Sales Parts Only)
If purchasing spare parts, they must be modi-
fied as explained.
To ensure proper sealing and holding, the fit-
tings require that the ends of the fluid coils
have a groove cut into them as shown. Use
groove cutter A11567-00, by sliding the end of
the tool over the tubing until it bottoms out.
Hold the tubing in one hand and the tool in the
Fluid Coils
Fitting and Ferrule Replacements
Part # Description
78449-00 Fluid Fitting
EMF-203-04 Front Ferrule
EMF-202-04 Rear Ferrule
other. Make three complete revolutions of the
tool on the tubing in the direction of the arrow
stamped on the tool. To remove the tool, hold
the tube and the main body of the tool with
one hand, slide the rear portion of the tool
back until it stops. Pull out the tubing from the
end of the tool. By pulling back the rear por-
tion of the tool, it relieves the pressure of the
cutting edge off of the tubing before sliding it
out. Trim off ends to dimensions shown. End
should be cut off square. Slide the fitting and
ferrules onto the tube as shown. The tapered
ferrule must go past the newly cut grooved to
properly lock into place when installed.
