LumaStream THEA 56 User Manual
Page 3

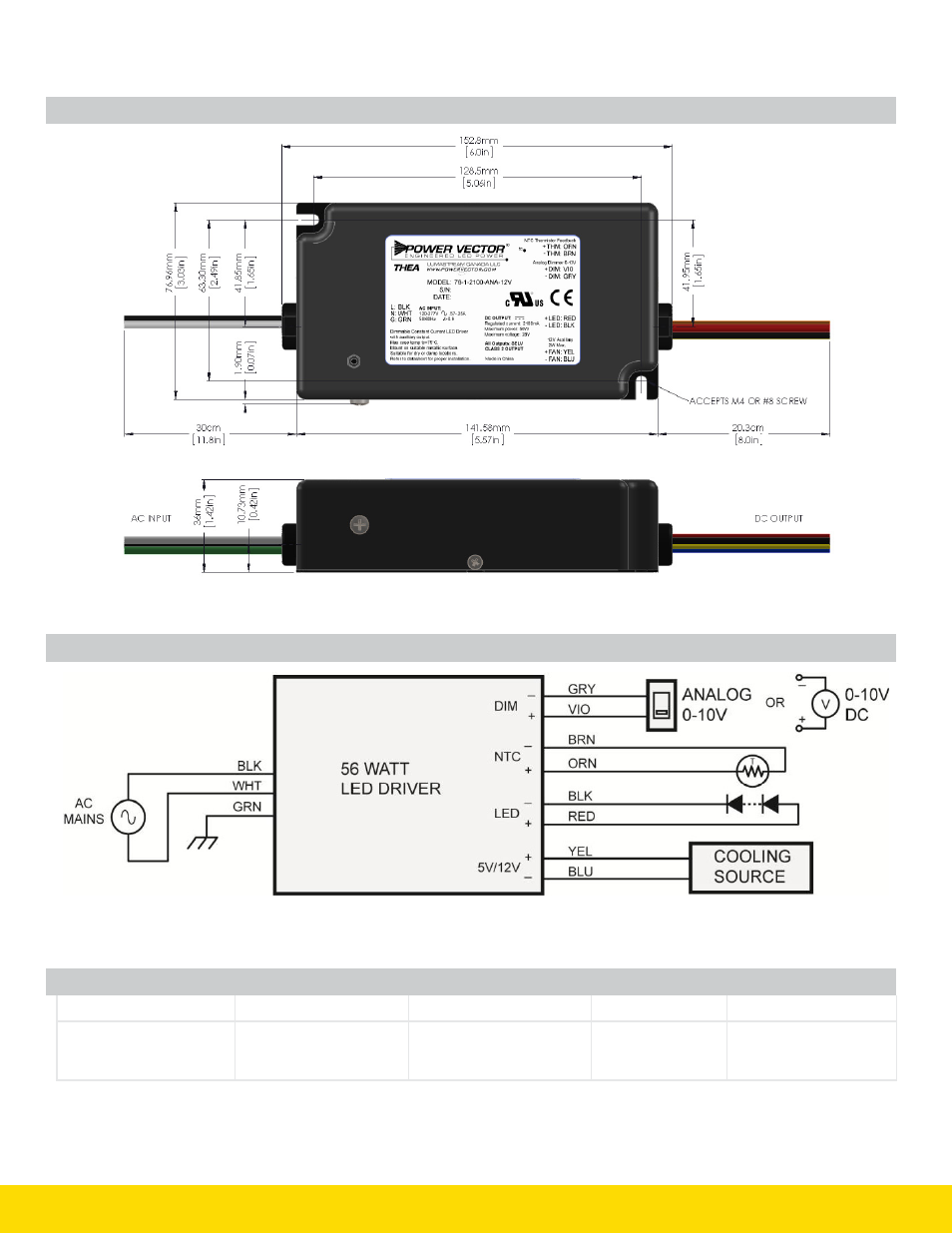

Mechanical Features
Wiring Diagram
LSPS05 / THEA 56
Input and Output Connections
Input Connection
Output Connection
Interface Connection
12 V Auxiliary
Thermal Feedback
3 wires, 18 AWG
Line, Neutral, Ground
2 wires, 18 AWG
+LED & -LED
Red & Black
2 wires, 22 AWG
+DIM & -DIM
Purple & Gray
2 wires, 22 AWG
+Fan & -Fan
Yellow & Blue
2 wires, 22 AWG
+NTC & -NTC
Orange & Brown
