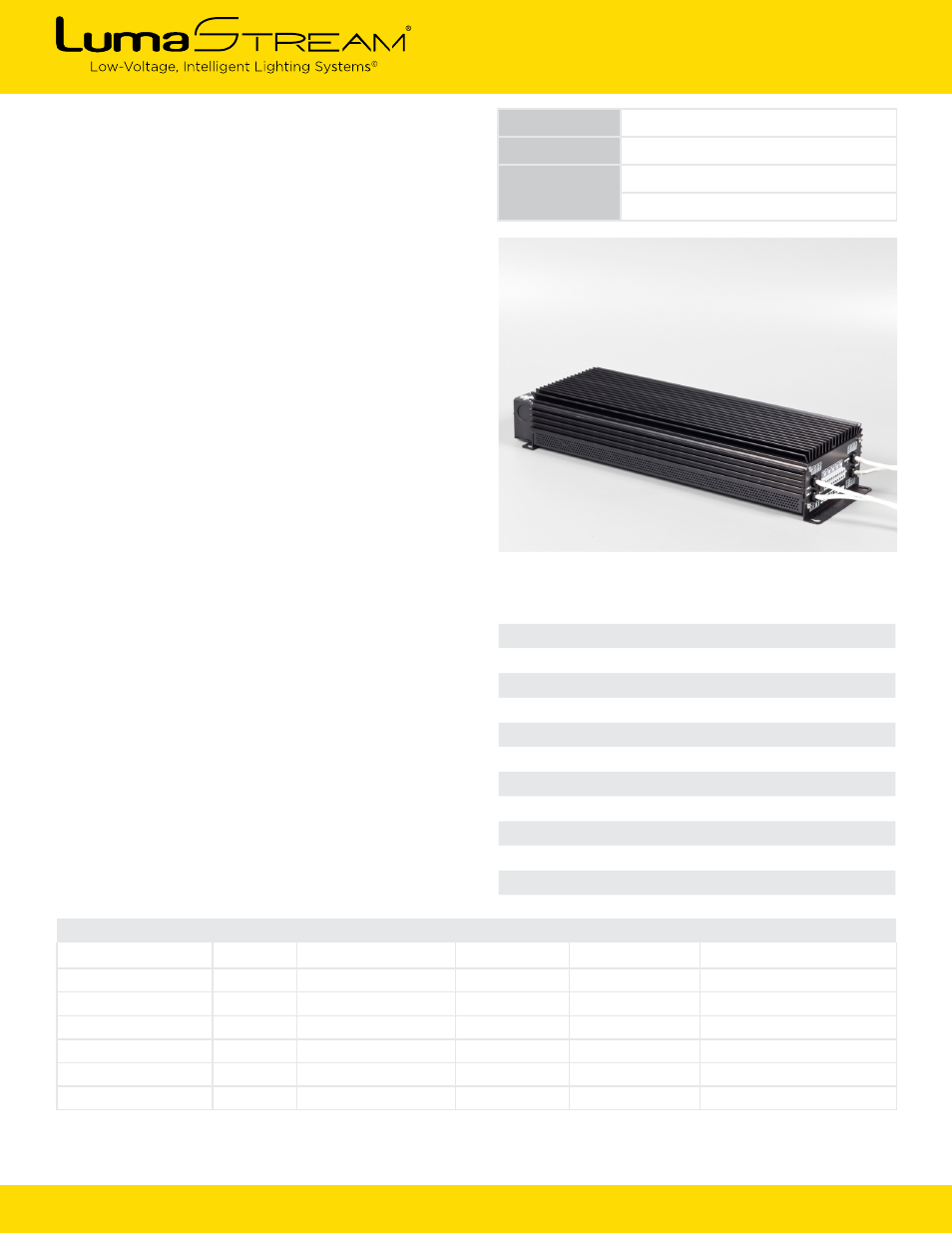

Product Description
The Trinity 12 Analog driver powers LED luminaires
up to 200 ft. away, sending clean power and analog
dimming control over a single Class 2 wire.
The Trinity 3-in-1 platform combines digital power
conversion, constant current drivers, and superior
dimming control into one cohesive LED power supply.
The Trinity 12 Analog 4 Zone offers up to 12
configurable output channels that can br grouped in
up to four control zones.
Ideal applications: retail, restaurant, hospitality,
architectural lighting.
Key Features
Trinity 12
Analog 4 Zone
LED Lighting Driver Dimmer
Digital low-voltage power
distribution with analog
dimming control for LEDs.
Schedule ID
Part Number
Notes
•
Powers LED luminaires up to 200 ft. from driver
•
Up to 12 configurable output channels
•
0-10V lighting control
•
Smooth, flicker-free dimming to 0.2%
•
Digital AC/DC power conversion
•
Drive currents from 300 mA to 700 mA
•
87% efficiency rating
•
Centralized surge protection
•
Up to 226 watts total output power
•
Reduces heat at fixture; protects LEDs
•
UL listed; RoHS compliant
Model Options
Model #
Channels
Rated Input Current Drive Current Output Voltage
Output Power /Channel
70-12-0300-ANA-3
12
2.7 - 1.0 A
300 mA
12 - 47 Vdc
3.6 - 14.1 W
70-12-0350-ANA-3
12
2.7 - 1.0 A
350 mA
12 - 47 Vdc
4.2 - 16.2 W
70-09-0400-ANA-3
9
2.7 - 1.0 A
400 mA
12 - 47 Vdc
4.8 - 18.8 W
70-09-0500-ANA-3
9
2.7 - 1.0 A
500 mA
12 - 47 Vdc
6.0 - 23.5 W
70-06-0600-ANA-3
6
2.7 - 1.0 A
600 mA
12 - 47 Vdc
7.2 - 28.2 W
70-06-0700-ANA-3
6
2.7 - 1.0 A
700 mA
12 - 47 Vdc
8.4 - 32.9 W
