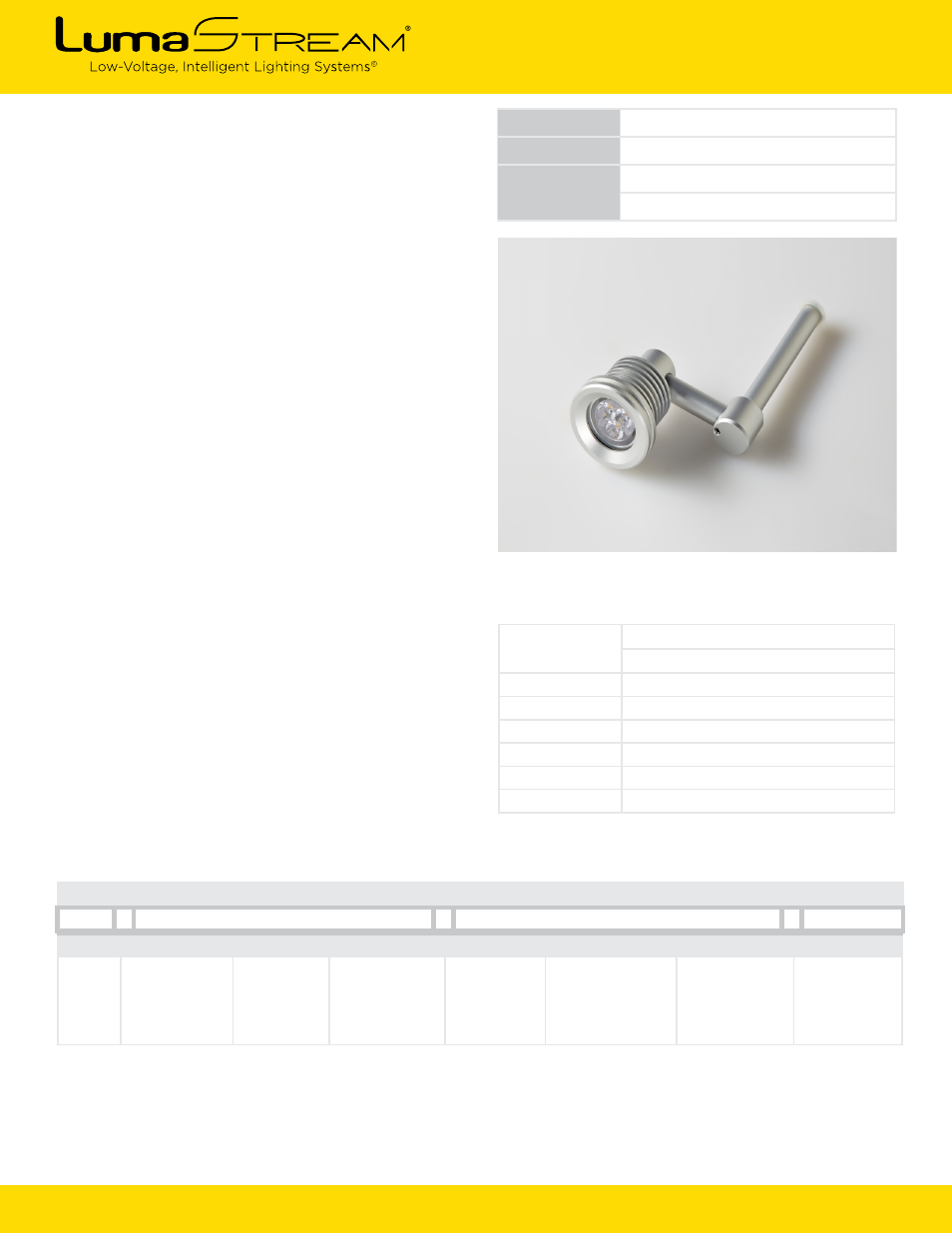

LumaStream Dual Angle User Manual
Dual angle, Projection led

Product Description
This fully dimmable low-voltage LED fixture features
full adjustment capabilities on two axis, ideal for
custom light positioning. It is available in two LED
array options, with three (R3) or four (R4) white
diodes. The fixture contains no electronics. All
dimming control, power conversion and constant
current drivers are housed in a remote DC, Class 2
intelligent power supply which can be located up to
200 ft. away from fixtures.
Ideal applications: hospitality, retail, architectural
lighting.
Performance Summary
Light Output
R3: 431-553 lumens
R4: 581-745 lumens
Drive Current
500 mA, 700 mA
CRI
82 standard
CCT
2700K, 3000K, 4000K
Lifetime
50,000+ hours
Warranty
5 year limited warranty
Dimming
Dimmable to 0.2%
Dual Angle
Projection LED
Full adjustment capabilities on
two axes for custom lighting.
Schedule ID
Part Number
Notes
Base
Beam
CCT
Lens
Arm Extend Base Arm
Mount
Finish
R3DA
R4DA
0 None
N Narrow
(10)
M Medium
(25)
W Wide
(40)
27 2,700K
30 3,000K
40 4,000K
C Clear
S Soft diffuse
(6%)
F Full
02 2” Arm
04 4” Arm
02 2” Base Arm
04 4” Base Arm
02 2” Canopy
05 5” Canopy
C Clear
(brushed aluminum)
W White
Ordering Information
Example: R3DA-N30S-0202-W
RXDA -
-
-
© 2014 LumaStream
www.lumastream.com
+1 (727) 827-2805
