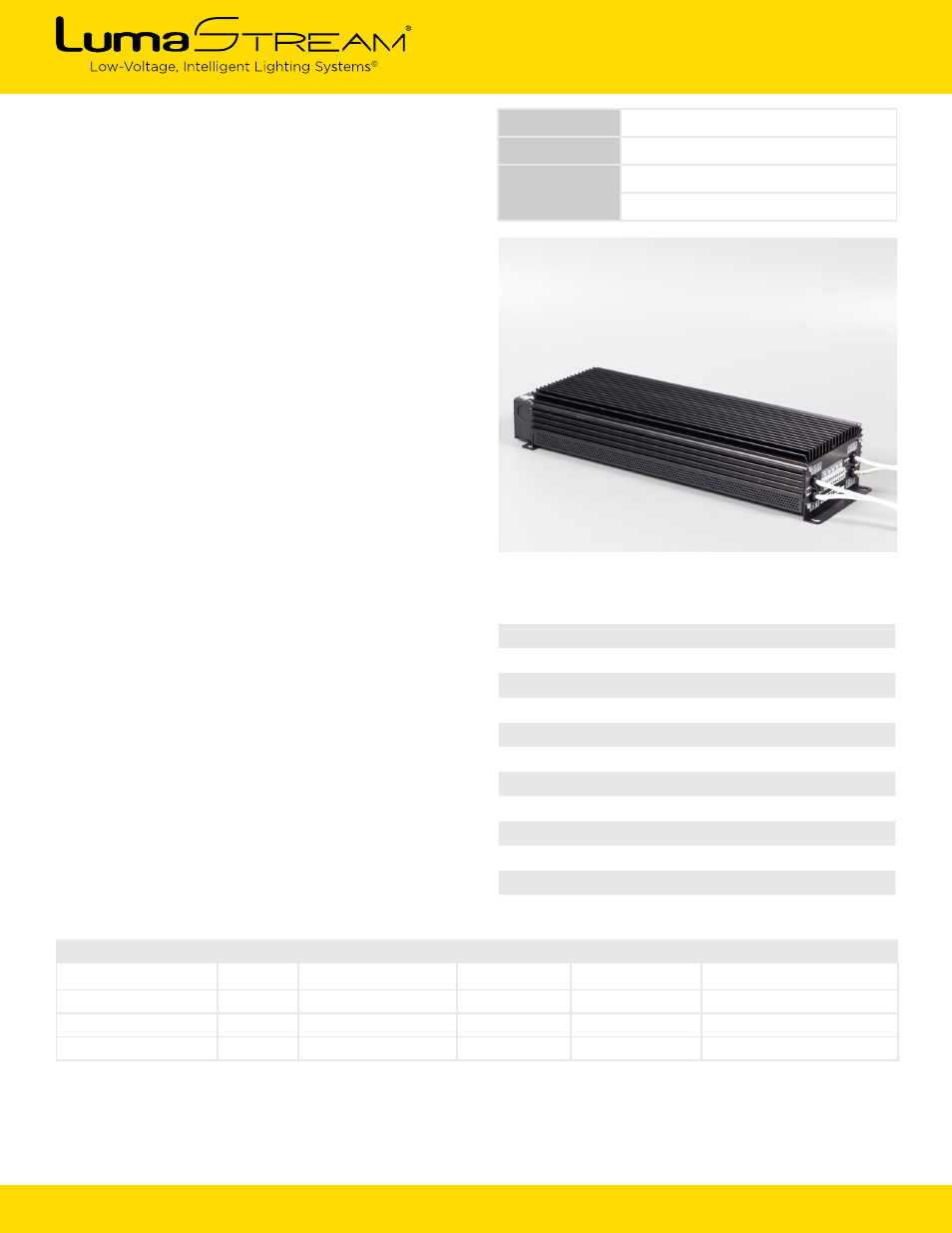

LumaStream Trinity Analog Power Cord - Manual

Product Description
The Trinity PC Analog LED Driver/Dimmer is a
controlled power source for Solid State Lighting
applications providing the ultimate in energy
efficiency performance capable of driving and
dimming multiple LED lighting fixtures.
The Trinity 3-in-1 platform combines digital power
conversion, constant current drivers, and superior
dimming control into one cohesive LED power supply.
The LumaStream core processor maximizes the
efficiency of AC/DC power conversion at multiple
stages, providing remarkably high power efficiency
maintained across a wide range of dimming levels.
Ideal applicatio Ideal applications: hospitality, retail, multi-family
dwellings, home theater, architectural lighting.
Key Features
Trinity PC
Analog
LED Lighting Driver Dimmer
Powerful remote LED driver
with power cord for easy
installation.
Schedule ID
Part Number
Notes
• Powers LED luminaires up to 200 ft. from driver
• Up to 12 configurable output channels
• 0-10V lighting control
• Smooth, flicker-free dimming to 0.2%
• Digital AC/DC power conversion
• Drive currents from 700 mA to 1400 mA
• 87% efficiency rating
• Centralized surge protection
• Up to 243 watts total output power
• Reduces heat at fixture; protects LEDs
• UL listed; RoHS compliant
Model Options
Model # Channels Rated Input Current Drive Current Output Voltage Output Power /Channel
66-12-0700-ANA-PC 12 2.4 - 2.2 A 700 mA 6 - 27 Vdc 4.2 - 18.9 W
66-09-1000-ANA-PC 9 2.4 - 2.2 A 1000 mA 6 - 27 Vdc 6.0 - 27.0 W
66-06-1400-ANA-PC 6 2.4 - 2.2 A 1400 mA 6 - 27 Vdc 8.4 - 37.8 W
© 2014 LumaStream www.lumastream.com +1 (727) 827-2805
