Note: Do not touch the socket contacts.
5 If a protective cover is installed on the load plate, remove first
before installing the processor. If not, then proceed to step 6.
Note: Do not discard the protective processor cover. Always
replace the processor cover if the processor is removed from the
socket.
6 Remove the CPU from its protective packaging.

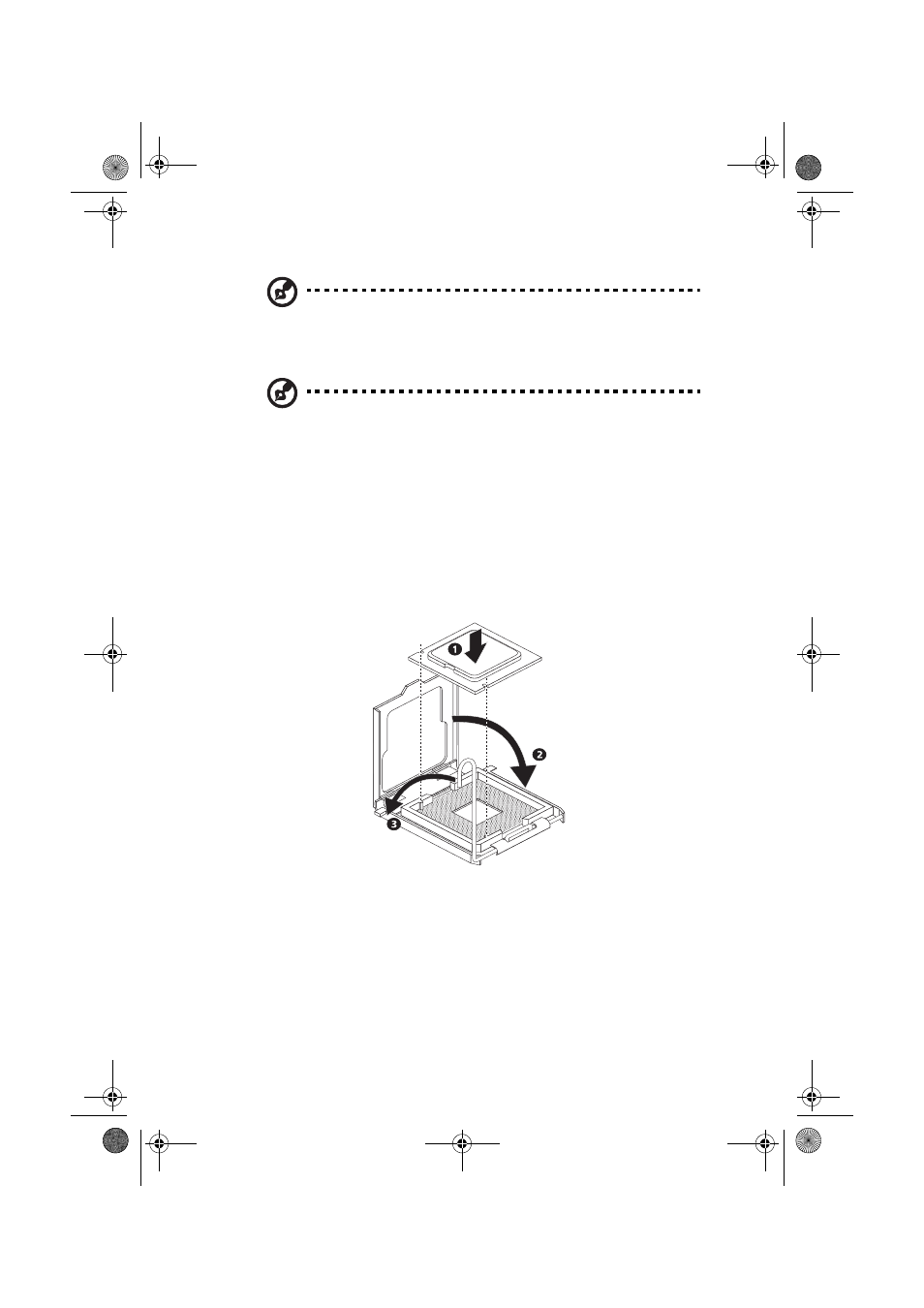

7 Align the CPU with the socket, making sure that pin 1 (indicated
by the notched corner) of the CPU connects to hole 1 of the socket
(on the bottom right corner), then insert the CPU into the socket
(1).
8 Close the load plate (2), then press the retainer lever down to lock
the load plate in place (3).
Installing the HSFD assembly
1 Apply thermal grease.
Apply approximately 0.1 ml of the thermal grease compound on
it’s top side.
2 Install the HSFD assembly
