CAUTION
NOTICE (NOTE)
These international safety symbols are used
throughout this manual to inform the owner of
important safety information and notices for
safe and effective use of the equipment.
Important Safety Instructions
CAUTION
Under NO circumstances should anyone enter •
the water with the electrical equipment con-
nected and/or in operation. It is NEVER rec-
ommended to enter the water with the equip-
ment in operation.
Caution should be used when dealing with any
•
electrical equipment with moving parts.
NEVER run the unit out of water. It will dam-
•
age the seals and create a dangerous situation
for the operator.
Extreme caution should be used around water,
•
especially cold water, such as in Spring, Fall,
and Winter, which poses a hazard in and of
itself.
NEVER lift or drag the unit by the power or
•
light cord. If you need to pull the unit to the
side of the pond, use the anchoring ropes.
Do not use waders in deep ponds/lakes or
•
ponds/lakes with drop-offs, drastic slopes, or
soft bottom material.
Do not use boats that tip easily for fountain
•
installation, such as a canoe, and follow all
boating safety rules and regulations, including
wearing a PFD. (Personal Flotation Device)
The unit is supplied with an internal ground-
•
ing conductor. To reduce the risk of electrical
shock, be certain that the unit is plugged/con-
nected to an approved RCD (GFCI) protected
circuit.
Means for disconnection must be incorporated
•
in the fi xed wiring in accordance with local and
national wiring rules.
Consult a qualifi ed electrician for electrical
•
installation.
Unit Specs
Model Voltage
range
Operating
amps
lock rotor
amps
2400EVX 208-240 2.2@220V 6@220V
3400EVX 208-240 3.6@220V 9@220V
4400EVX 208-240 5.9@220V 20@220V
2400EJ 208-240 2.2@220V 6@220V
3400EJ 208-240 3.8@220V 9@220V
4400EJ 208-240 6.5@220V 20@220V
Quick Disconnect Installation
Important – Read Carefully Before Installation
Before using the connector, it is important that these
instructions are carefully read and understood to
ensure the connector system is completely water tight
and electrically safe.
IF IN DOUBT CONSULT A QUALIFIED ELECTRI-
CIAN.
The socket (female) insert of the connector must be
the live part of the connector from the supply. The pin
(male) insert of the connector must lead to the load or
electrical device. On 50Hz units, the pin (male) insert
of the connector is installed at the factory. To ensure
effi cient sealing, use only smooth circular cable.

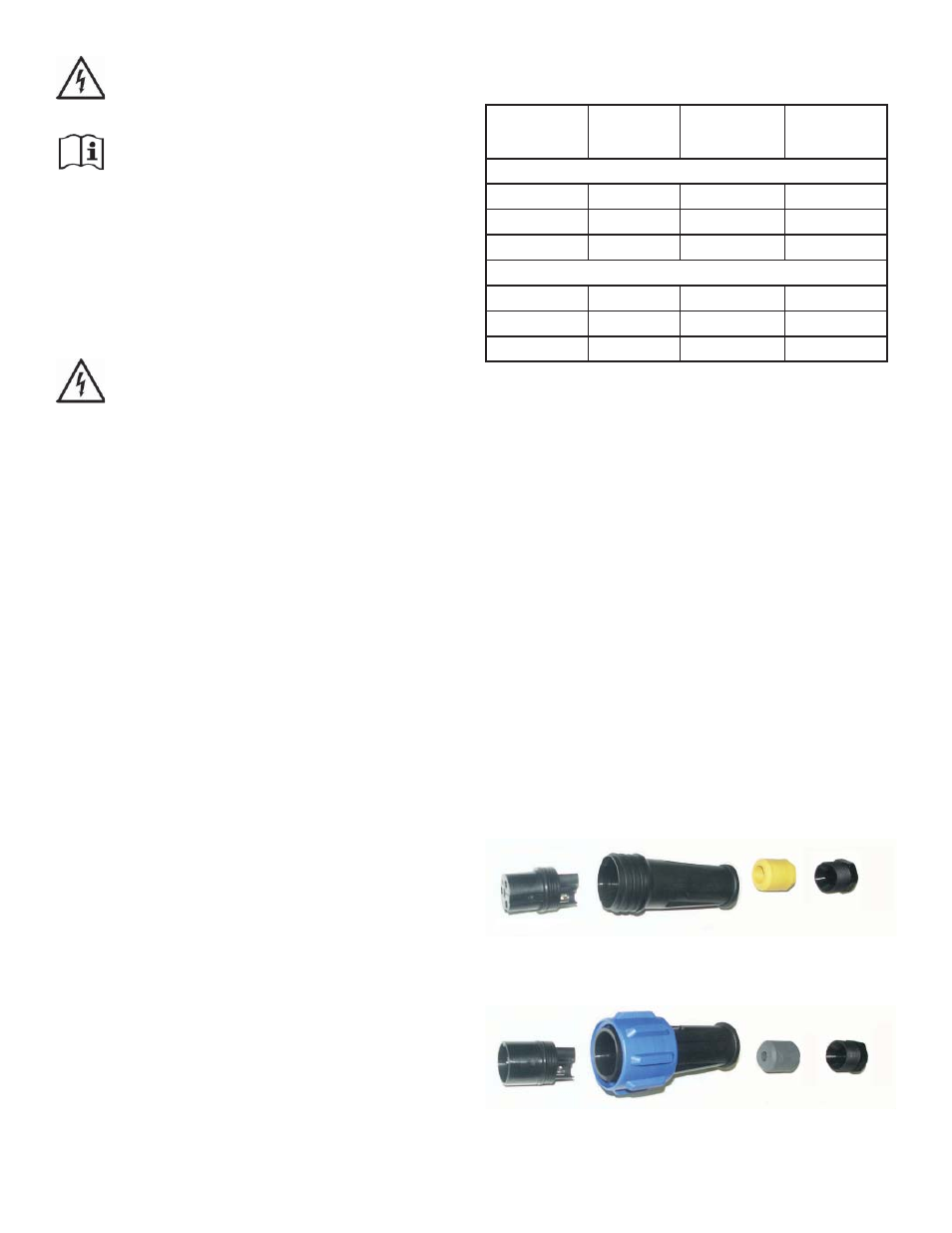

Pin Insert (Installed on Stub Cord)
Pin Insert
Main Body
Gland
Gland Nut
Socket Insert (User Installed)
Socket insert
Main Body
Gland
Gland Nut
