oring

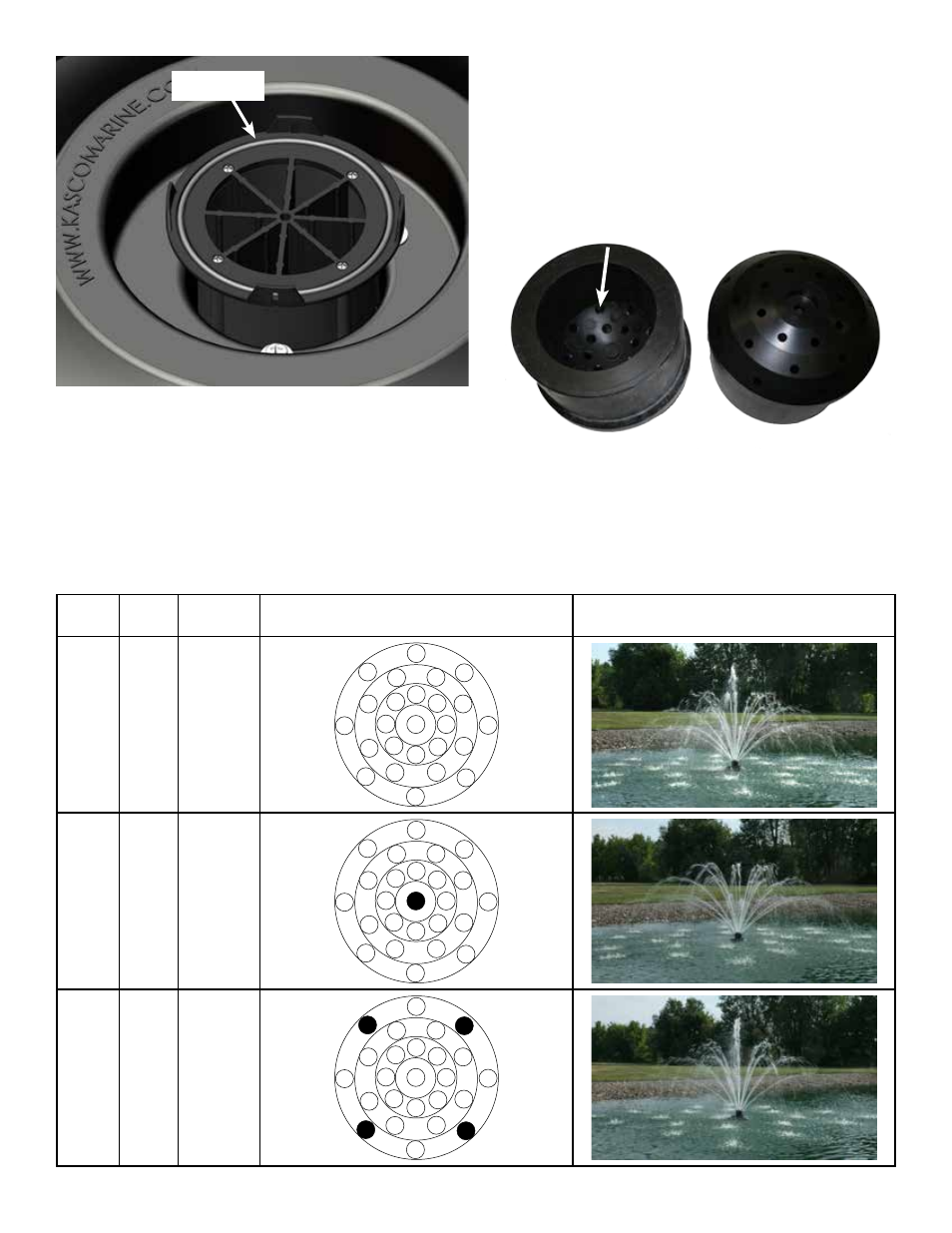

3. Prepare the nozzle before installing using the
nozzle choice chart. Different patterns are created by
plugging or removing plugs from the inside holes in
the nozzle. After using the chart and nozzle pictures to
choose a pattern, push plugs into the holes shown with
black circles on the chart. The number of possible
patterns are not all shown on the following chart.
Nozzle Option Chart:
Pattern
#
Height
(ft)
Width (ft) Plug diagram (black circles show plug
locations)
1 6 18
2 4.5 18
3 6.5 18.5
Important:
Push in black plugs on the inside of the
nozzle only.
Plugs on Inside
