3
19. #6 x 1/2” screw (4)
20. #6 flat washer (4)
1
2
11
10
9
4
12
8
7 6 5
13
14
15
19
20
16
3
10
11
Also Included:
• Cord in separate box (1) (150’ or 200’ cords only)
• Control Box (C-25) (1) (Not Pictured)
TOOLS & SUPPLIES NEEDED
• Anchors or stakes for installing unit (2)
• # 2 Phillips head screw driver
• 120V Electrical Supply near pond on a post with
room for mounting the C-25
• Three 12” pieces of 1” galvanized pipe or
weighted tubing for weighting ropes (optional)
• #10 x 1” long or longer screw(s) for mounting the
C-25 (3)
• 7/16” Socket and Ratchet (for 1/4” fasteners)
• 7/16” Wrench (for 1/4” fasteners)
• 11/32” wrench (for #8 fasteners)
from hard water deposits and/or algae. (See Maintenance
Recommendations.)
It is extremely important that proper and sufficient voltage
(120V) is supplied to the Fountain motor. Each 120V
Fountain is supplied with a UL and CSA approved C-25
GFI Protected Control Box. The Fountain is to be plugged
into the C-25 outlet labeled “UNIT” and the C-25 plugged
into a properly grounded receptacle (See C-25 Instructions).
It is extremely important to test the GFI breaker in the
control panel upon each installation and reinstallation and
every month thereafter to ensure proper operation.
Kasco Fountains are lightweight, energy efficient, and easy
to install and operate. We strive to produce products that
exceed customer expectations. We hope you enjoy your
Kasco Fountain.
Cord Gauge Chart
Length Gauge
50’ 16
100’ 14
150’ 12
200’ 12
Unit Specs
Model Voltage Amps Lock
rotor
amps
Control
box con-
nection
Fountain
connec-
tion
2400SF 110-120 6.6 - 7.3 18 C-25
plug in
Plug into
C-25

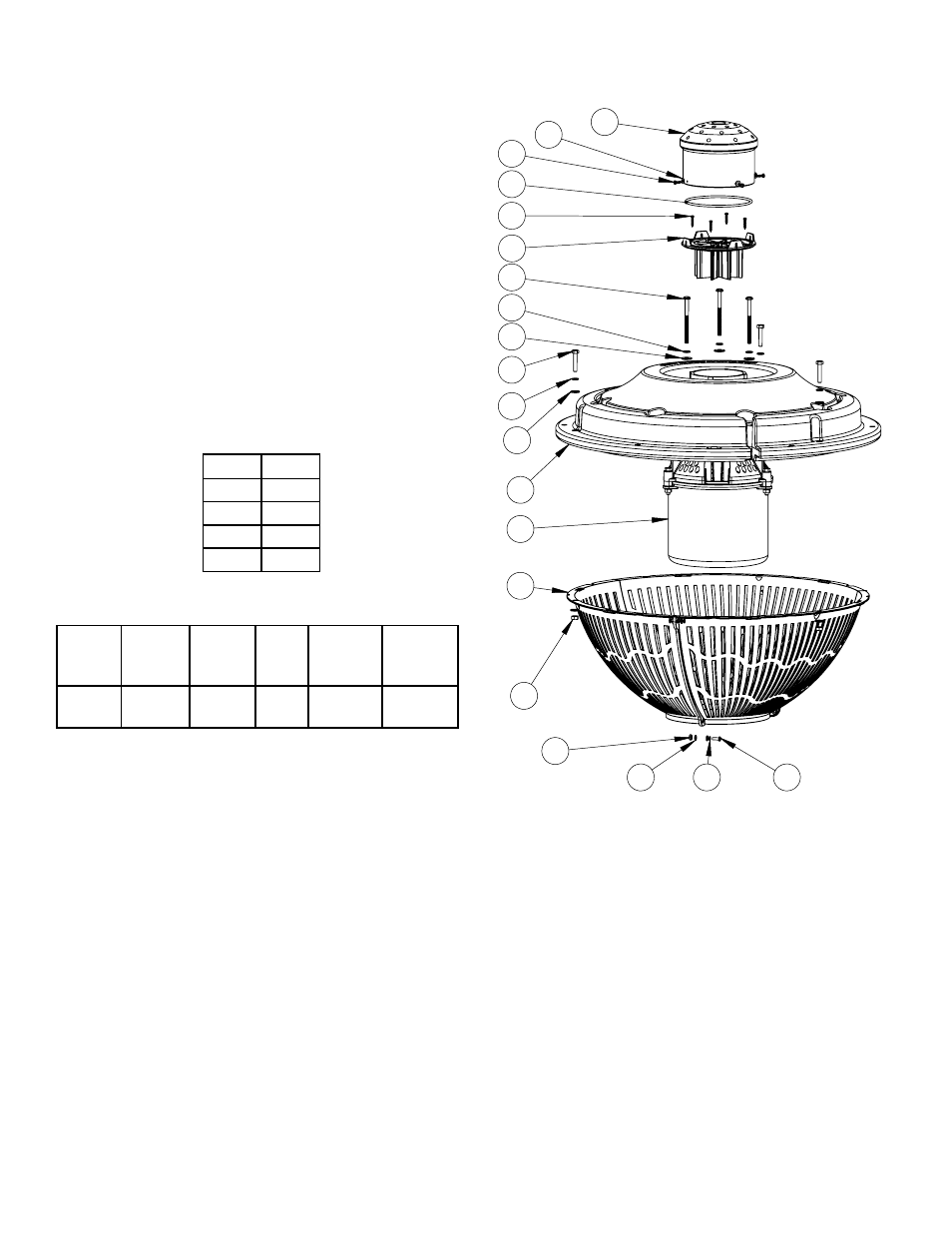

Parts Included
1. 2400SF Aerating Fountain (Unit with cord or unit with
Disconnect) (1)
2. Float (with three 50’ mooring ropes attached) (1)
3. 1/4” x 3 1/4” screw (3)
4. Debris Screen Sections (3)
5. #8 screw (6)
6. #8 lock washer (6)
7. #8 flat washer (12)
8. #8 nut (6)
9. 1/4” x 1 3/8” screw (3)
10. 1/4” lock washer (6)
11. 1/4” flat washer (9)
12. 1/4” nut (6)
13. Flow staightener (1)
14. #6 x 3/4” screws (4)
15. Oring (1)
16. Nozzle (1)
17. small plugs for nozzle (20) (not pictured)
18. Large plug for nozzle center hole (2) (not pictured)
