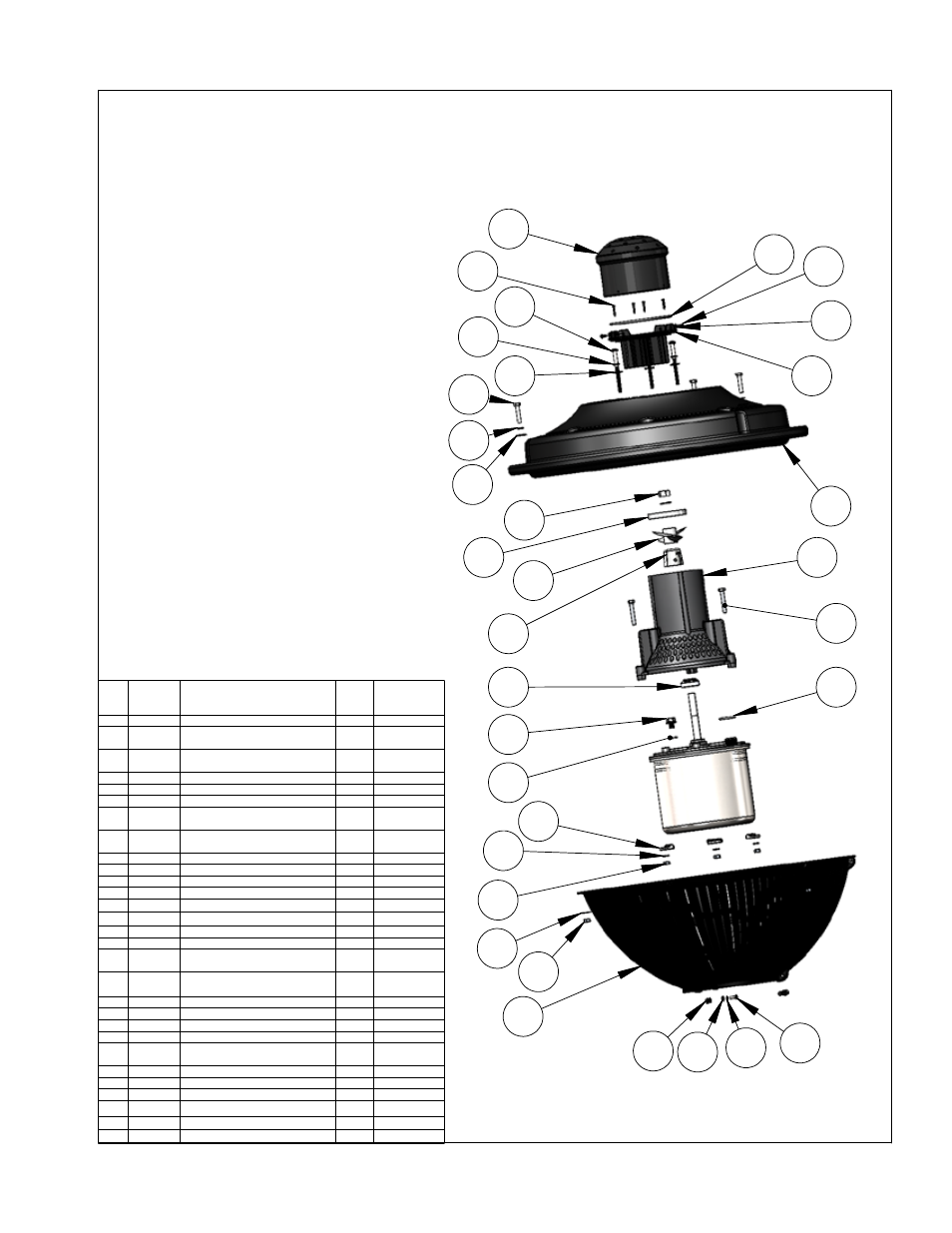

2400SF REPLACEMENT PARTS
30
ITEM
NO.
PART
NUMBER
DESCRIPTION QTY.
TORQUE
VALUES
3 140112 PUMP HOUSING, LOWER 1
4 361110 PROP, 1/2HP, HIGH SPEED
FOUNTAIN
1 HAND TIGHT
5 361115 DISC, 1/2HP, HIGH SPEED
FOUNTAIN
1
6 361500 FLOAT, 1/2 HP 1
7 251300 FLAT WASHER, 1/4" 9
8 840537 LOCK WASHER, 1/4" 9
9 251200 1/4-20 X 3-1/4 PHIL PAN
HEAD
3
10 241024 WASHER, 1/2IN, BRONZE,
INTERNAL TOOTH LOCK
1
11 243475 ZINC ASSEMBLY 1 20 IN LBS
12 462237 1/2 - 20 waxed nut SS 1
13 361310 FLOW STRAIGHTENER 1
14 361320 NOZZLE, 1/2 HP FOUNTAIN 1
15 361313 Oring, 1/2 hp nozzle 1
16 840536 NUT, 1/4-20 6 50 IN LBS
17 584692 1/4-20 X 1-3/8" BOLT 3
18 361543 #8 flat washer 12
19 820405 SCREW, #6x1/2 IN, PH PHIL,
ULTRA SS
4
20 771033 Washer, #8 split lock, black
oxide
6
21 475630 1/4-20 X 1-3/4" LONG BOLT 3
22 140312 RETAINING CLIP 3
23 334306 SCREW, TYPE AB 4
24 334300 #6 washer 4
25 990410 DEBRIS FLINGER, .500 DIA.
SHAFT
1
26 990275 O RING, CORD 1
27 990280 SEALING PLUG 1 15 IN LBS
28 990281 O RING 1
29 361540 SCREEN, 1/2 HP HIGH SPEED 3
30 772007 SCREW, #8-32 x 1/2" LONG 6
31 771034 NUT, #8-32 HEX 6
