6
STEP EIGHT
Install the C-25 on the post with the power
supply. Use up to three #10 x 1” long or lon-
ger screws and the molded screw placements
on the C-25. NOTE: The C-25 must be hung
upright in order to be waterproof. Install the
Low Voltage Transformer (if lights are includ-
ed) on the same pole below the C-25 with the
one #6 x 3/4” long or longer screw. NOTE:
The Transformer must be hung upright in or-
der to be waterproof.
STEP SIX

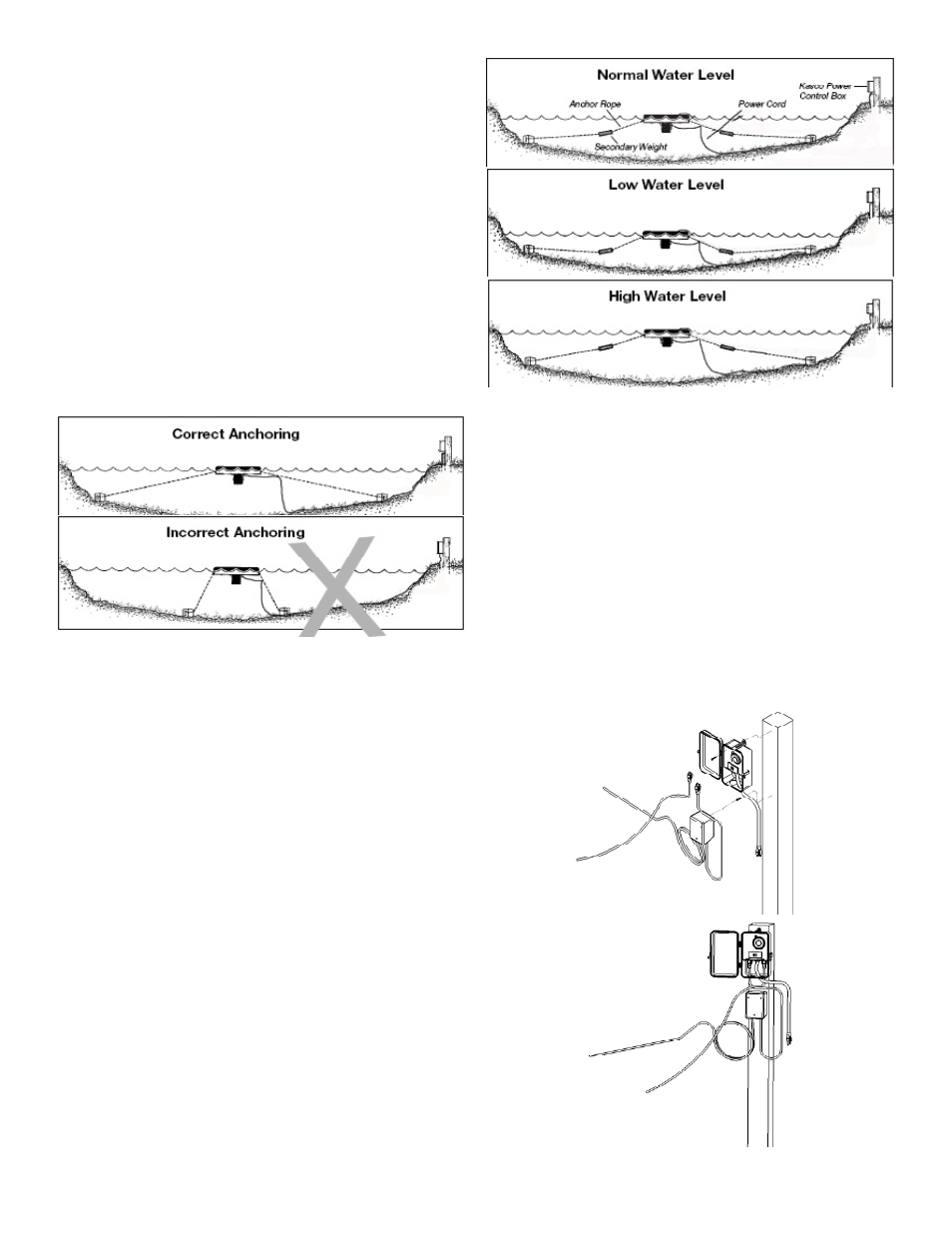

Use the ropes to position the Fountain in the
desired location in the pond/lake. Anchor the
ropes or secure them to the shoreline so the
ropes are free of slack, but not tight. To pre-
vent twisting of the unit due to torque, you
should place the anchor at least 3 feet from the
fl oat for each foot of depth (Ex. A 3 foot deep
pond would require an anchor 9 feet horizon-
tally from the fl oat.) For ease of removal, you
may choose to keep at least one anchor within
reach from shore, just below the water’s sur-
face.
STEP SEVEN
(ALTERNATE INSTALLATION)
In ponds where the water level fl uctuates
signifi cantly, you may need to suspend a small
weight (12” of 1” galvanize pipe works well)
at the mid-point of the rope to take up any
slack as the water level drops. The weight
should be light enough so the Fountain can
rise as the water level rises. This can also help
hide ropes by sinking them further below the
surface.
