Kasco Marine 1400JFL User Manual

Page 5

Eagle’s Nest Nozzle

1/4 –20 x 7/8”

Fillister Head

Screw

STEP FOUR
Install the Fountain into the pond/lake in at
least 12” of water so the unit is fl oating freely.
Support the weight of the unit with the ropes
and/or the fl oat while setting it into the wa-
ter, DO NOT LIFT BY THE CORD. Use the
nylon tie to secure both cords and an adjacent
mooring rope together about 1 foot from the
fl oat to prevent twisting or getting caught in
the unit. Secure the ends of the cords to the
post at the power supply so the ends do not get
dragged into the water.

STEP FIVE
Determine how to anchor or secure the unit in
the pond. You may want to use weights at the
end of each rope (cinder blocks work well) and
sink them to the bottom or secure the ropes to
the shoreline by tying them to a stake or plac-
ing a rock on top of the ropes.

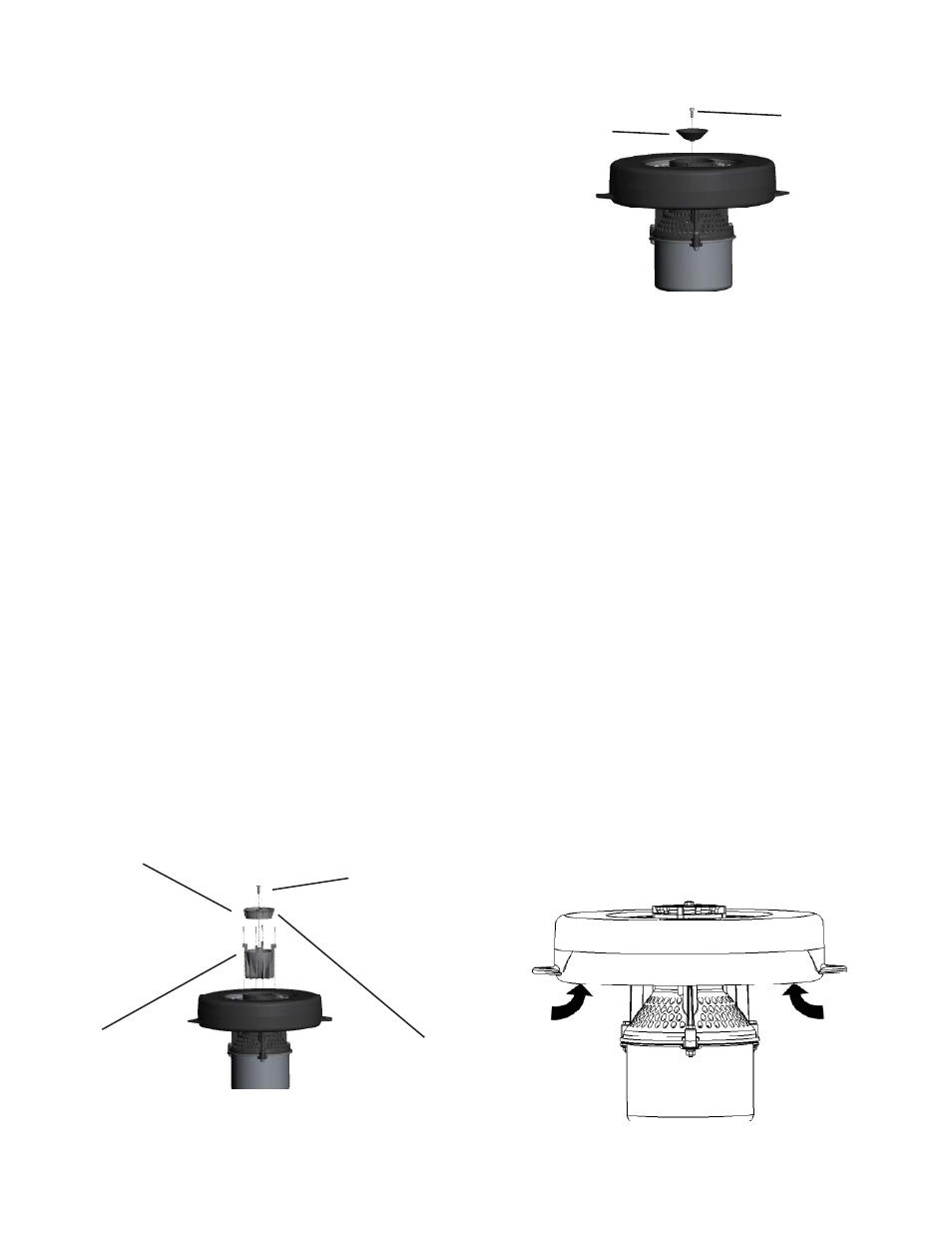

STEP THREE
Locate the 5 nozzles included with the ship-
ment (the Osprey nozzle is already installed
on the fountain, along with the Upper Pump
Housing). Using the Nozzle Options diagram
on page 7, determine which pattern is desired
and the corresponding nozzle. If the Condor
or Falcon patterns are desired, you must re-
move the Osprey Nozzle by removing the 1”
Self Tapping Phillips Head Screw. Replace
the nozzle with either the Condor or Falcon,
re-insert the 1” Self Tapping Phillips Head
Screw and tighten until snug(Diagram A). If
either the Eagle’s Nest or Hawk’s Nest pat-
terns are desired, you must remove the Upper
Pump Housing.

First, remove the 4 Upper Pump Housing
screws. With the Osprey nozzle still attached
to the Upper Pump housing, pull the osprey
nozzle and Upper housing up together. Fi-
nally, remove the 3/8” Fillister head, plastic
set screw in the top of the 4 Blade Prop. Place
a slight amount of pressure on the new nozzle
when in place and tighten the 1/4-20 x 7/8”
Fillister head screw until snug. Do not over
tighten. (Diagram B)

1” Self Tapping

Phillips Head Screw

#6 x 3/4” Fillister

Head Upper Pump

Housing Screws

Upper Pump Housing

Osprey Nozzle
