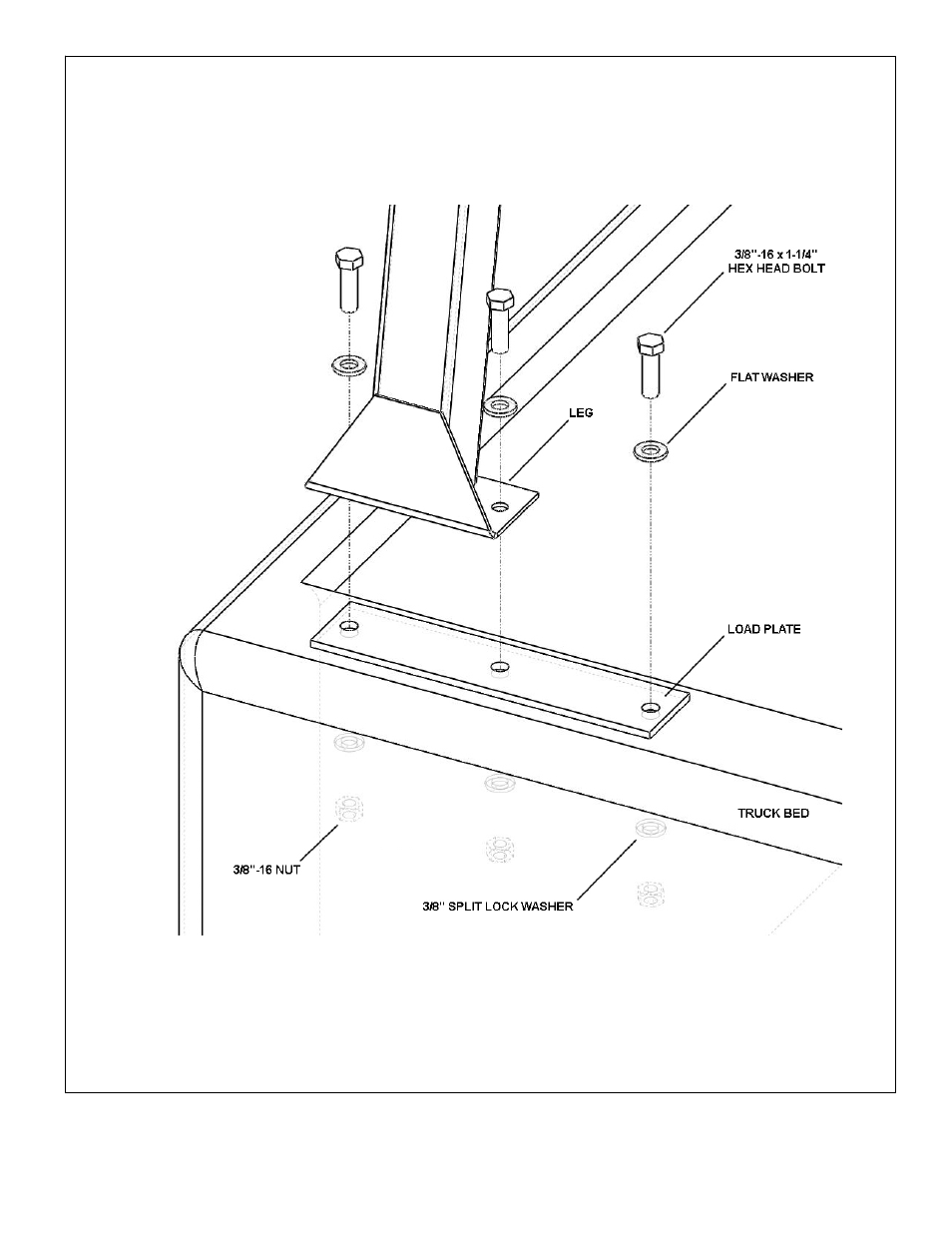

Step 3 Leg placement on bed
Drill out the three marked holes marked on the tape with a 3/8” drill and remove tape from the truck bed.
Use silicone and apply a bead around each bolt hole.
Place the load plate down first and then position the leg over the plate and align the bolt holes.
Secure the leg and load plate to the bed with (3) bolts, (3) Flat washers, (3) split lock washers and (3) nuts.
NOTE: The flat washer go on the top surface and split lock washer mount underneath the bed rail.
Repeat for other legs.
