1.11 The Setup Display

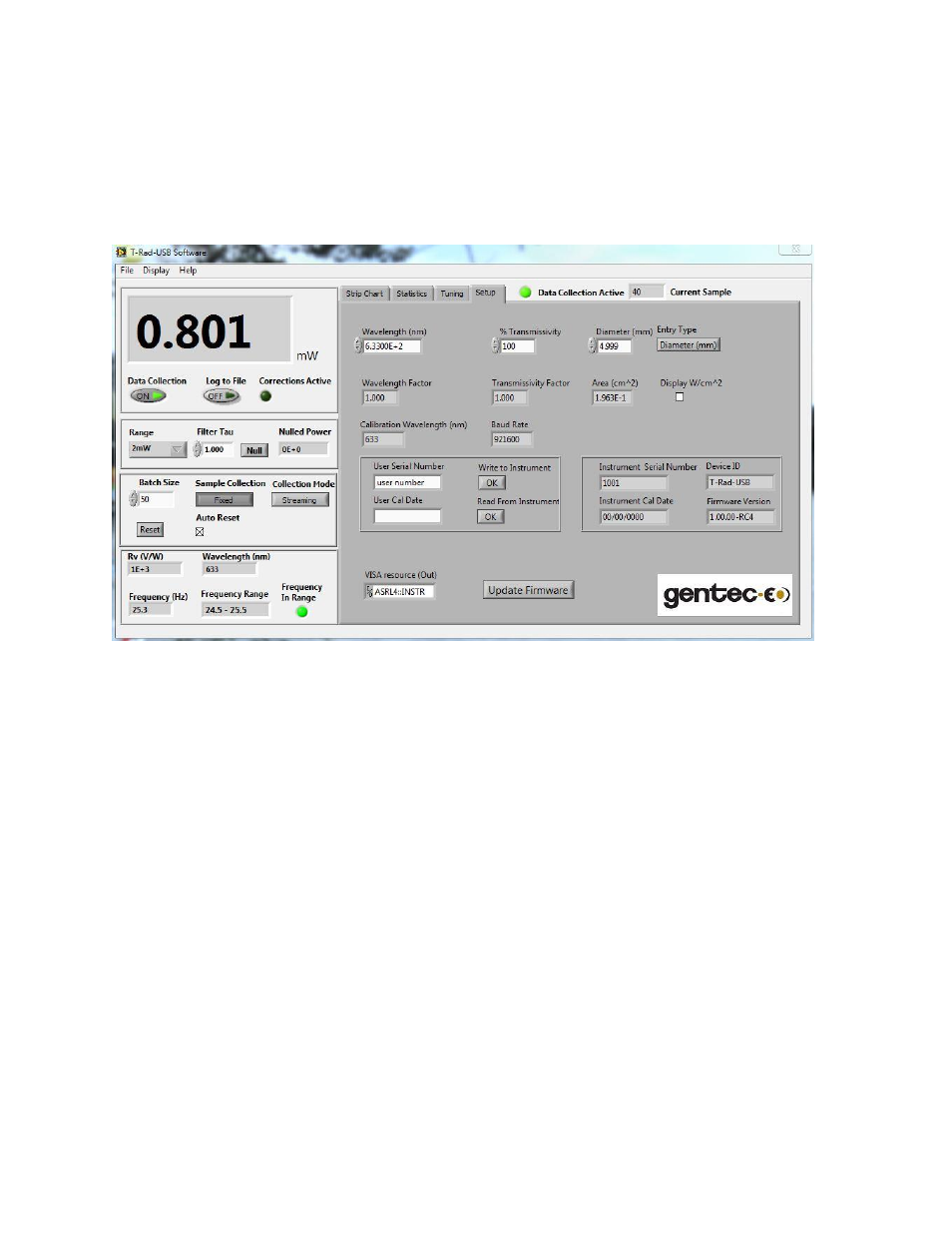

The Setup Display is visible to the user when its tab is selected. It contains Controls and
Indicators for the Setup.
1.11.1 Setup Controls
The Controls on the Setup area are:
Wavelength (nm)
% Transmissivity
Diameter (Area)
Entry Type
Display W /cm^2
User Serial Number
User Calibration Date
Write to Instrument
Read From Instrument
Zero Baseline
Reset Instrument
Update Firmware
1.11.2 Wavelength (nm)
Enter the Wavelength of the light source being measured.
Wavelengths other than the calibration wavelength may result in wavelength corrections being
applied. If corrections are applied, the Corrections Active LED will illuminate.
To view the wavelength response of the sensor, use the Display menu item.
Note: The wavelength correction factors are not absolute but rather represent an approximate value.
