T-RAD-DB15--USB Instruction Manual Version 2.1 December. 2012 25
Min and Max Tracking Cursors can be set using the Display Options Menu.

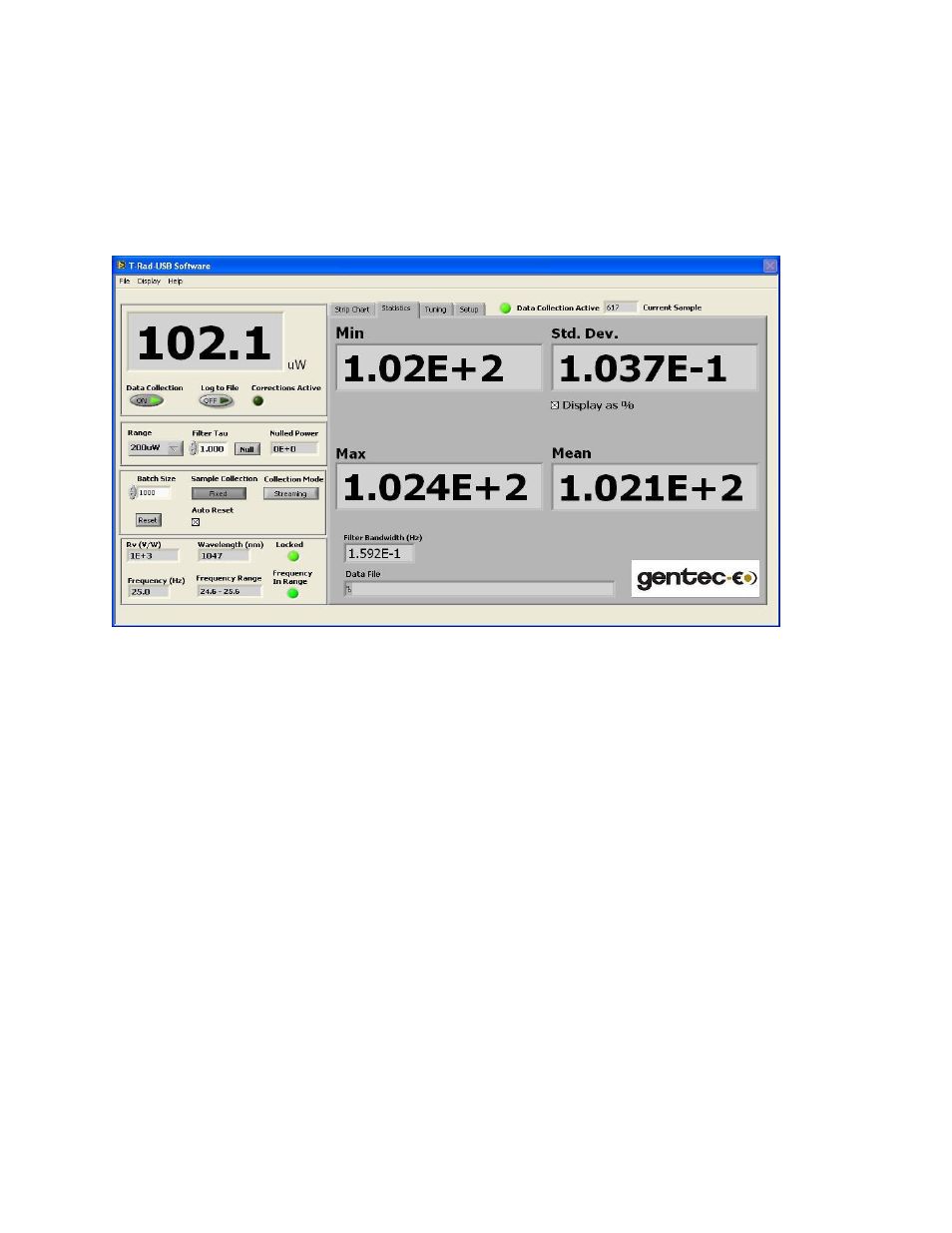

1.9 The Statistics Display
The Statistics Display is visible to the user when its tab is selected. It contains Controls and
Indicators for the statistics on the data set.
1.9.1 Statistics Controls
There is a single control on the Statistics tab; Display as %.
1.9.2 Display as %
Displays the Std. Dev. as a percentage of the Mean.
1.9.3 Statistics Indicators
The Indicators on the Statistics tab are:
Min
Max
Mean
Standard
Deviation Filter
Bandwidth
Data File
1.9.4 Min
The minimum value of the current data set. Resets with the Reset button or an auto reset when in
Fixed Sample Collection mode. Updates on each sample.
