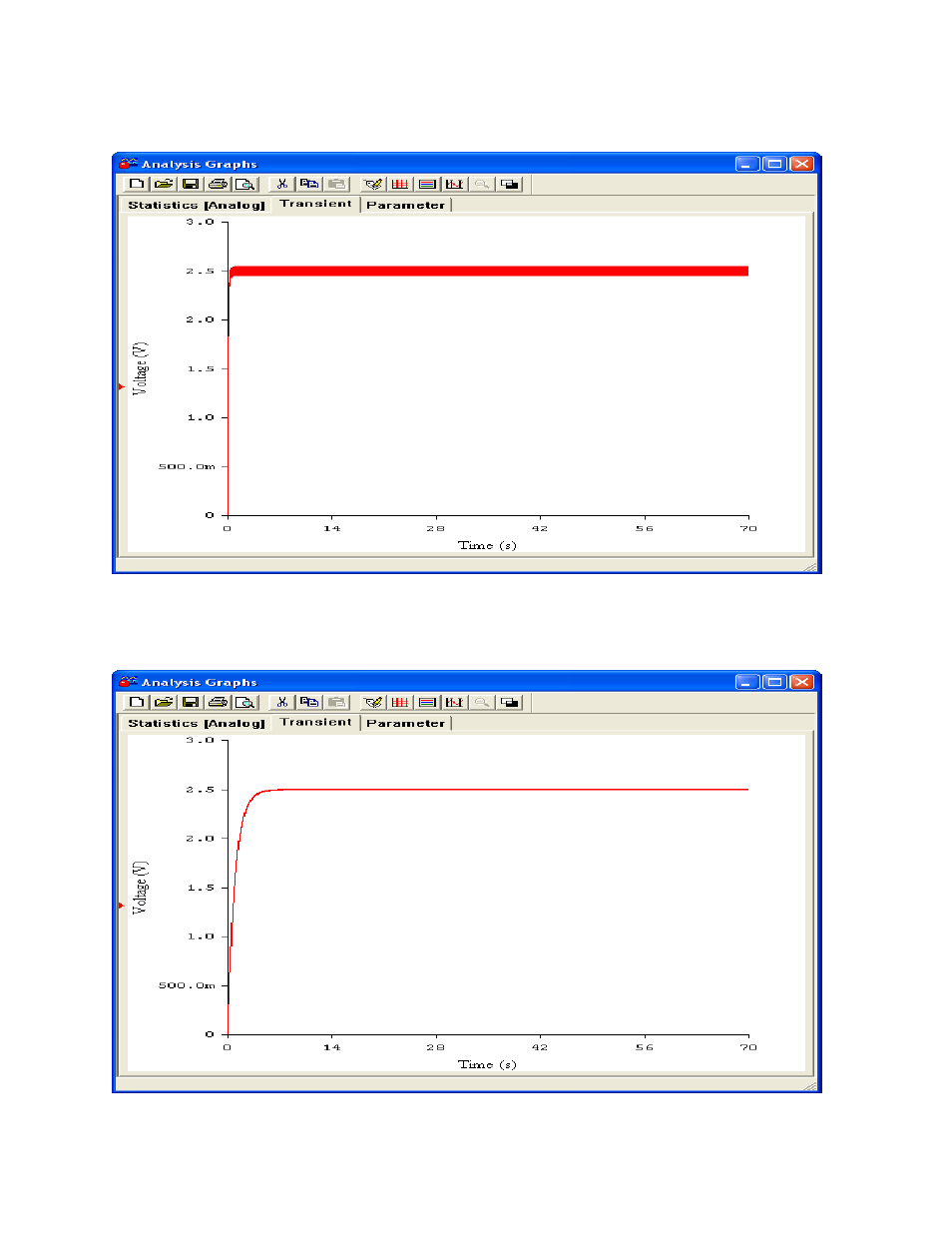

Figure 4 shows the output using a 100ms time constant. Note that the ripple is still visible on the DC level.
Figure 4 Output with 100ms Time Constant
Figure 5 shows the output using a 1s time constant. Note that the ripple is greatly
reduced.
Figure 5, Output with 1s Time Constant
