Section 1: General Information
1.1. INTRODUCTION
The Aegis Drum Scale has a one-and-
a-half inch (1½”) low profile for easy on-
and off-loading.
• Threaded half-inch (½”) holes for
inserting Eyebolts, to make the Platform
easy to move.
• Available in Mild Steel and Stainless
Steel.
• Stainless Steel Load Cells are used on all models.
─ However on the Stainless Steel Platform Models, the Load Cells have a
“true” hermetically sealed (IP69K) rating (optional on Mild Steel Models).
• The Aegis Drum Scale is used with either analog or digital weight indicators.
• Three inch (3”) high Side Rails for pallet weighing.
• The Platform is supported by four (4) 17-4ph Stainless Steel Shear Beam Load
Cells.
• Bubble Level for platform leveling confirmation.
1.1.1. Specifications
Feature Description
Platform Sizes 30” x 30” x 1-½” and 38” x 38” x 1-½”
Overall Dimensions 41” x 30” x 3” and 49” x 38” x 3”
Scale Capacities 500, 1000, 2000 and 2500 lbs.
Endloading 100% of capacity all models except 2,500 lb model which is rated at 80%.
Load Cell Excitation 5 to15 VDC
Instrument Signal Analog or Digital
Temperatures Operating: -10°C to 40°C (14°F to 104°F)
Storage: -20°C to 70°C (14°F to 158°F)
Humidity 10 to 100%, Wash-down (Stainless Steel models only)
Accuracy Platform Accuracy up to 0.02%
Power Cable Thirty cable feet (30’) of four (4) conductor interface cable; PVC jacketed.
Adjustment Limits • Scale must be level within three degrees (3°).
• Height adjustment allows for up to one-quarter inch (¼”) per foot.
Construction Mild steel with black enamel finish; Type 304 PH stainless steel, brushed.
Approvals Both Stainless Steel and Mild Steel have FM Approved Load Cells .
NTEP and CWM approvals PENDING.

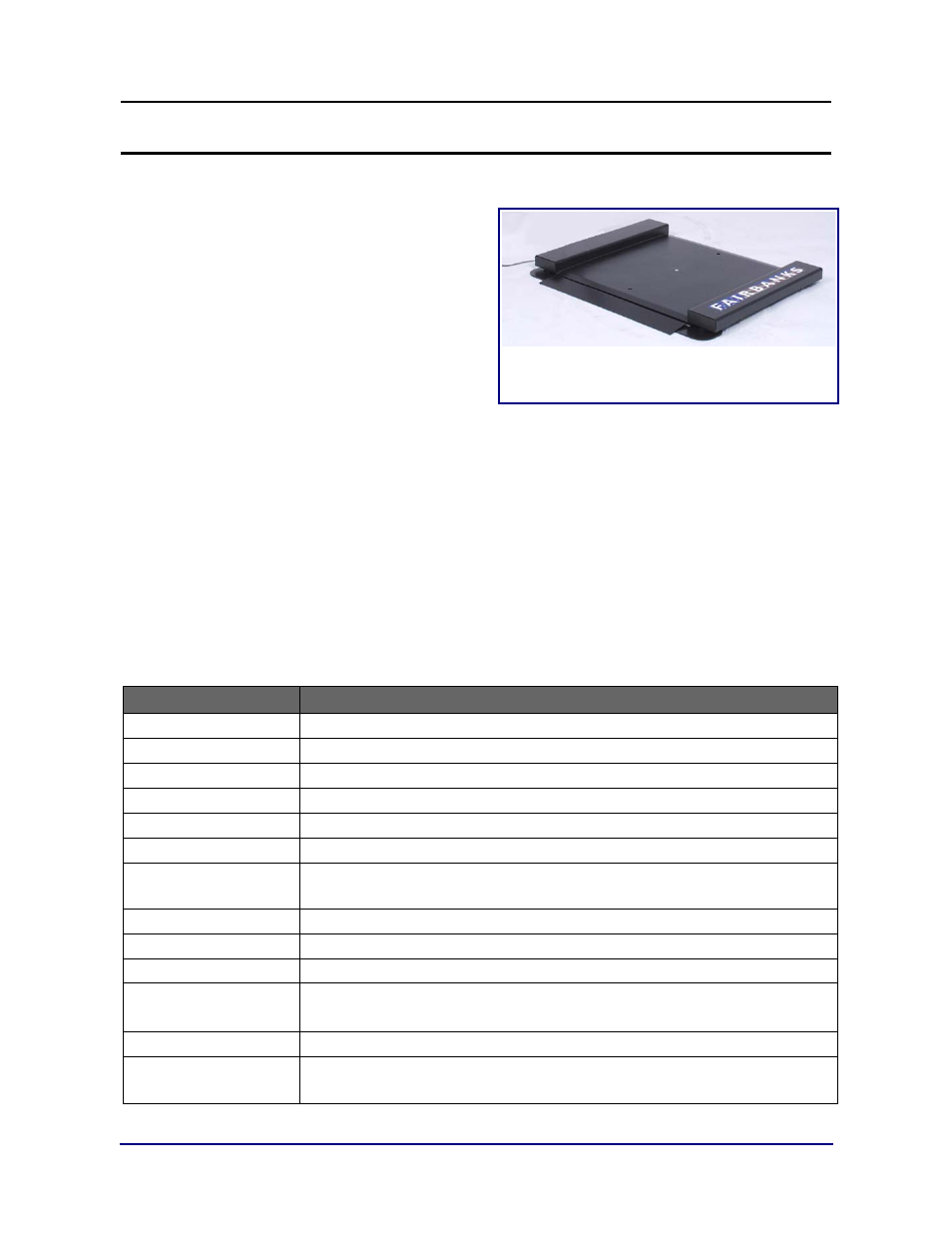

Ultra-low profile for easy on- and off-loading.
−
Shown with optional Ramp.
