Section 2: Scale Installation
04/10 17 51190 Rev. 2

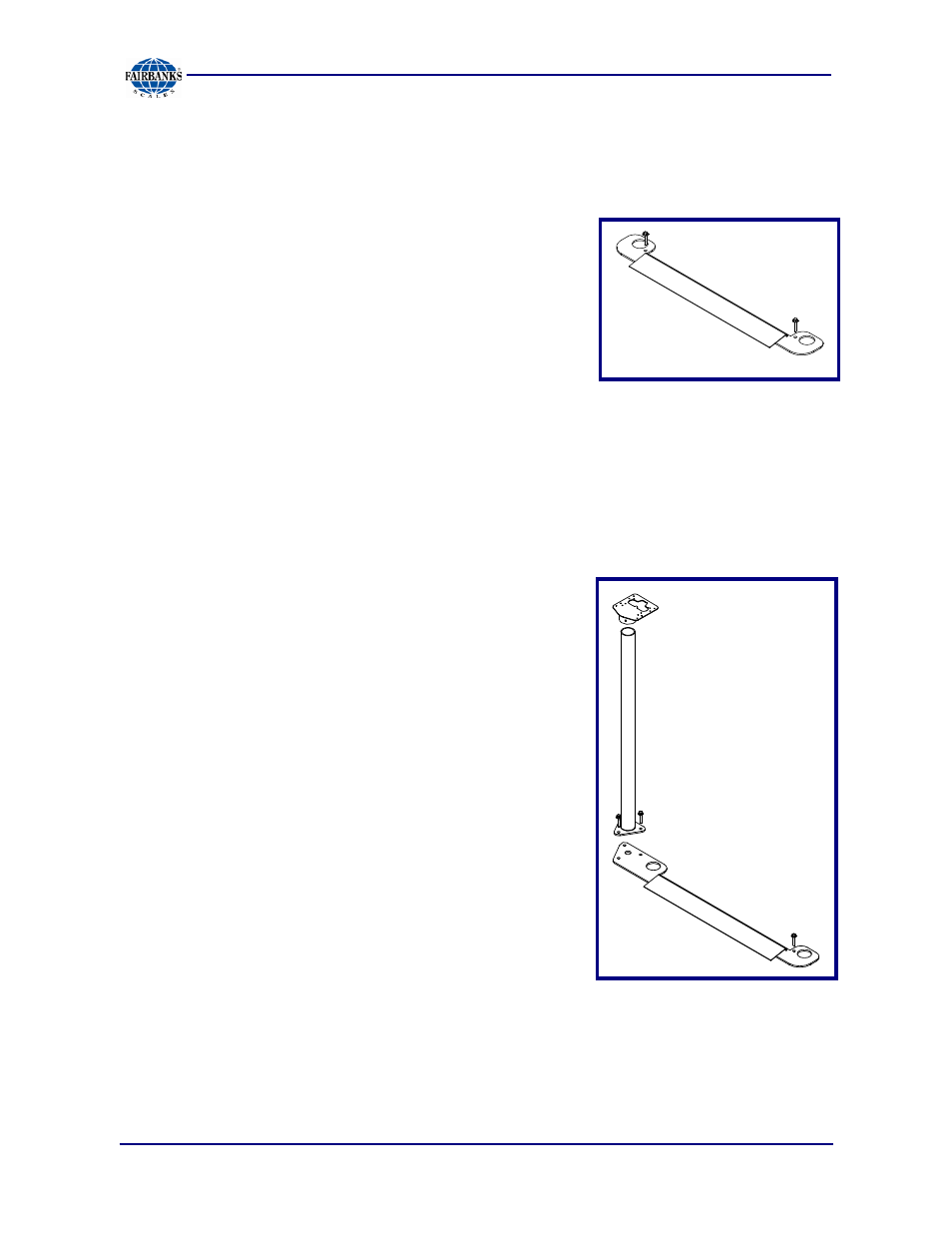

2.2.3. Installing the Ramp(s)
Each Ramp Accessory comes with Integral Bolt-down Plates and two (2)
Anchors.
1. Place the Ramp in position.
2. Drill Two (2) 7/16” holes.
─ Use a standard drill on a wood floor, and a
hammer drill on cement.
3. Screw the Ramp into the floor, using the appropriate
fastener.
4. Tighten the bolts securely.
5. Lift and set the platform feet into the Bolt-down Plate Holes.
2.2.4. Installing Ramp(s) With
Integral Pillar
Each Ramp With the Pillar Accessory comes
with Integral Bolt-down Plates and four (4) Anchors.
1. Place the Ramp in position.
2. Drill Four (4) 7/16” holes.
─ Use a standard drill on a wood floor, and a
hammer drill on cement.
3. Screw the ramp with the pillar into the floor, using
the appropriate fastener.
4. Tighten the bolts securely.
5. Lift and set the Platform Feet into the bolt-down
plate holes.
IMPORTANT TIPS
• If two ramps are installed, then no other bolt-down plates are needed.
• Only two ramps (total) may be installed per platform, and each is placed on
opposite sides.
