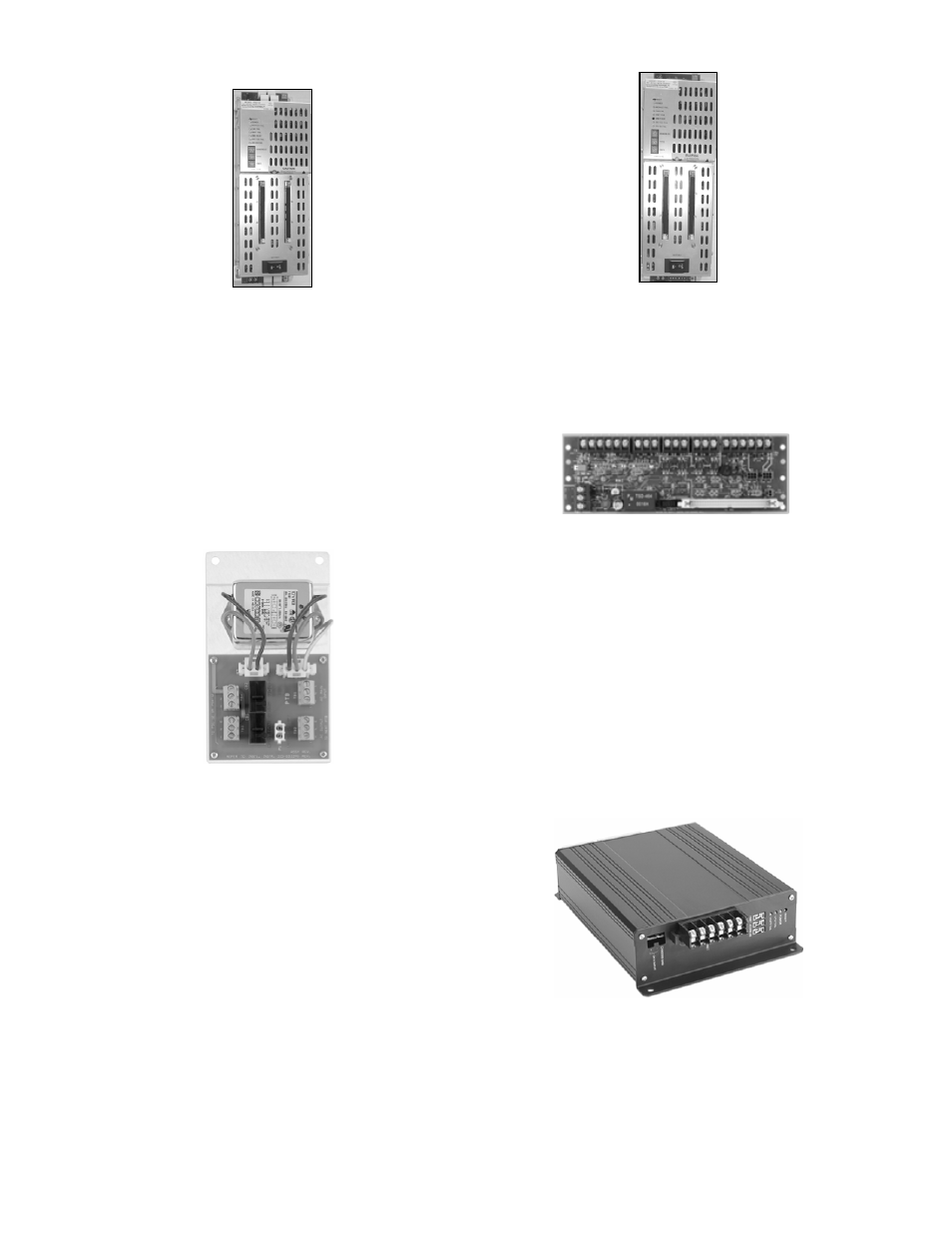

PSC-12 Power Supply Charger Module
PSC-12 Power Supply Charger Module
The Power Supply Charger Module (Model PSC-12) is a
high-current power supply that provides the FireFinder
XLS primary-regulated 24VDC power to operate. Model
PSC-12 is rated at 12Amps (Alarm) / 5Amps (Standby), and
has a built-in battery charger, capable of charging up to 100
AH batteries. Model PSC-12 is an addressable-intelligent,
microprocessor-controlled module that communicates its
status to the system-operator interface (PMI). Model PMI is
able to query the status of the power supply to obtain
information regarding system-charging current, terminal-
loading information, ground-fault conditions and more.
PTB Power Termination Board
PTB Power Termination Board
The PSC-12 comes packaged with a module called the
Power Termination Board (Model PTB). Model PTB is
required for operation with Model PSC-12. Model PTB filters
the power from the incoming AC mains, and distributes it
to the Model PSC-12 power supply and the optional Model
PSX-12 power-supply extender.
Model PTB has an optional connector that can be used during
system installation, commissioning and service to provide
the technician with a place to plug in their laptop PC, if
required. Model AC-ADPT is an optional accessory cable that
allows connection on one side to Model PTB, via a keyed
connector and on the other end directly into to the laptop's
transformer.
Most laptop-computer external power transformers have
removable AC power cords, which can be replaced by the
optional Model AC-ADPT to temporarily provide an AC
power source for laptop-PC usage during system
installation, service and maintenance calls when needed.
PSX-12 Power Supply Extender
PSX-12 Power Supply Extender
The Power Supply Extender (Model PSX-12) is a high-current,
auxiliary power supply that expands the main Model PSC-12
power supply and battery charger of the FireFinder XLS
system with an additional 24VDC power. Model PSX-12
is rated at 12 Amps.
RNI Remote Network Interface
RNI Remote Network Interface
The Remote Network Interface (Model RNI) provides a
connection point for use with equipment mounted in a
remote-lobby enclosure on the FireFinder XLS FACP. Model
RNI is used to provide additional input, output and control
features to the system remotely, via the main control panel.
These additional features may include control switches and
indicators: (Models SCM-8, LCM-8 and FCM-6), remote-
emergency paging microphones or telephones: (Models
LVM, FMT), or controls used in graphic annunciators (Models
SIM16, OCM-16) or system-status display with the ability to
acknowledge alarms, silence audibles and reset the
system (Model SSD-C-REM). Model RNI allows Model
PMI to be mounted in the Model REMBOX2 or Model
REMBOX4 remote lobby enclosure.
RPM Remote Printer Module
RPM Remote Printer Module
The Remote Printer Module (Model RPM) provides a means
of connecting the FireFinder XLS system to a printer, such
as Model PAL-1, for creating a hard copy of system status and
configuration reports. Simultaneously, Model RPM
provides an output port that can be configured to
communicate with external systems.
